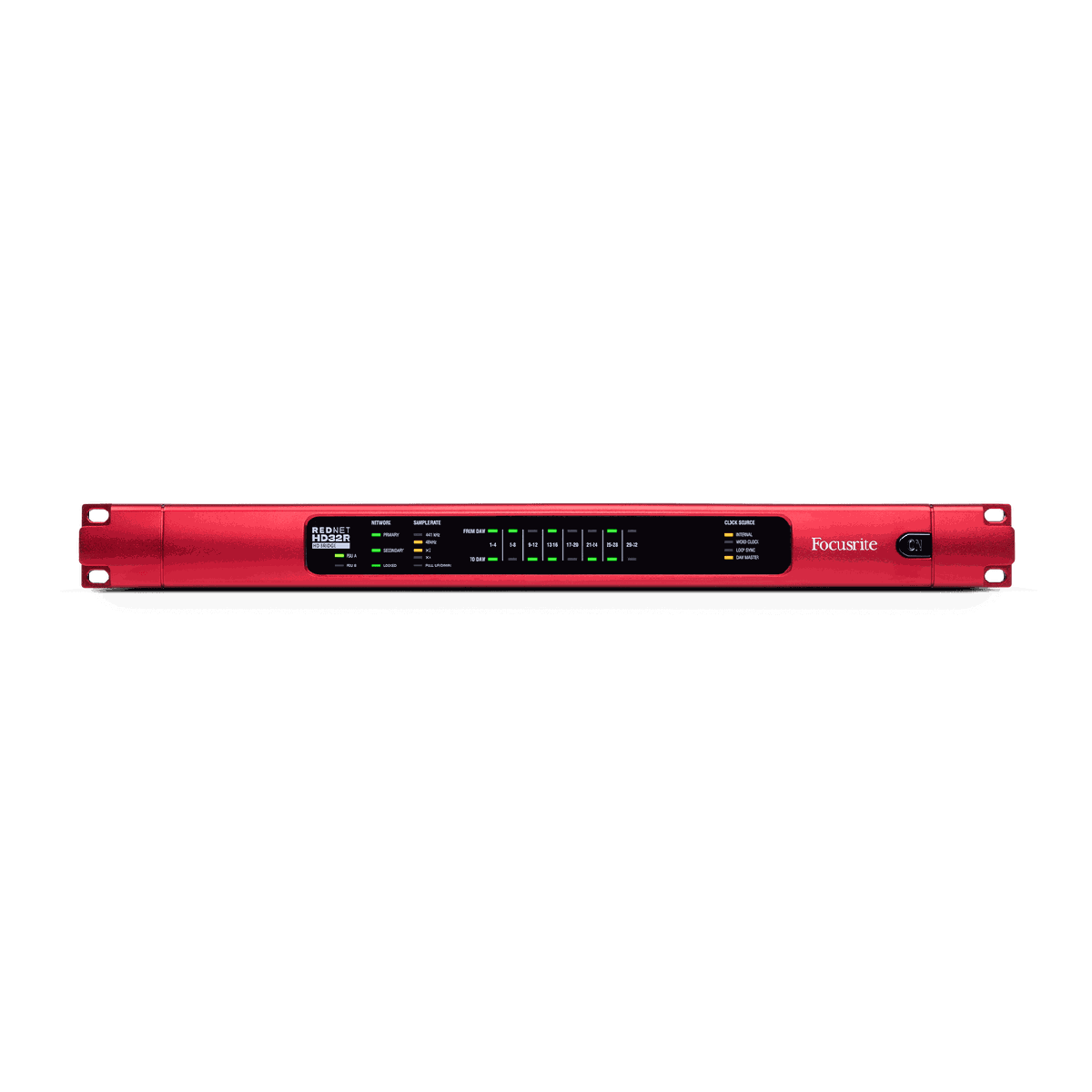

Focusrite RedNet HD32R 32-Channel Pro Tools HD Dante Interface
RedNet HD32R is the bridge between Pro Tools HD and Dante. Two Mini DigiLink ports connect to the HD system and carry 32 channels in and 32 out at rates up to 96 kHz, halving to 16 by 16 at 176.4 and 192 kHz. From the network side the HD rig simply appears as another Dante device.
The 1U chassis carries two etherCON network ports and a BNC word clock input and output, so it can lock to house clock or provide it. Two IEC inlets feed redundant power supplies with retaining clips, which is the reason this unit and not a desktop adapter ends up in a machine room.
| Channel Count | 32 x 32 up to 96 kHz; 16 x 16 at 176.4 and 192 kHz |
|---|---|
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz at 24-bit |
| Pro Tools Connectivity | 2 x Mini DigiLink |
| Network | 2 x etherCON Dante |
| Word Clock | BNC input and output |
| Power | Dual PSUs, 2 x IEC inlets with retaining clips |
| Format | 1U rack |
| Manufacturer Part Number | RedNet HD32R |
