Focusrite RedNet A16R MkII 16-Channel Analogue Dante Interface
RedNet A16R MkII is the bidirectional analogue bridge in the RedNet range: sixteen line inputs and sixteen line outputs between a Dante network and the analogue world, with a further two channels of AES3 for a digital source that has not been networked yet. Conversion is rated at 119 dB of dynamic range and runs to 192 kHz at 24-bit.

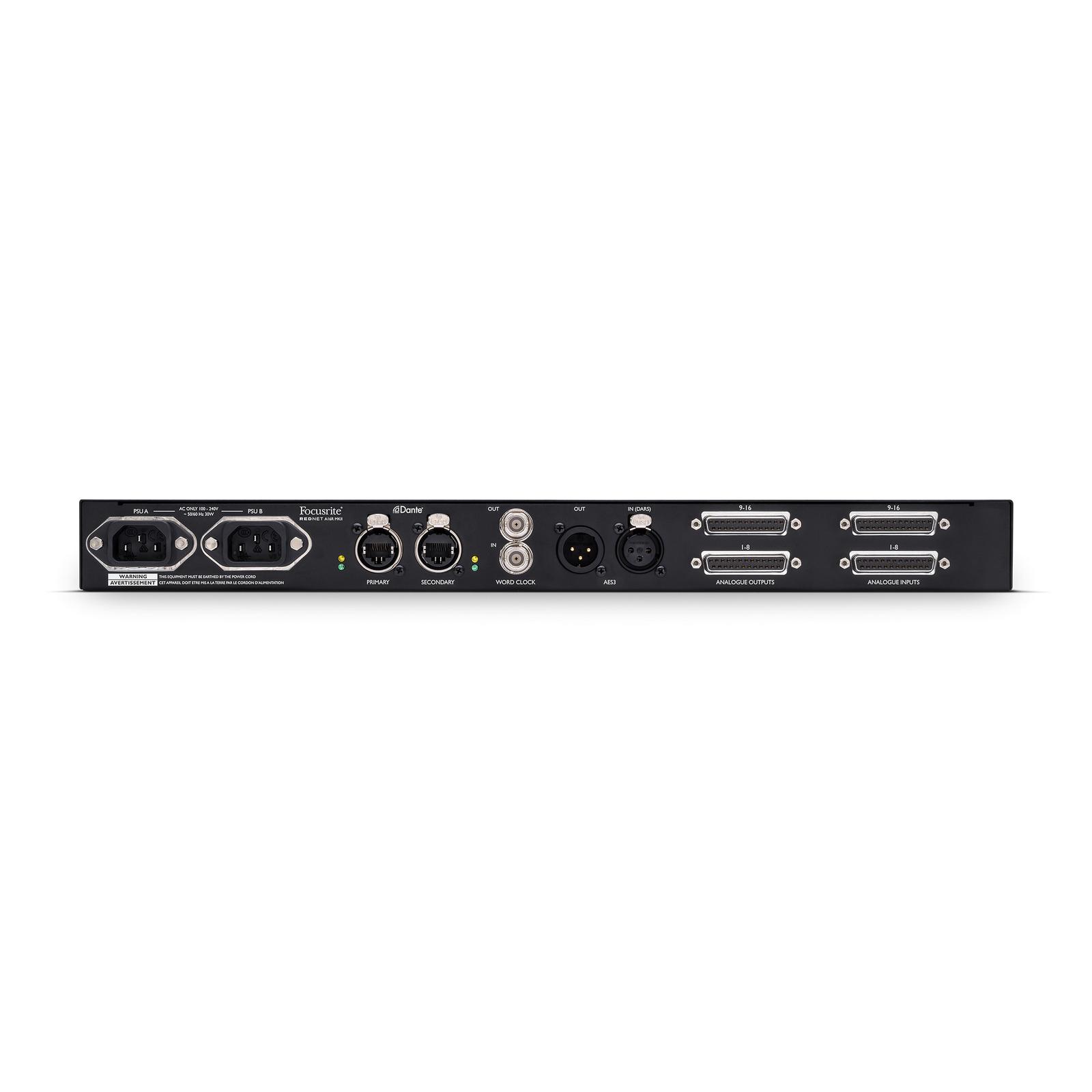

Everything about the 1U chassis is built for a rack that has to stay up: two power supplies on locking IEC inlets, and two etherCON network ports for a redundant Dante link. Analogue I/O lands on four DB-25 connectors, AES3 on XLR, and word clock in and out on BNC.
| Channels | 16 analogue in / 16 analogue out, plus 2 AES3 |
|---|---|
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz at 24-bit |
| Dynamic Range | 119 dB |
| Analogue Connectors | 4 x DB-25 |
| Digital Connectors | 2 x XLR AES3, 2 x BNC word clock |
| Network | 2 x etherCON, redundant Dante |
| Power | Dual PSUs with locking IEC inlets |
| Format | 1U rack |
| Manufacturer Part Number | RedNet A16R MkII |
