Focusrite RedNet D64R 64-Channel MADI Dante Bridge
RedNet D64R is the MADI bridge in the RedNet range. It carries 64 channels in each direction between a MADI system and a Dante network at 44.1 or 48 kHz, halving to 32 channels at 96 kHz and 16 at 192 kHz in the usual way MADI channel counts scale with rate.

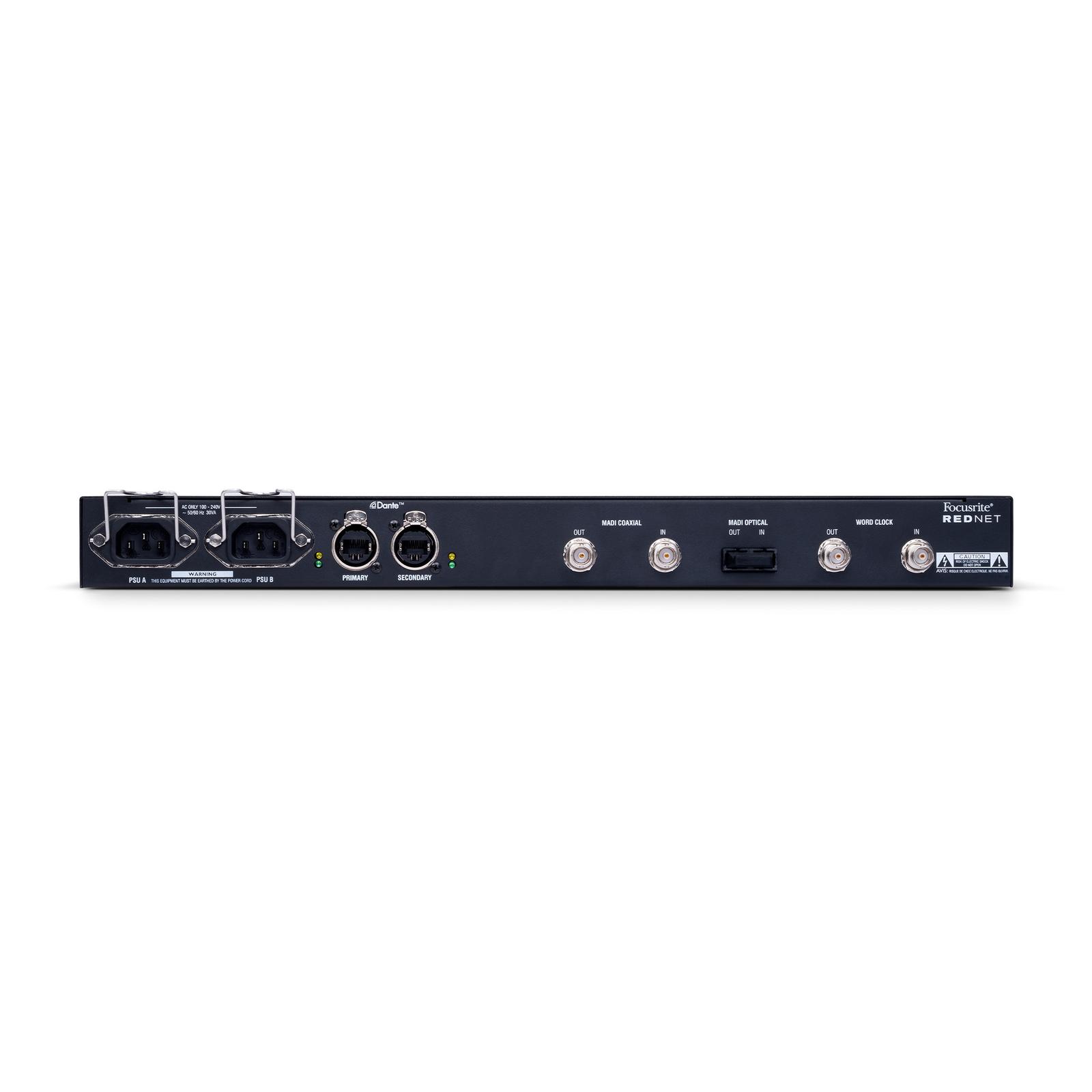

Both MADI connector types are on the rear, dual BNC coaxial and SC-Duplex optical, so it drops into an existing plant without an adapter. Word clock in and out is on BNC and the Dante side uses two etherCON ports. Two IEC inlets with retaining clips feed redundant power supplies with fault detection, in a 1U chassis.
| Channels | 64 bidirectional at 44.1 / 48 kHz; 32 at 96 kHz; 16 at 192 kHz |
|---|---|
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz at 24-bit |
| MADI Connectors | Dual BNC coaxial and SC-Duplex optical |
| Word Clock | BNC input and output |
| Network | 2 x etherCON Dante |
| Power | Dual IEC inlets with retaining clips and fault detection |
| Format | 1U rack |
| Manufacturer Part Number | RedNet D64R |
