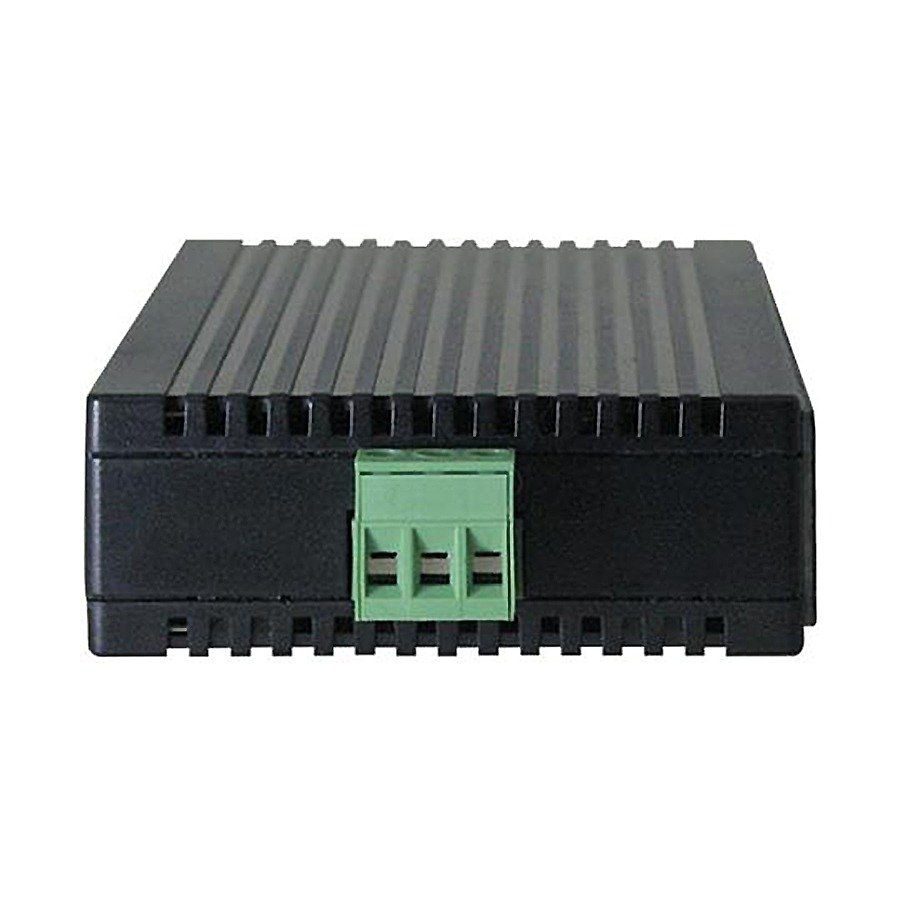

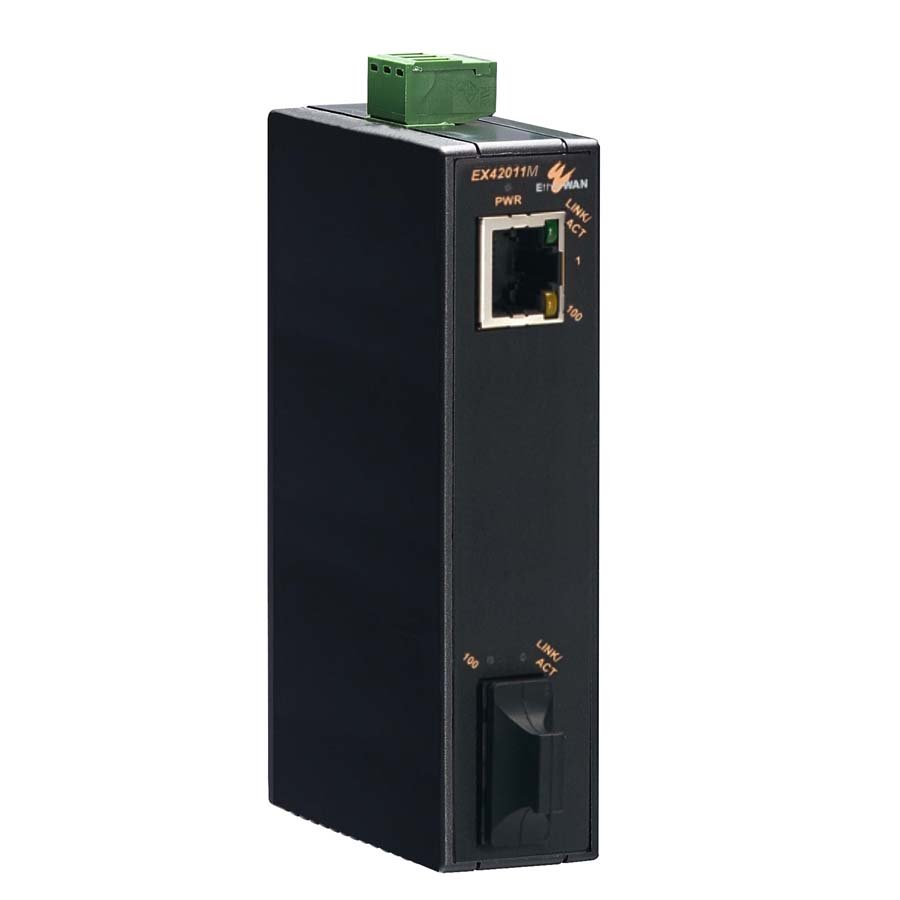

EtherWAN EX42011 10/100BASE-TX to 100BASE-FX Industrial Media Converter with 4kV surge protection

The EtherWAN EX42011 is a 10/100BASE-TX to 100BASE-FX Industrial Media Converter with 4kV surge protection. It is ordered in 5 fibre configurations: Multi Mode (SC) - 2Km (1310nm); Multi Mode (ST) - 2Km (1310nm); Single Mode (SC) - 20Km (1310nm); Single Mode (ST) - 20Km (1310nm); Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km.

EtherWAN publishes input 12 to 48VDC (Terminal Block), operating temperature -10 to 60°C (14 to 140°F); Tested @ -20 to 70°C (-4 to 158°F), dimensions 26 x 70 x 110mm (W x D x H); (1.02" x 2.76" x 4.33"). Ordered as EtherWAN part number EX42011-1A-1-A / EX42011-1B-1-A / EX42011-2A-1-A / EX42011-2D-1-A / EX42011-2E-1-A. Specifications and photography as published by EtherWAN at etherwan.com/products/ex42011-series.

Ethernet Ports	10/100BASE-TX: 1 ports; 100BASE-FX: 1 ports
Standards	IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX and 100BASE-FX; IEEE 802.3x Full duplex and flow control
Input	12 to 48VDC (Terminal Block)
Power Consumption	1.82W Max.; 0.14A@12VDC,; 0.07A@24VDC; 0.038A@48VDC
Operating Temperature	-10 to 60°C (14 to 140°F); Tested @ -20 to 70°C (-4 to 158°F)
Dimensions	26 x 70 x 110mm (W x D x H); (1.02" x 2.76" x 4.33")
Weight	0.2Kg (0.44bs.)
Installation	DIN-Rail (top hat type 35mm) or panel mounting
