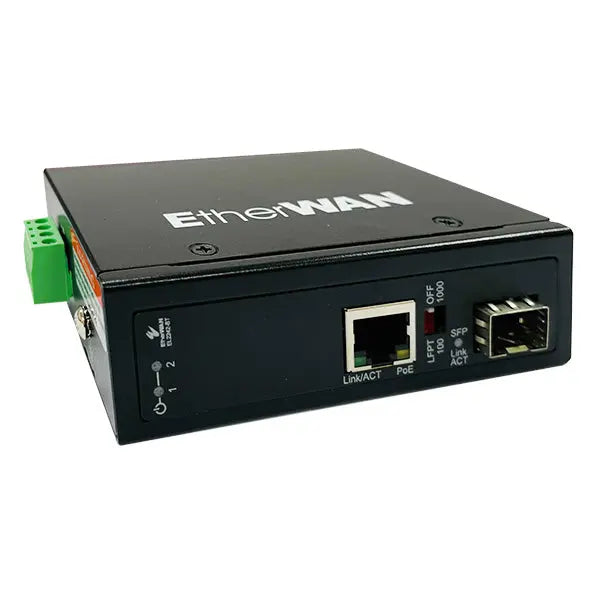

EtherWAN EL2242-BT Hardened Gigabit 90W PoE Media Converter

EtherWAN EL2242-BT Hardened Gigabit 90W PoE Media Converter converts copper Ethernet to fiber at the edge of the plant, so a run can leave the building without a repeater. Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is aluminum, rated IP30.

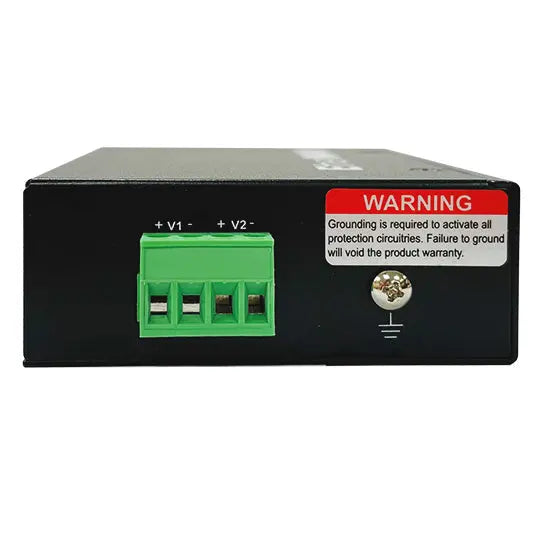

One orderable part number, EL2242-BT, listed at the current dealer price. Installation is din-rail mounting or wall mounting. Power input: 52-56VDC redundant (terminal block). Specifications above are taken from the EtherWAN datasheet for this family.

Power Consumption	2W @ 52VDC, without PoE
Casing Material	Aluminum
IP Rating	IP30
Dimensions	32 x 81.5 x 103.5mm (W x D x H) \| 1.26" x 3.21" x 4.07"
Weight	0.68kg (1.5lbs)
Installation Type	DIN-rail mounting or wall mounting
Operating Temp.	-40 to 75 deg C (-40 to 167 deg F)
Storage Temp.	-45 to 85 deg C (-49 to 185 deg F)
