EtherWAN EL8020 Series Hardened 10/100/1000BASE-TX to 100/1000 SFP Media Converter

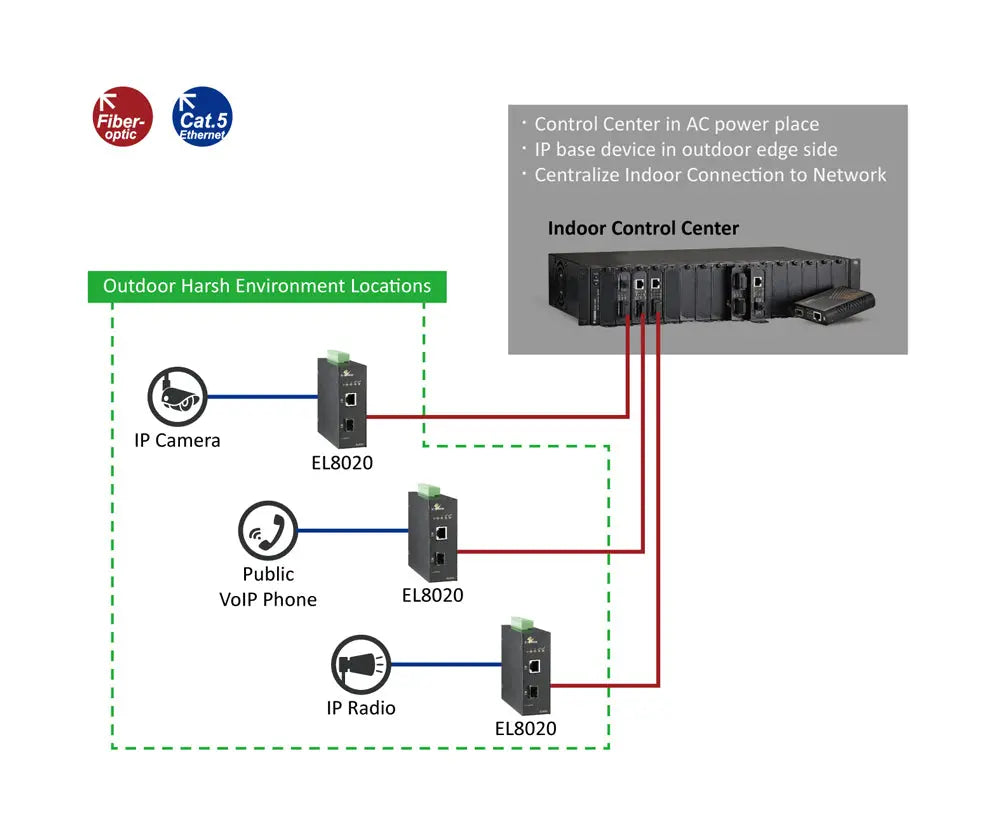

EtherWAN EL8020 Series Hardened 10/100/1000BASE-TX to 100/1000 SFP Media Converter converts copper Ethernet to fiber at the edge of the plant, so a run can leave the building without a repeater. The housing is aluminum case.

One orderable part number, EL8020-V1E, listed at the current dealer price. Installation is din-rail. Power input: 12-48VDC. Specifications above are taken from the EtherWAN datasheet for this family.

Power Consumption	0.912W Max \| 76mA@12VDC \| 38mA@24VDC \| 19mA@48VDC
Casing	Aluminum Case
Dimensions	35.8mm x 90mm x 100mm (W x D x H) \| 1.41" x 3.54" x 3.94"
Weight	0.23Kg (0.51lbs.)
Installation	DIN-Rail
