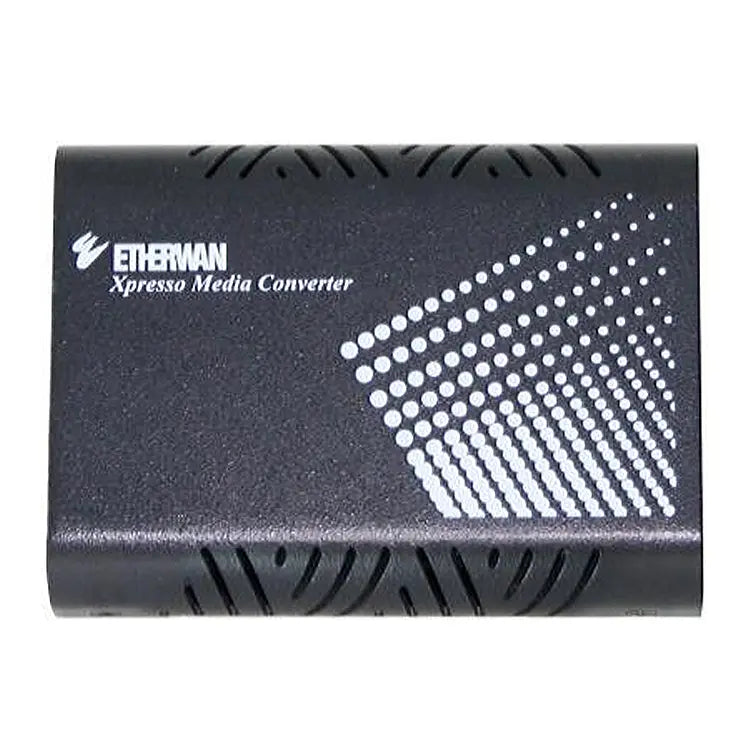

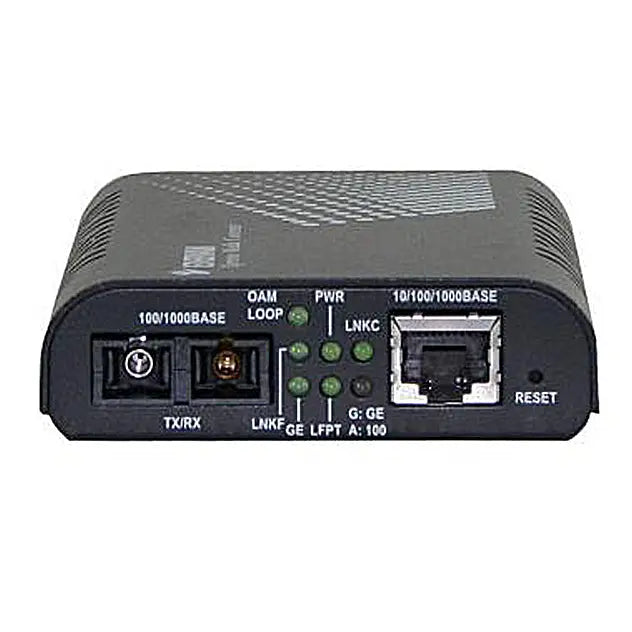

EtherWAN EL2211 Series 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

EtherWAN EL2211 Series 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter converts copper Ethernet to fiber at the edge of the plant, so a run can leave the building without a repeater. Operating temperature is rated at 0 to 50 deg C (32 to 122 deg F). The housing is aluminum.

This page carries the 4 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is wall mounting, or in emc1600 chassis system. Power input: 12VDC. Specifications above are taken from the EtherWAN datasheet for this family.

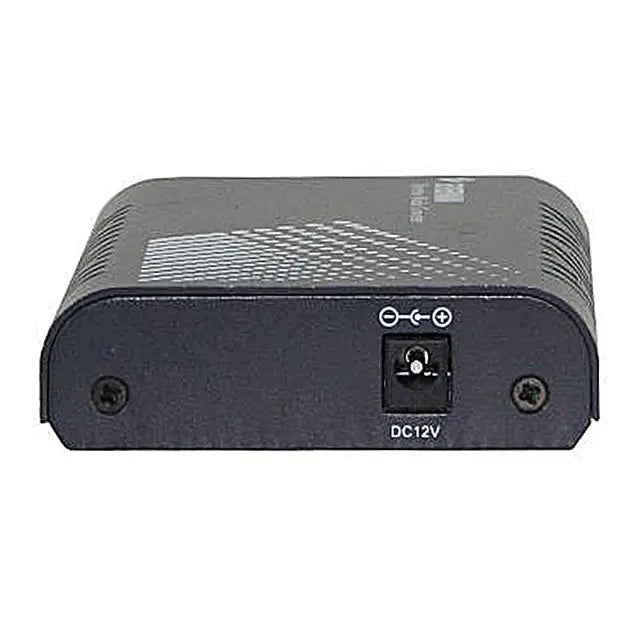

Power Consumption	1.8W Max. 0.15A@12VDC
Casing Material	Aluminum
Dimensions	80.3 x 109.2 x 23.8mm (W x D x H) \| 3.16" x 4.30" x 0.94"
Weight	0.15kg (0.33lbs)
Installation Type	Wall mounting, or in EMC1600 Chassis System
Operating Temp.	0 to 50 deg C (32 to 122 deg F)
Storage Temp.	-10 to 70 deg C (-14 to 158 deg F)
Relative Humidity	5% to 95% (non-condensing)
