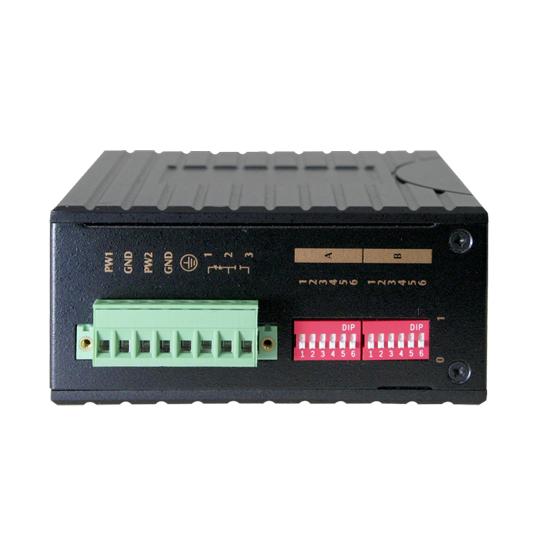

EtherWAN EL1142 2-Port 10/100BASE-TX +2-Port 100BASE-FX IEC 61850-3/IEEE 1613 Hardened Media Converter

The EtherWAN EL1142 is a 2-Port 10/100BASE-TX +2-Port 100BASE-FX IEC 61850-3/IEEE 1613 Hardened Media Converter. This part number is the Multi Mode (ST) - 2Km (1310nm) configuration.

EtherWAN publishes input 12-48VDC, operating temperature -40 to 75°C (-40 to 167°F), dimensions 50 x 110 x 135mm (W x D x H); (1.97" x 4.33" x 5.31"). Ordered as EtherWAN part number EL1142-20B. Specifications and photography as published by EtherWAN at etherwan.com/products/el1142-series.

Ethernet Ports	10/100BASE-TX: 2 ports; 100BASE-FX: 2 ports
Standards	IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T
Input	12-48VDC
Power Consumption	5.28W Max., 12~48VDC, 0.4~0.11A
Operating Temperature	-40 to 75°C (-40 to 167°F)
Dimensions	50 x 110 x 135mm (W x D x H); (1.97" x 4.33" x 5.31")
Weight	1.2kg (2.64lbs.)
Installation	DIN-Rail (top hat type 35mm) or panel mounting
