EtherWAN EL100 Series Fast Ethernet to Fiber Media Converter

Name: EtherWAN EL100 Series Fast Ethernet to Fiber Media Converter
Brand: EtherWAN
SKU: EL100C
Availability: InStock

$120.45

EL100C

Choose an option

EL100 Series Fast Ethernet to Fiber Media Converter, rated 0 to 45 deg C (32 to 113 deg F).

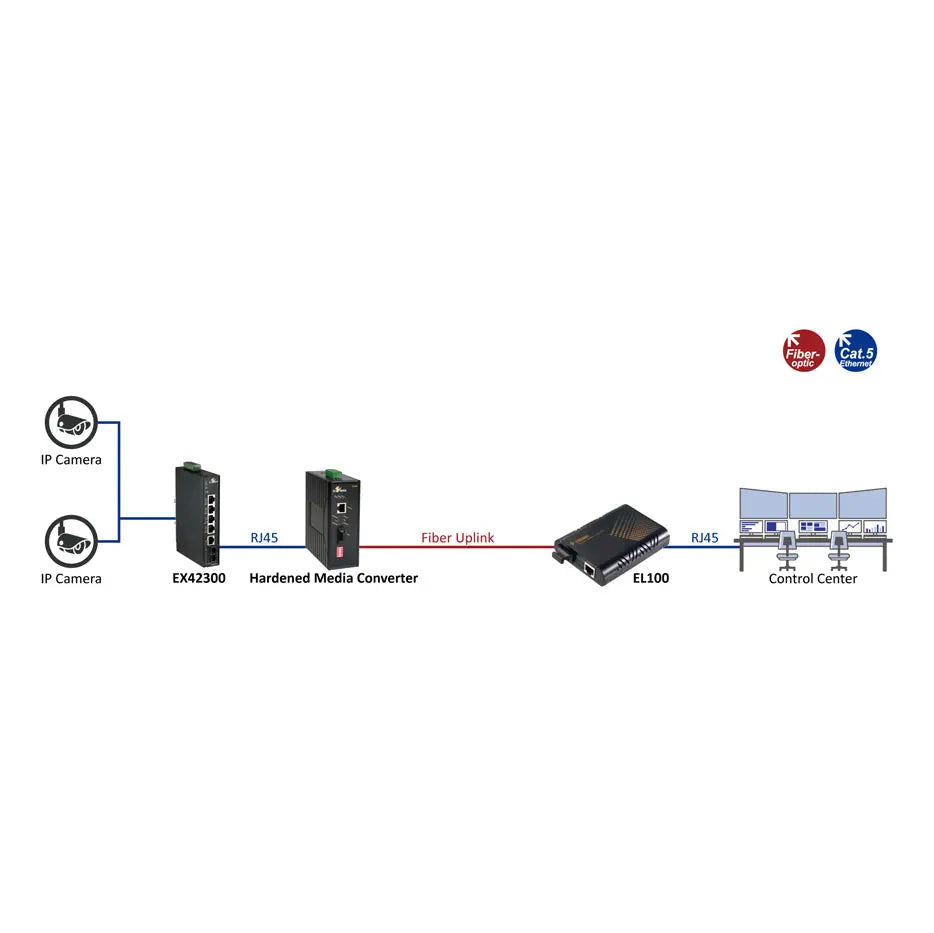

EtherWAN EL100 Series Fast Ethernet to Fiber Media Converter converts copper Ethernet to fiber at the edge of the plant, so a run can leave the building without a repeater. Operating temperature is rated at 0 to 45 deg C (32 to 113 deg F). The housing is aluminum.

This page carries the 5 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is wall mounting, or in emc1600 chassis system. Power input: 12VDC. Specifications above are taken from the EtherWAN datasheet for this family.

Power Consumption	1.92W max. 0.16A@12VDC
Casing Material	Aluminum
Dimensions	80.3 x 109.2 x 23.8mm (W x D x H) \| 3.16" x 4.30" x 0.94"
Weight	0.15kg (0.33lbs)
Installation Type	Wall mounting, or in EMC1600 Chassis System
Operating Temp.	0 to 45 deg C (32 to 113 deg F)
Storage Temp.	-10 to 70 deg C (-14 to 158 deg F)
Relative Humidity	5% to 95% (non-condensing)
