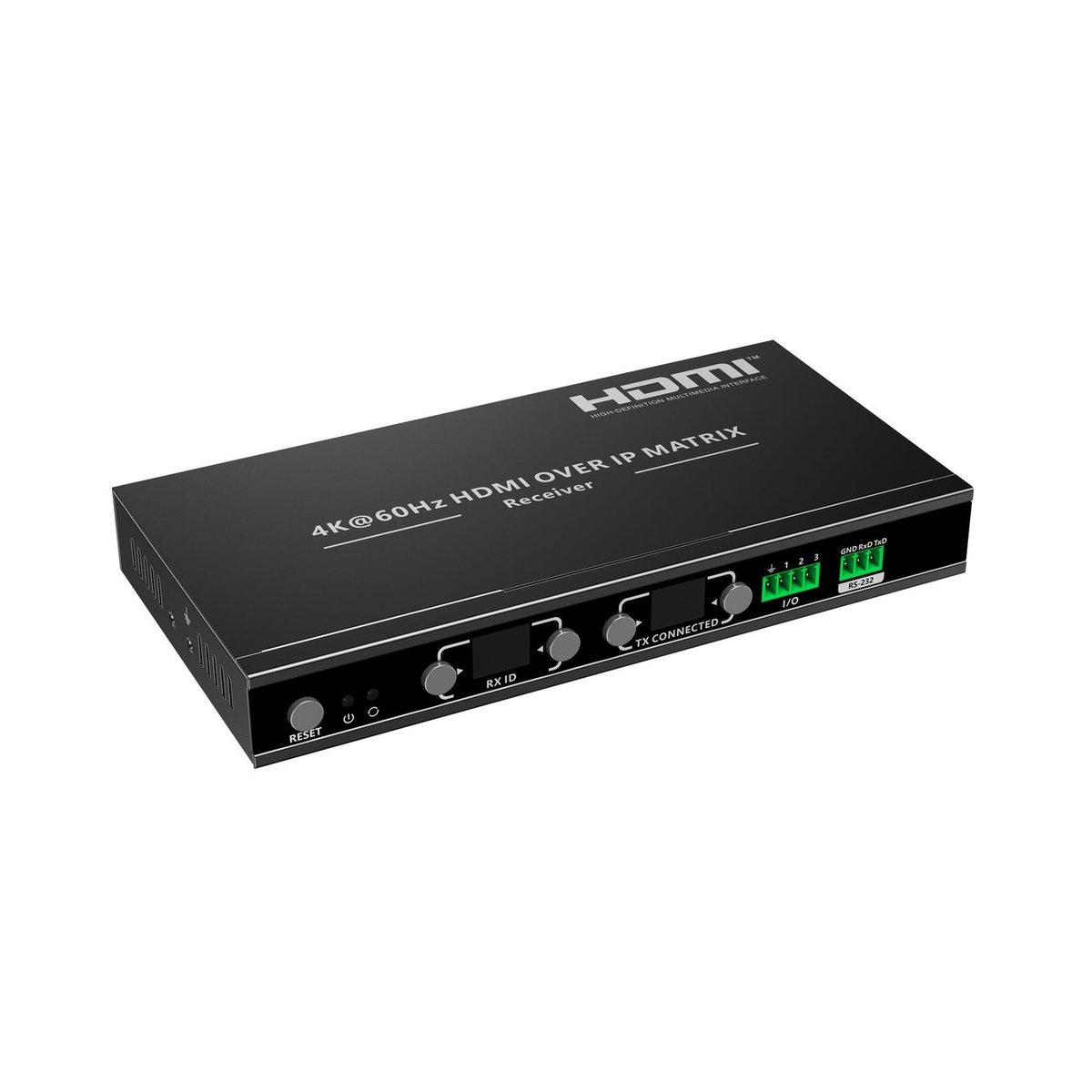

DVDO H265-4KDEC-1 AV over IP H.265 4K60 Decoder

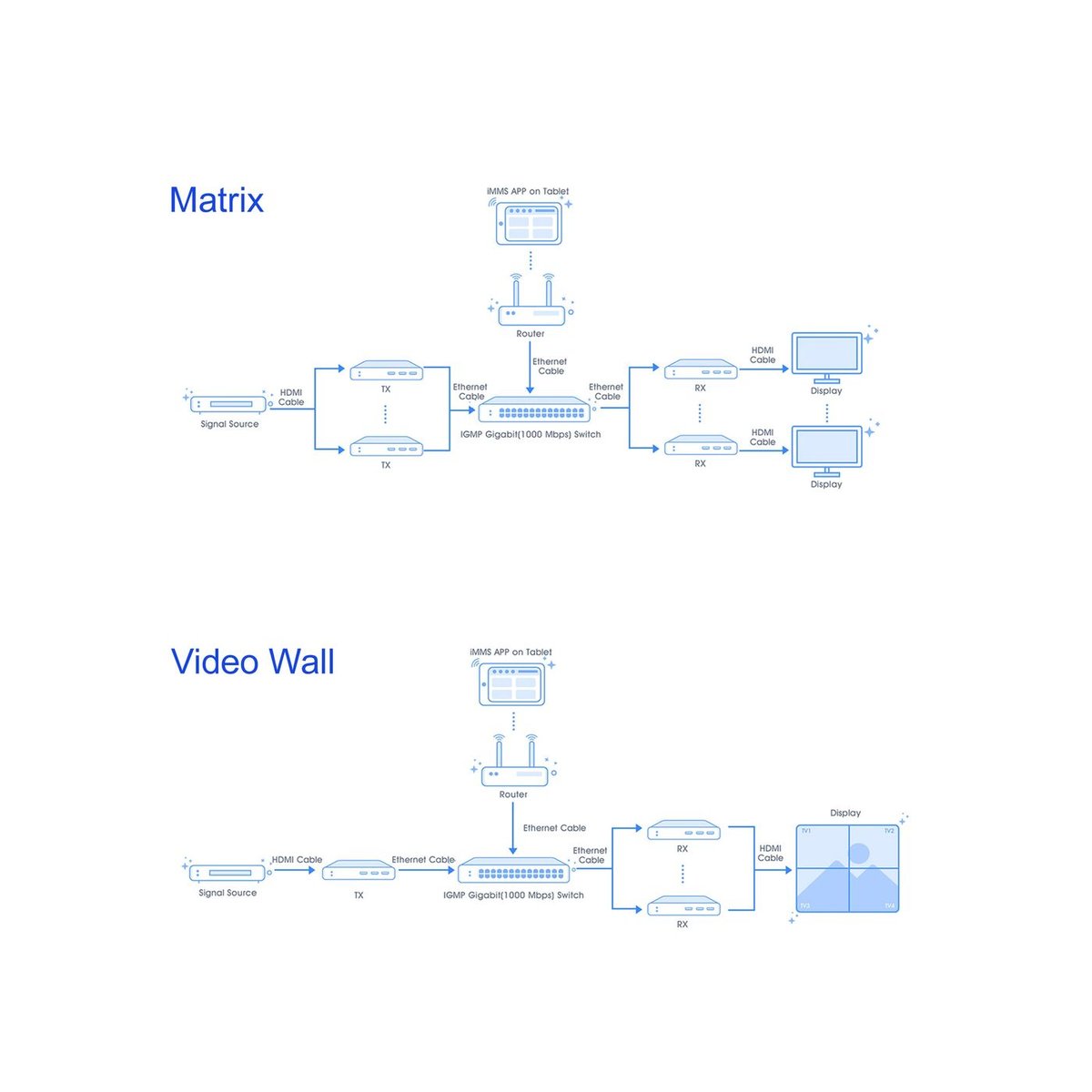

These are the display-end units of DVDO's H.265 AV over IP system, working with H265-4KENC-1 encoders across one-to-one, one-to-many and many-to-many layouts. Both run HDMI 2.0 with HDCP 2.2, decode with low latency, and scale into a system of up to 256 encoders and 256 decoders. Both are PoE powered over the same Cat6 cable that carries the stream, up to 120 m, with lightning, surge and ESD protection for 24/7 operation.

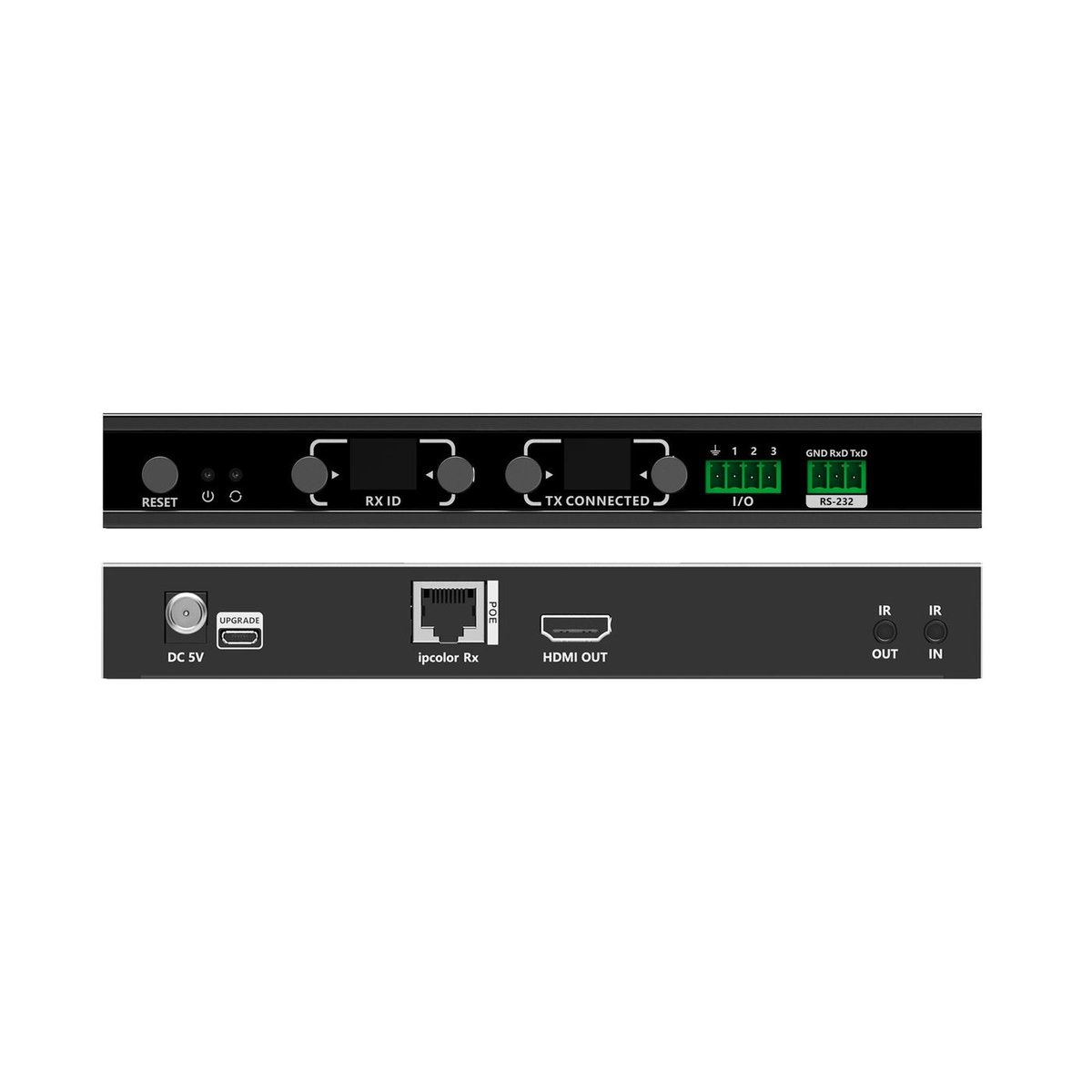

The two versions differ in what they can put on one screen. The H265-4KDEC-1 handles video wall splicing up to 5x5 and decodes to 3840 x 2160 at 60 Hz, with front panel buttons alongside app control and bi-directional IR, RS-232 and I/O pass-through. The H265-4KDEC-MV-1 instead offers multiview, including picture-in-picture, picture-by-picture, 2x2, 3x3 and custom layouts, decodes to 4096 x 2160 at 60 Hz, adds audio de-embedding on a 3.5 mm L/R output, and extends the control pass-through to RS-485. Both are managed from a free iOS or Android app with real-time preview.
