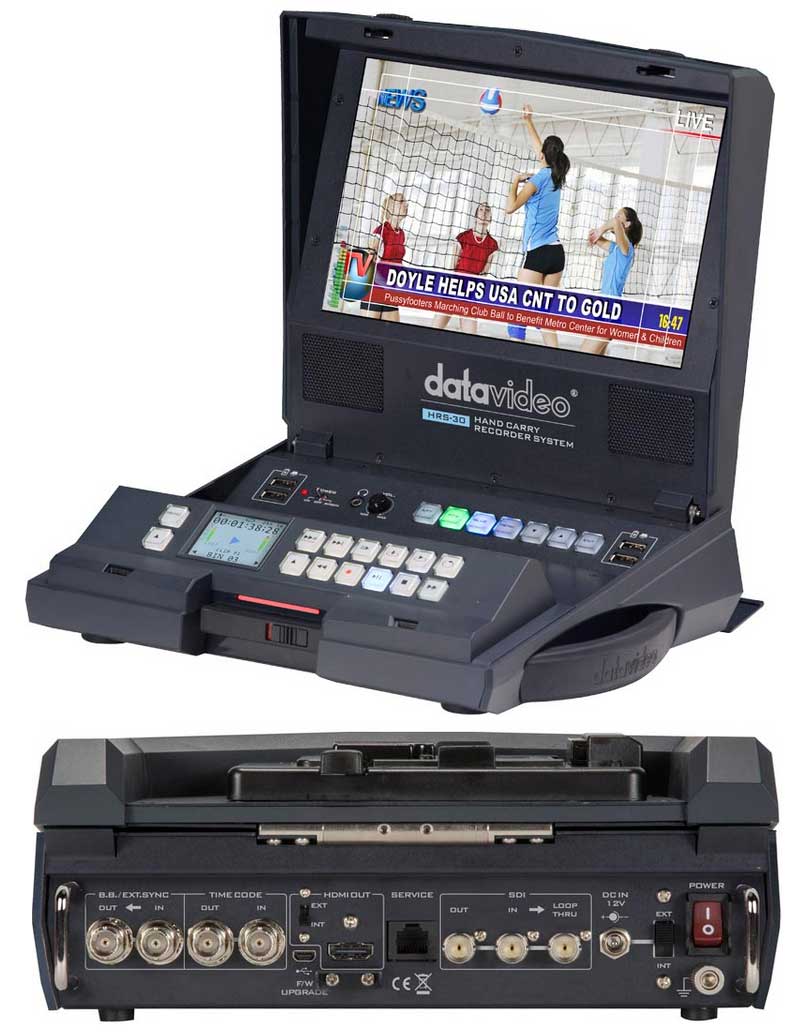

Datavideo HRS-30 HD-SDI Recorder
with Integrated 10" Monitor

The HRS-30 is a portable recorder with an integrated 10.1" monitor that can be used as a field recorder and also a playback system.

The HRS-30 records from both HD and SD video equipment via HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats, providing a choice of recording formats in MEPG-II Long-GOP or intra-frame (i-frame) with 4:2:2 colour sampling.

The recorded MXF/OP1A file format is compatible with a wide range of NLE and play out systems.

Recorded files are stored to a removable caddy which is compatible with 2.5" HDD & SSD drives.

Recorder Features:

• Removable hard drive
• Support NTFS format, no 2GB/4GB file limitation
• HD/SD SDI input, output and loop thru with embedded audio
• HDMI output with embedded audio
• Video resolutions:
  • - 1920x1080 23.97p/24p
  • - 1920x1080 50i/59.94i/60i
  • - 1280x720 50P/59.94P/60P
  • - 720x576i or 720x480i
• SD mode recording:
  • - Selectable 8,15,30 or 50 Mbps Long GOP 4:2:0 or 4:2:2
  • - 100/125Mbps i-frame 8-bit 4:2:2
• Recording file formats: MXF/OP1A, MOV quick time*
• V mount Battery and Anton Bauer battery support.

Monitor Features:

• Wide view angle colour TFT LCD display for OSD operation
• 10.1" 16:9 monitor resolution : 1280 x 800 dots
• 10.1" Dot pitch : 0.0565W x 0.1695H mm
• Internal color bar
• Blue only
• Audio indicator
• Safe area
• Time code display
• Color temperature adjustment
• NTSC/PAL auto switching

Included items:

• 1x HRS-30 Unit
• 1x AD Switch 12V
• 1x Thank You Card
• 1x Hard Drive Fixed Module
• 4x Screw
• 1x USB Light
• 1x SATA to USB Cable
• 1x 2.5" HDD Bag

HRS-30 Spec Sheet
