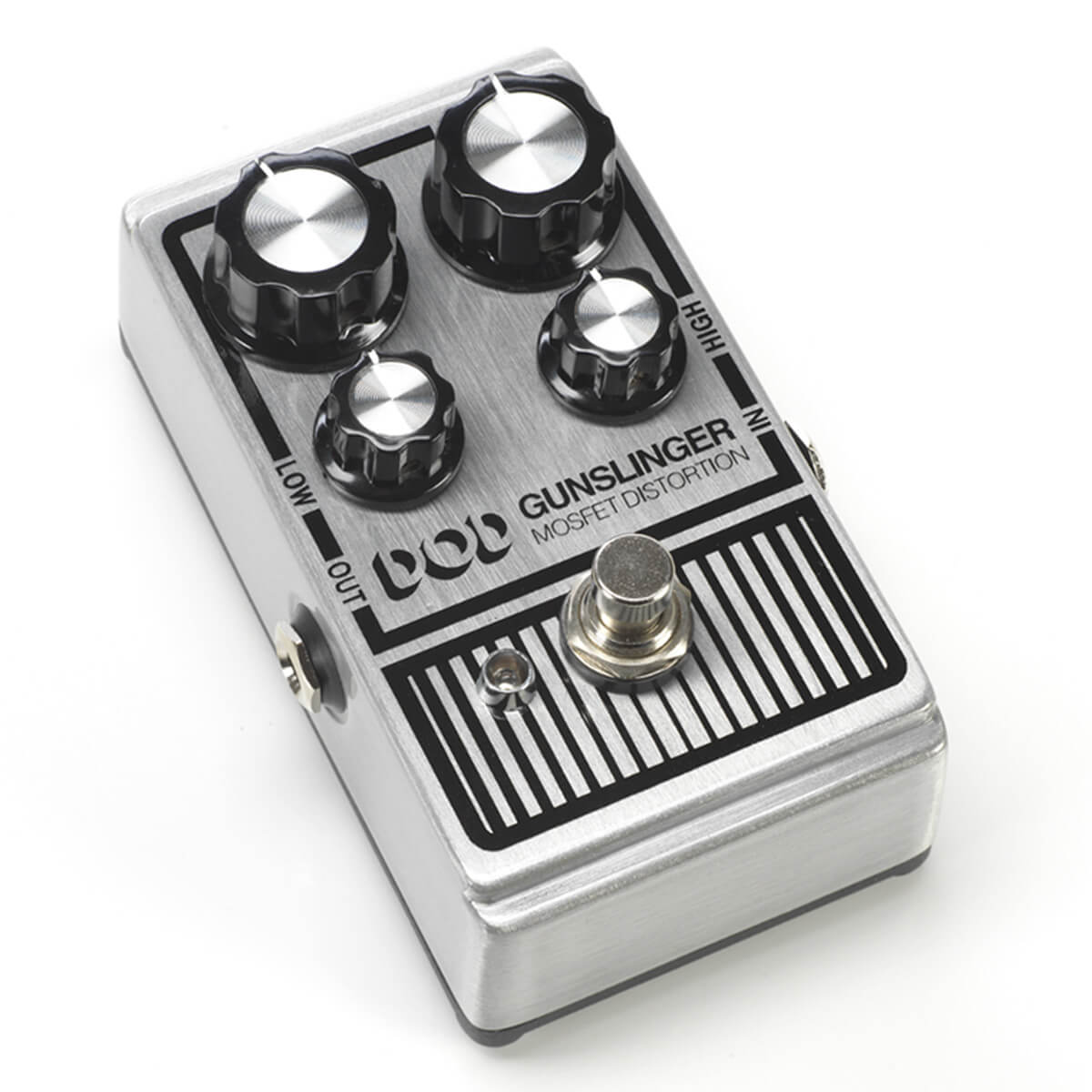

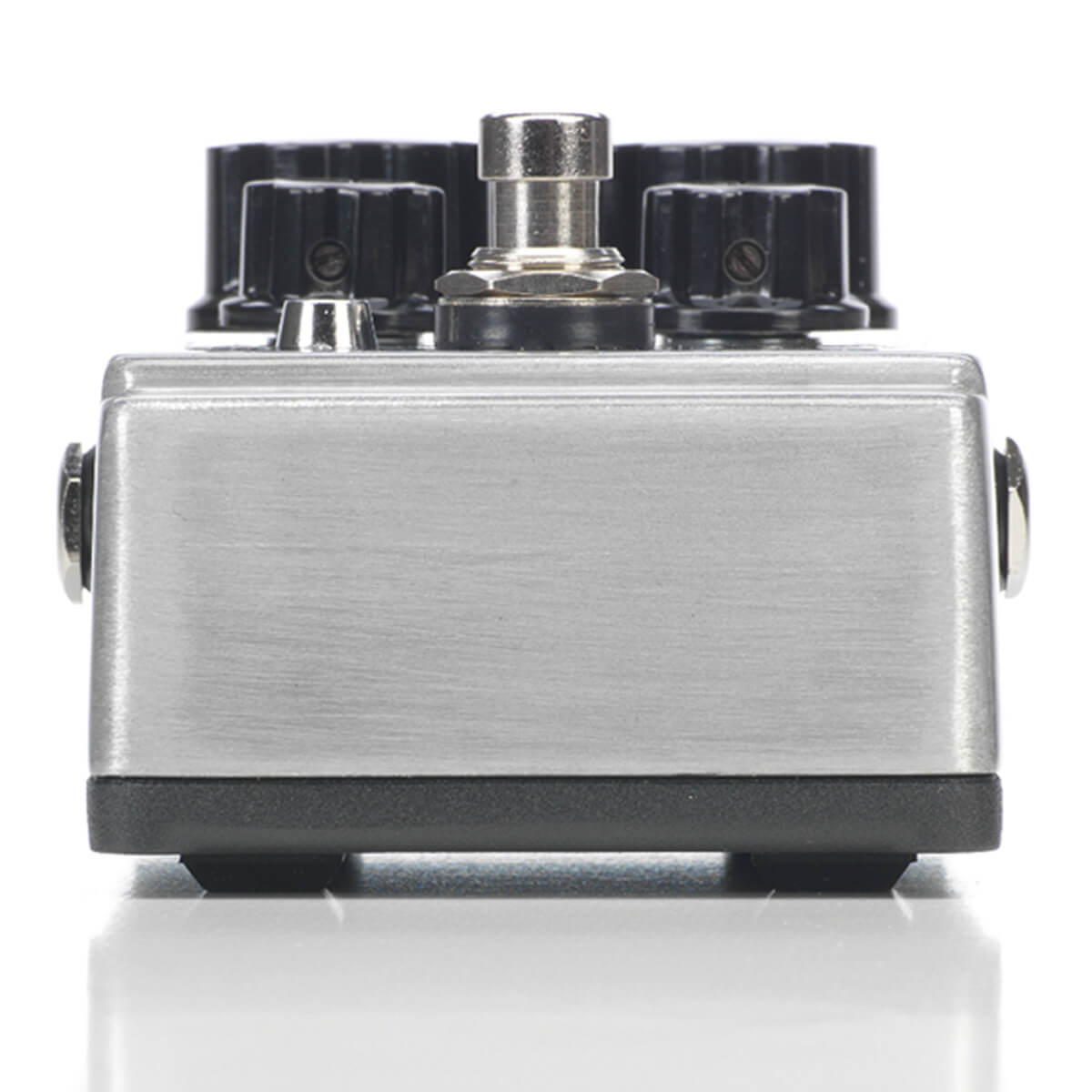

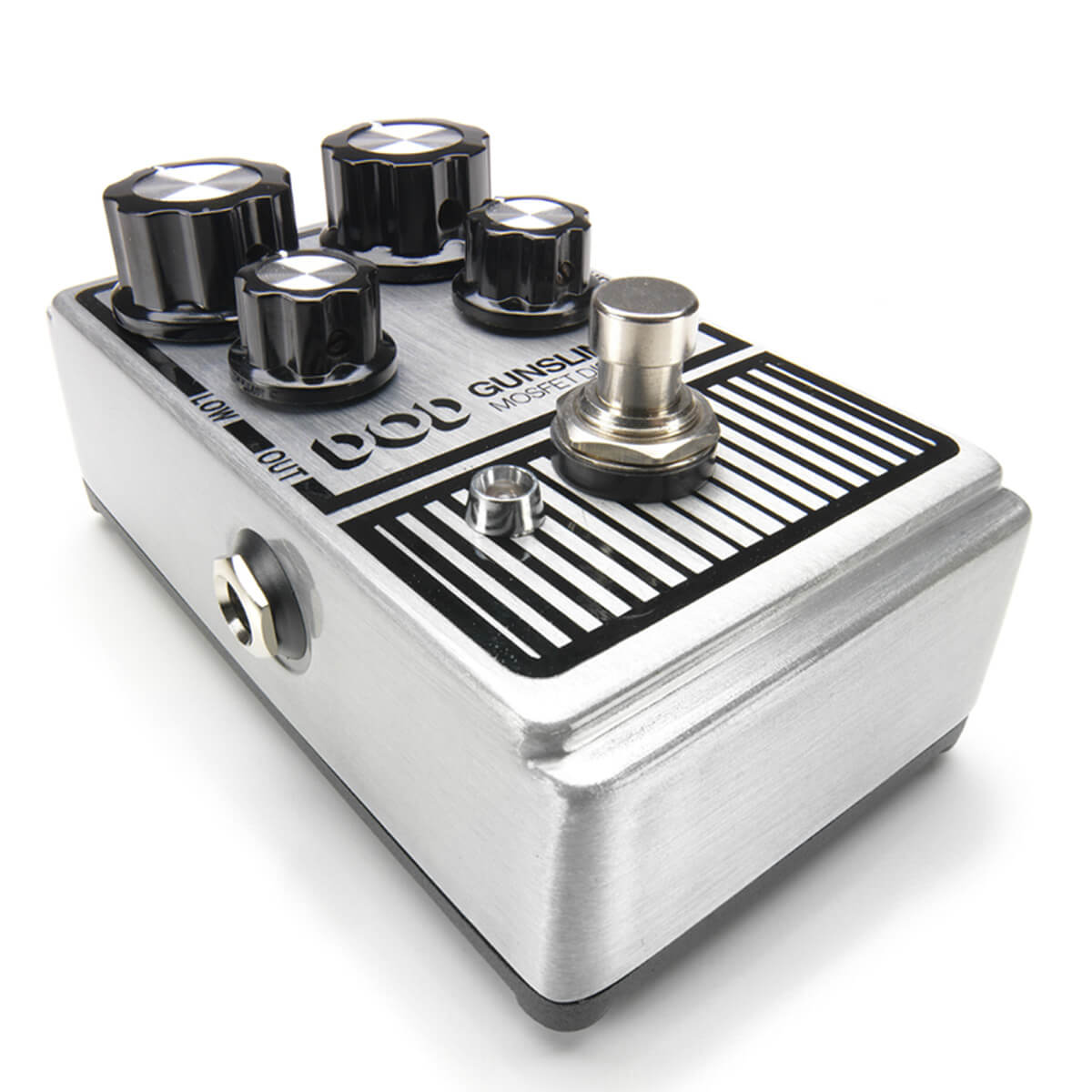

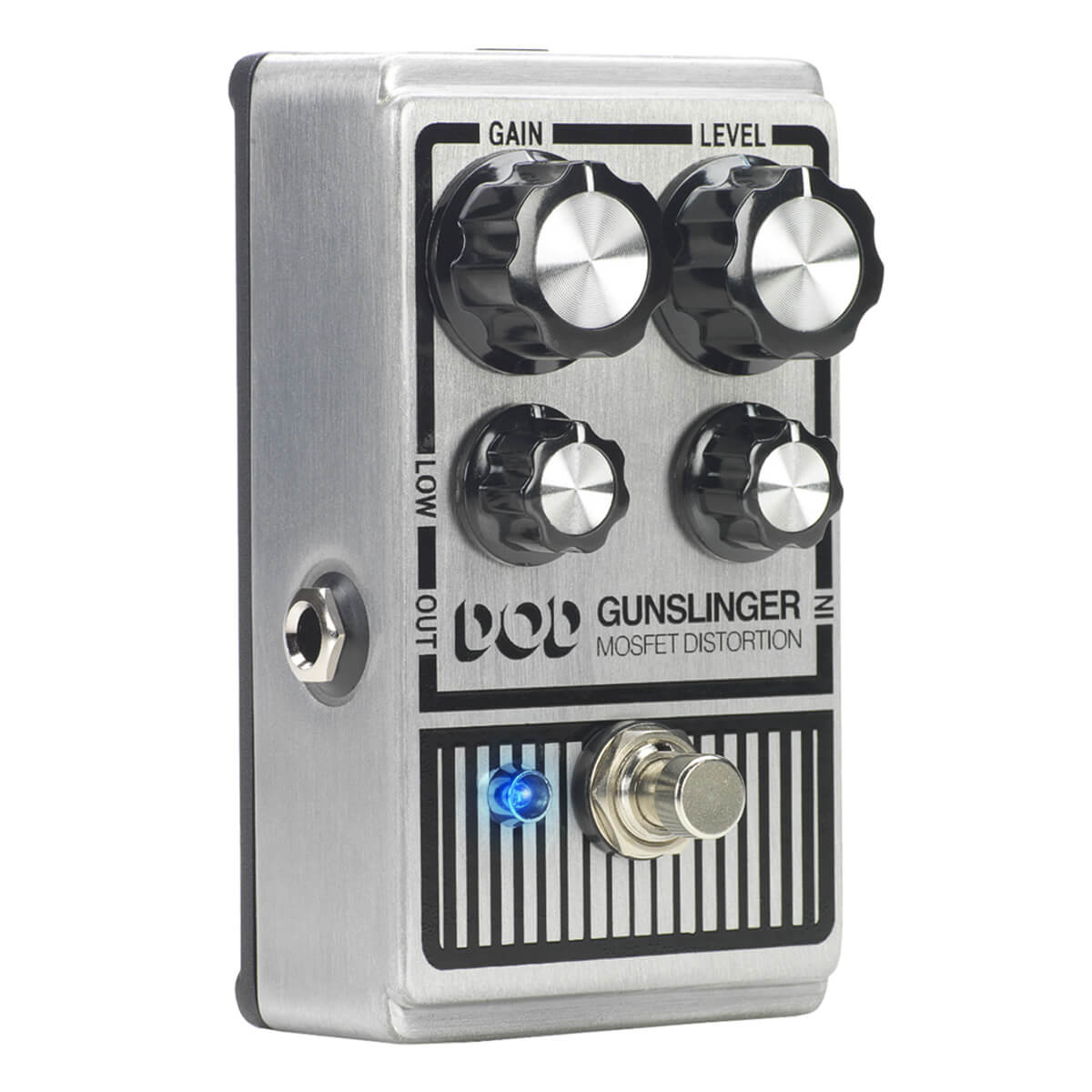

DOD Gunslinger

The Gunslinger is a MosFET distortion aimed at turning a clean American-voiced amp into a high-gain one. A gentle mid-range hump is built into the voicing so leads sit above a band rather than under it, and separate Low and High controls boost or cut each end independently instead of sharing one tone knob.

Gain sets the amount of dirt and Level matches the pedal to the rig, with a footswitch and blue LED for engagement. Signal path is true bypass through 1/4-inch instrument jacks. It runs from a 9V alkaline battery or a PS0913DC adapter and also supports 12V operation. The all-metal chassis measures 4.68 x 2.63 x 2.25 inches and weighs 0.62 lb.
