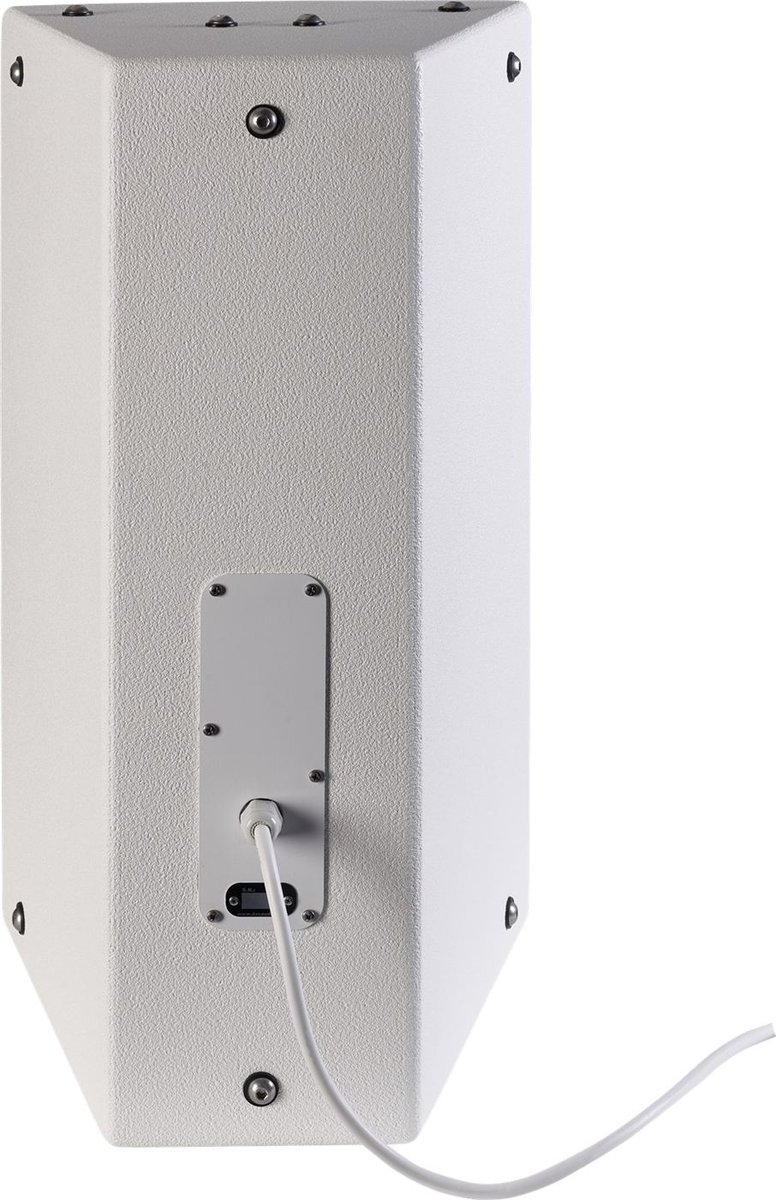

DAS Audio WR-121S-DXW Passive Subwoofer

The DAS Audio WR-121S-DXW is a passive subwoofer built around a 12-inch 12GX low-frequency driver. It covers 50 Hz - 125 Hz, and it reaches 130 dB peak at one metre.

It is a passive box, Passive: 4 ohms Biamp: 8 ohms nominal, handling 600 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP54 rating for outdoor and wash-down sites. Rigging provision: M10 Rigging Points. Net weight is 24.0 kg (52.9 lb).

Frequency Range (-10 dB)	50 Hz - 125 Hz
Nominal Impedance	Passive: 4 ohms Biamp: 8 ohms
RMS Power Handling	600 W
Peak Power Handling	2400 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	130 dB
LF Driver	12GX
IP Rating	IP54
