DAS Audio ARTEC-506A Powered Loudspeaker

The DAS Audio ARTEC-506A is a powered loudspeaker built around the 6P low-frequency driver with the M-34 compression driver on a BC-88 waveguide. It covers 65 Hz - 20 kHz, and it reaches 118 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

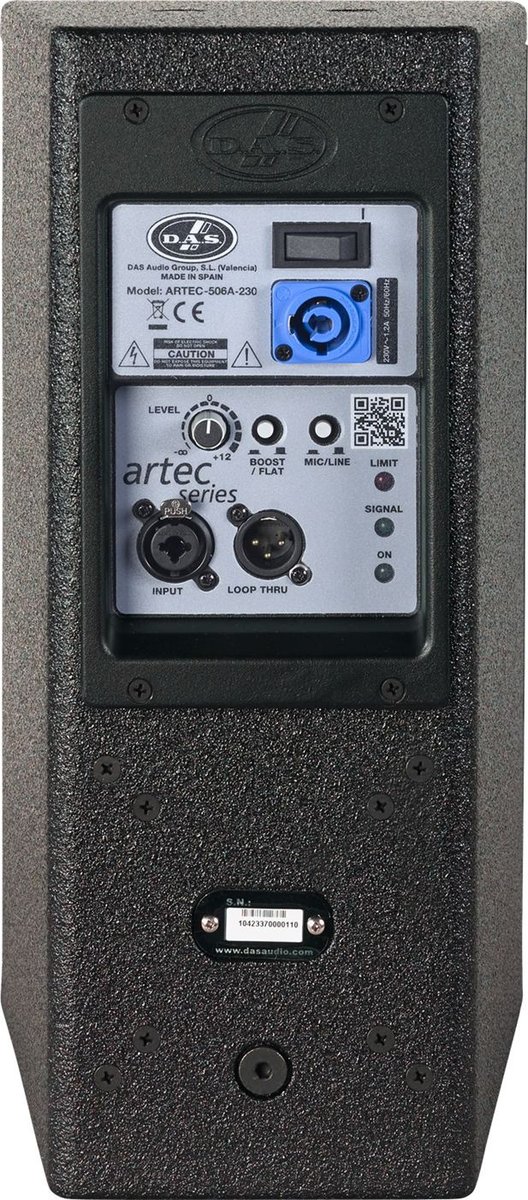

Amplification is on board and split per band: LF at 720 W peak, HF at 360 W peak. Signal comes in on 1 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 9.0 kg (19.8 lb).

Frequency Range (-10 dB)	65 Hz - 20 kHz
Horizontal Coverage (-6 dB)	80 deg
Vertical Coverage	80 deg
Nominal Amplifier Power LF (peak)	720 W
Nominal Amplifier Power HF (peak)	360 W
Maximum Peak SPL at 1 m	118 dB
LF Driver	6P
HF Driver	M-34
