DAS Audio ARTEC-506 Passive Loudspeaker

The DAS Audio ARTEC-506 is a passive loudspeaker built around the 6P low-frequency driver with the M-34 compression driver on a BC-88 waveguide. It covers 65 Hz - 20 kHz, and it reaches 122 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

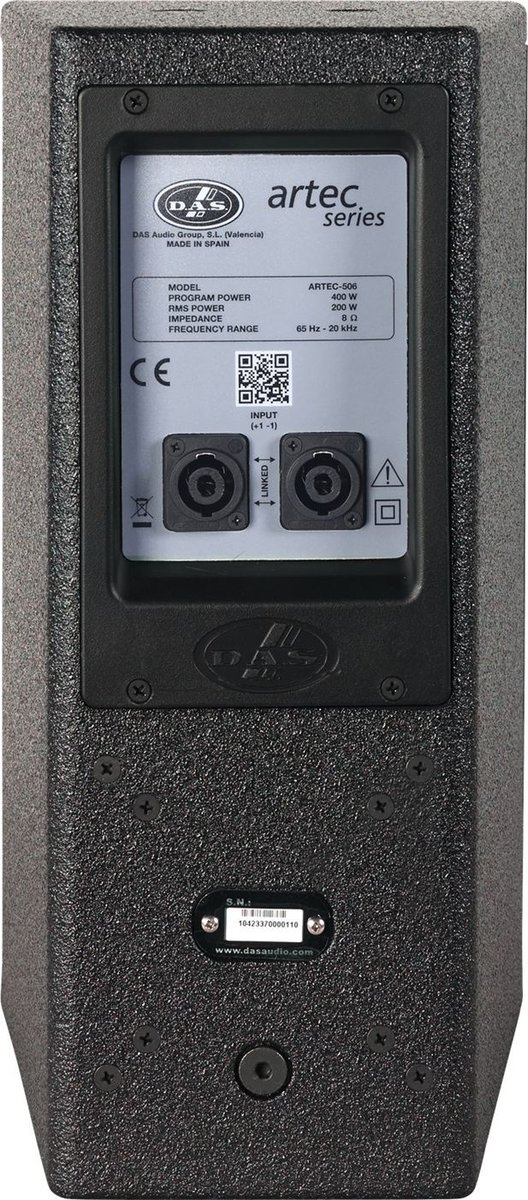

It is a passive box, 8 ohms nominal, handling 200 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 7.0 kg (15.4 lb).

Frequency Range (-10 dB)	65 Hz - 20 kHz
Horizontal Coverage (-6 dB)	80 deg
Vertical Coverage	80 deg
Nominal Impedance	8 ohms
RMS Power Handling	200 W
Peak Power Handling	800 W
On-axis Sensitivity 1W/1 m	90 dB SPL
Maximum Peak SPL at 1 m	122 dB
