DAS Audio ALTEA-415 Passive Loudspeaker

The DAS Audio ALTEA-415 is a passive loudspeaker built around the 15MI low-frequency driver with the M-32 compression driver. It covers 63 Hz - 20 kHz, and it reaches 128 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

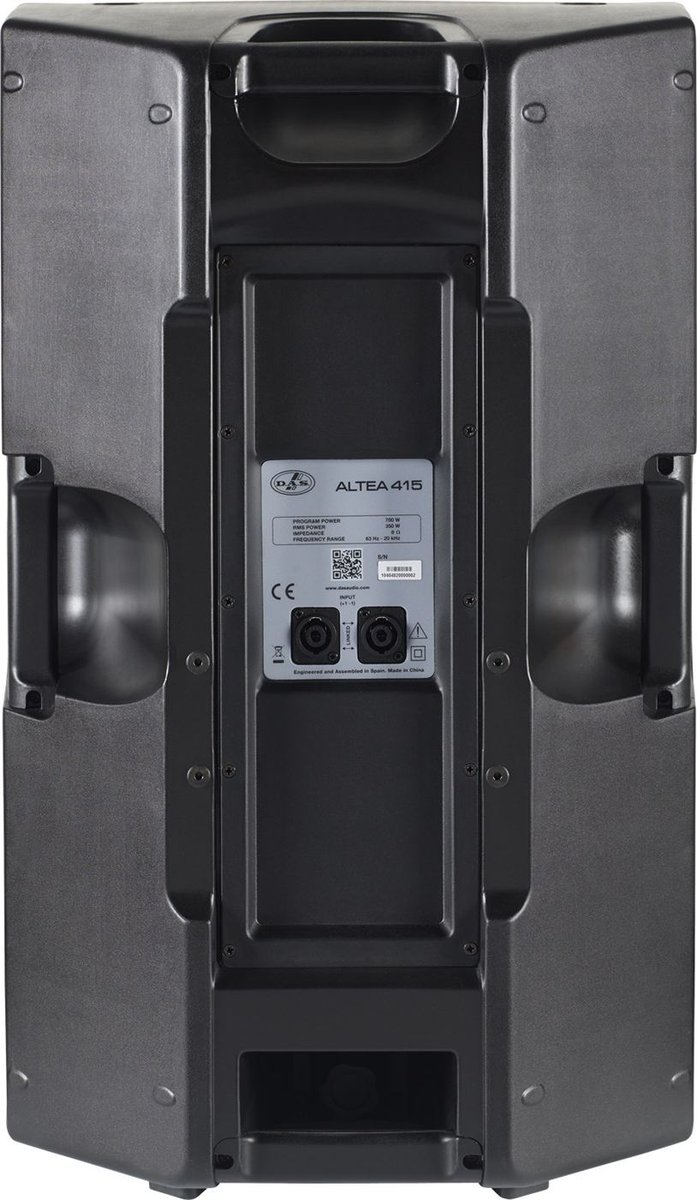

It is a passive box, 8 ohms nominal, handling 350 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Polypropylene. Rigging provision: M8 Rigging Points. Net weight is 16.5 kg (36.4 lb).

Frequency Range (-10 dB)	63 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	60 deg
Nominal Impedance	8 ohms
RMS Power Handling	350 W
Peak Power Handling	1400 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	128 dB
