DAS Audio ALTEA-712 Passive Loudspeaker

The DAS Audio ALTEA-712 is a passive loudspeaker built around a 12-inch 12F low-frequency driver with the M-28 compression driver. It covers 65 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

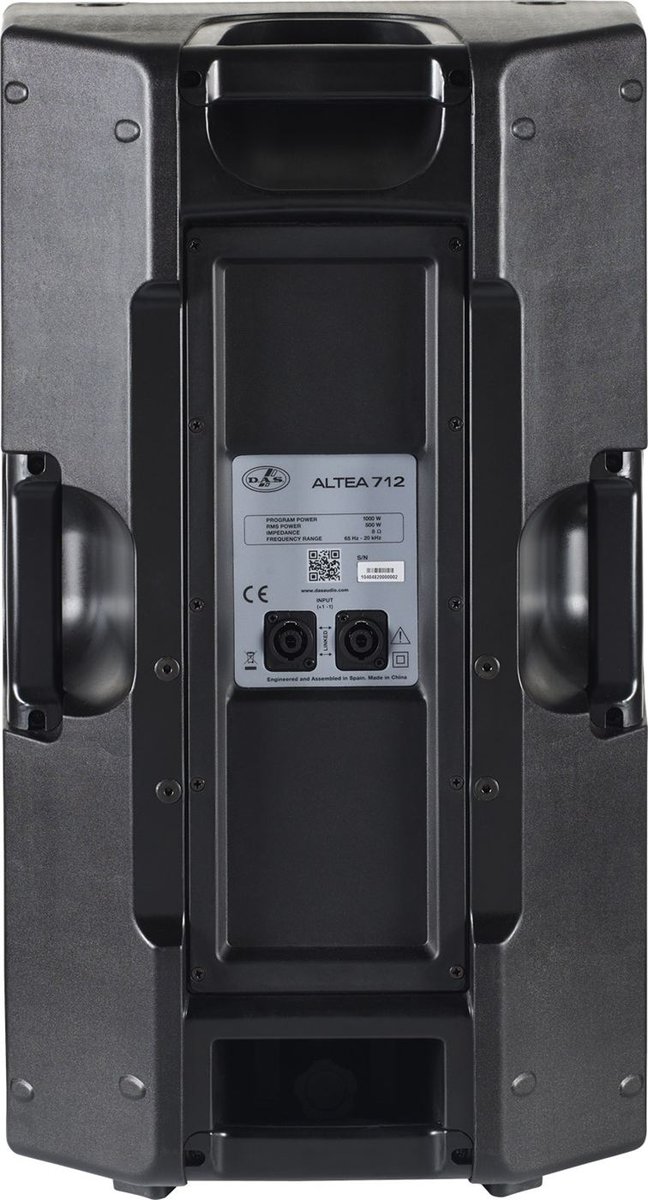

It is a passive box, 8 ohms nominal, handling 500 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Polypropylene. Rigging provision: M8 Rigging Points. Net weight is 16.5 kg (36.4 lb).

Frequency Range (-10 dB)	65 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	60 deg
Nominal Impedance	8 ohms
RMS Power Handling	500 W
Peak Power Handling	2000 W
On-axis Sensitivity 1W/1 m	98 dB SPL
Maximum Peak SPL at 1 m	131 dB
