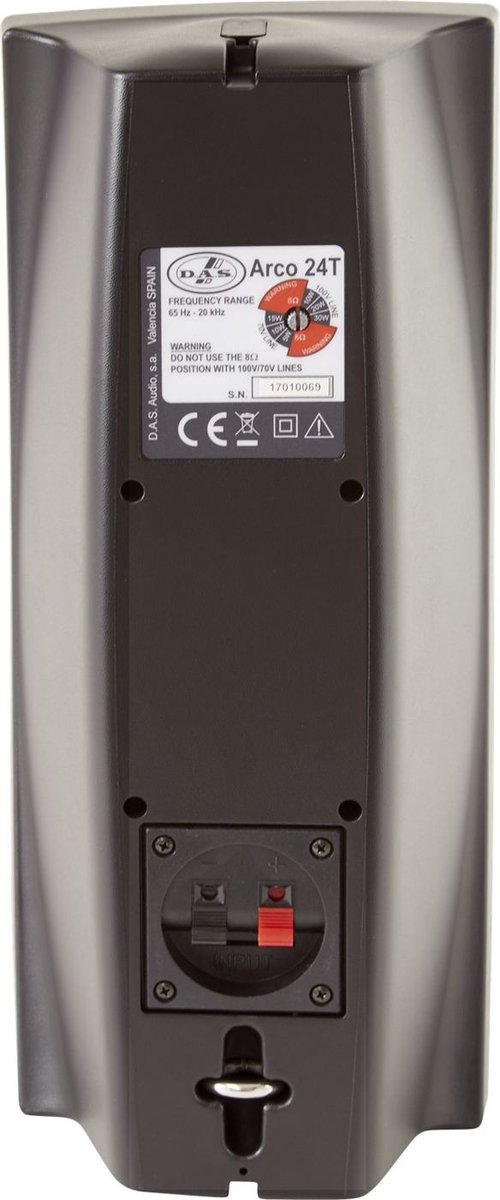

DAS Audio ARCO-24-T Passive Install Loudspeaker

The DAS Audio ARCO-24-T is a passive install loudspeaker built around a 4-inch 4G4 low-frequency driver with the TWT-24 tweeter. It covers 65 Hz - 22 kHz, and it reaches 115 dB peak at one metre. Nominal coverage is 80 deg horizontal by 70 deg vertical.

It is a passive box, 8 ohms nominal, handling 100 W RMS, so plan amplifier and processing to suit. Signal comes in on Spring Terminals. A line transformer is fitted for constant-voltage systems, tapped 70 V at 5 W-10 W-15 W and 100 V at 10 W-20 W-30 W. The enclosure is built in High Impact ABS. Net weight is 2.6 kg (5.7 lb). DAS lists it in black and white; pick the finish above, as each carries its own order code.
