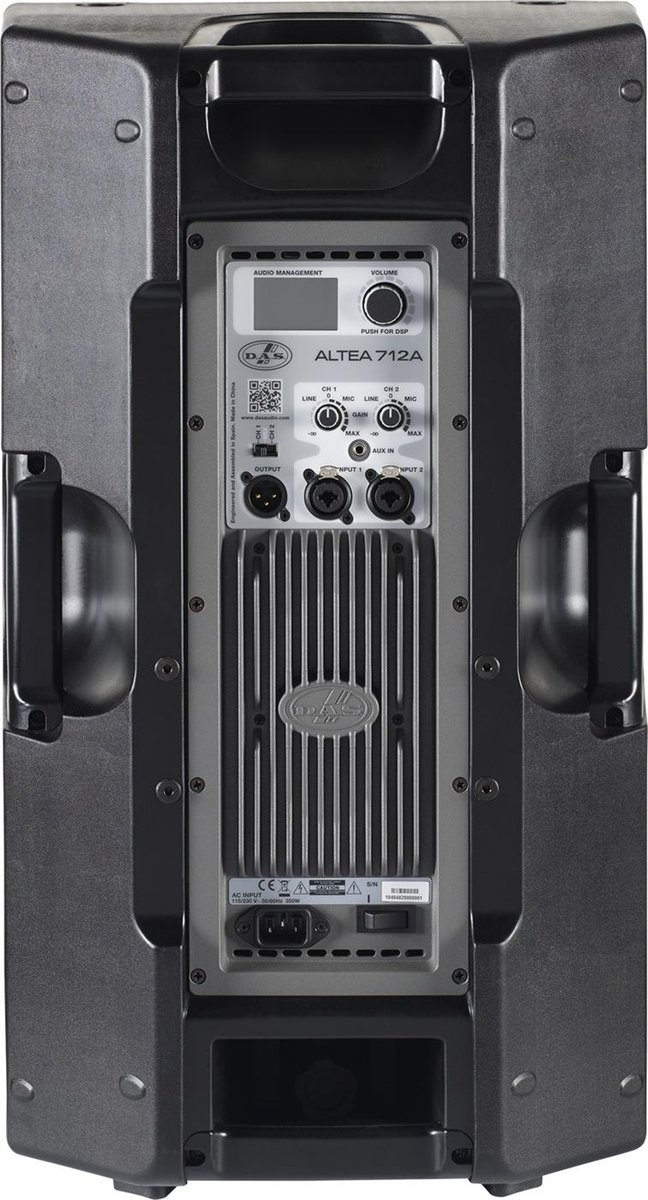

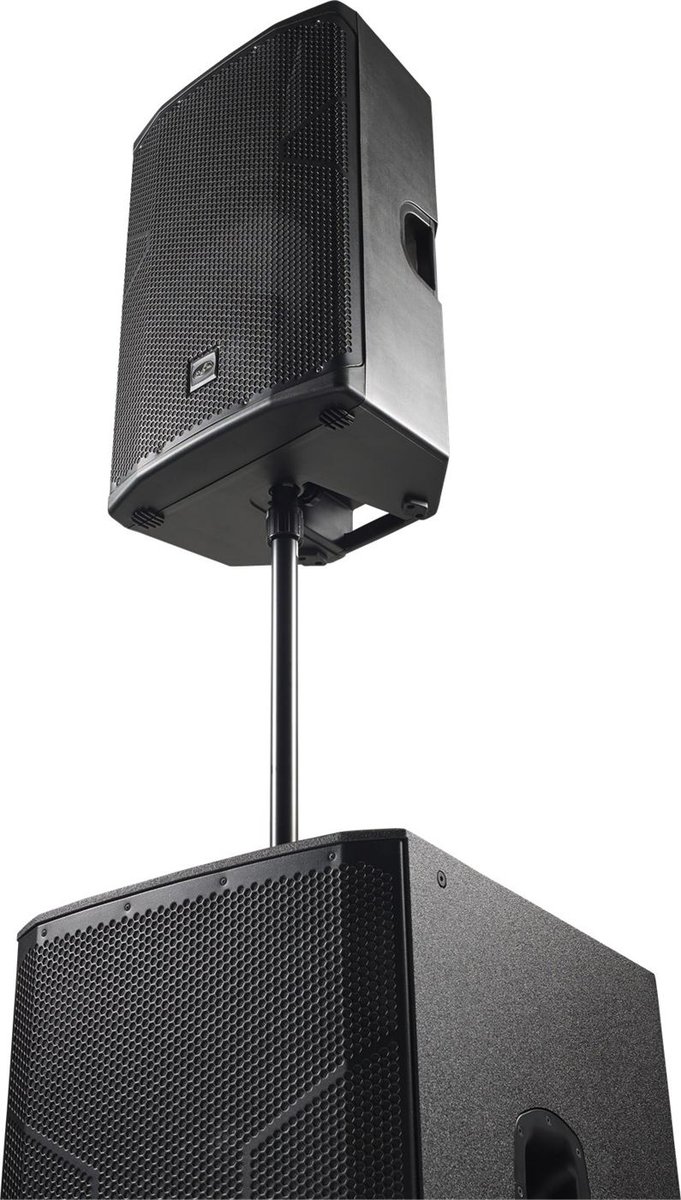

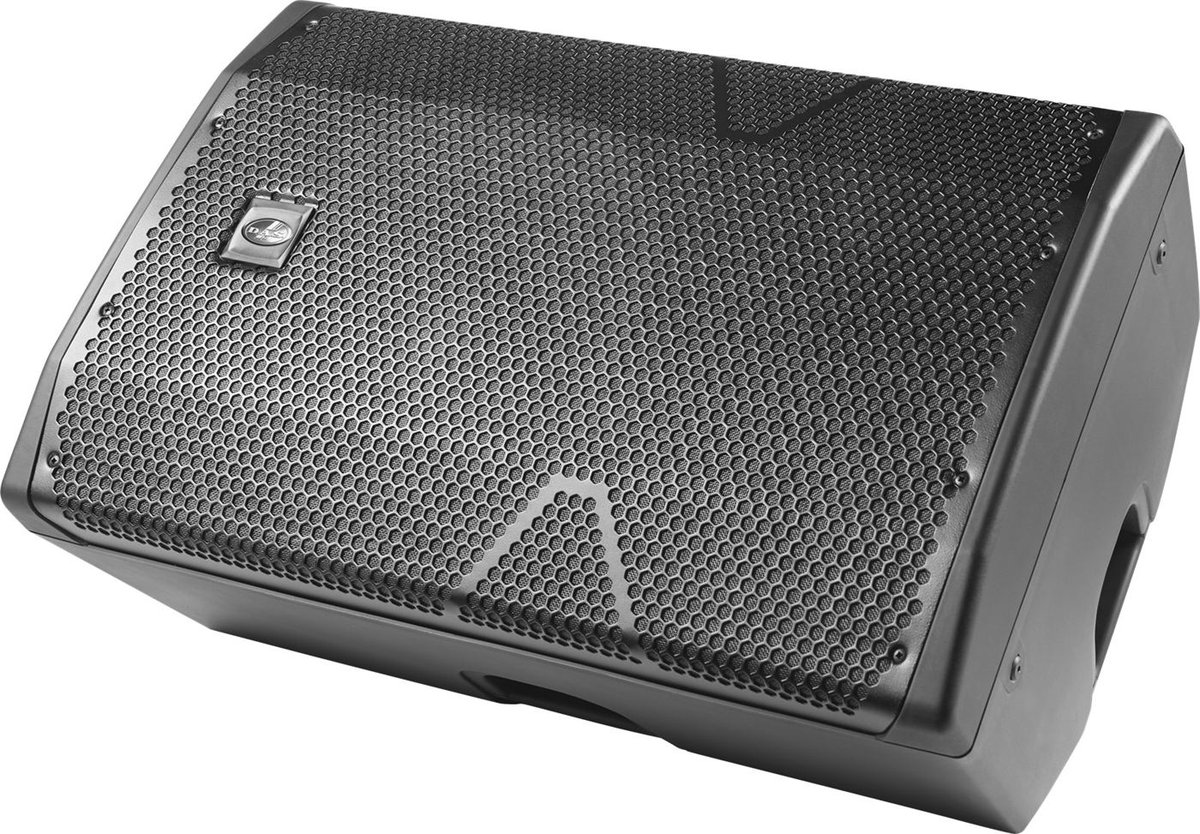

DAS Audio ALTEA-712A Powered Loudspeaker

The DAS Audio ALTEA-712A is a powered loudspeaker built around the 12F4 low-frequency driver with the M-28 compression driver. It covers 60 Hz - 20 kHz, and it reaches 130 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

Amplification is on board, rated 750 W continuous and 1500 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Polypropylene. Rigging provision: M8 Rigging Points. Net weight is 17.5 kg (38.6 lb).

  • Inputs2 x Female XLR
  • Frequency Range (-10 dB)60 Hz - 20 kHz
  • Nominal Amplifier Power (continuous)750 W
  • Nominal Amplifier Power (peak)1500 W
  • Weight17,5 kg ( 38,6 lb )
Frequency Range (-10 dB)60 Hz - 20 kHz
Horizontal Coverage (-6 dB)90 deg
Vertical Coverage60 deg
Nominal Amplifier Power (continuous)750 W
Nominal Amplifier Power (peak)1500 W
Maximum Peak SPL at 1 m130 dB
LF Driver12F4
HF DriverM-28
Dimensions655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in
Weight17,5 kg ( 38,6 lb )
Inputs2 x Female
