DAS Audio ARCO-12SUB Passive Subwoofer

The DAS Audio ARCO-12SUB is a passive subwoofer built around the 122S low-frequency driver. It covers 40 Hz - 200 Hz, and it reaches 134 dB peak at one metre.

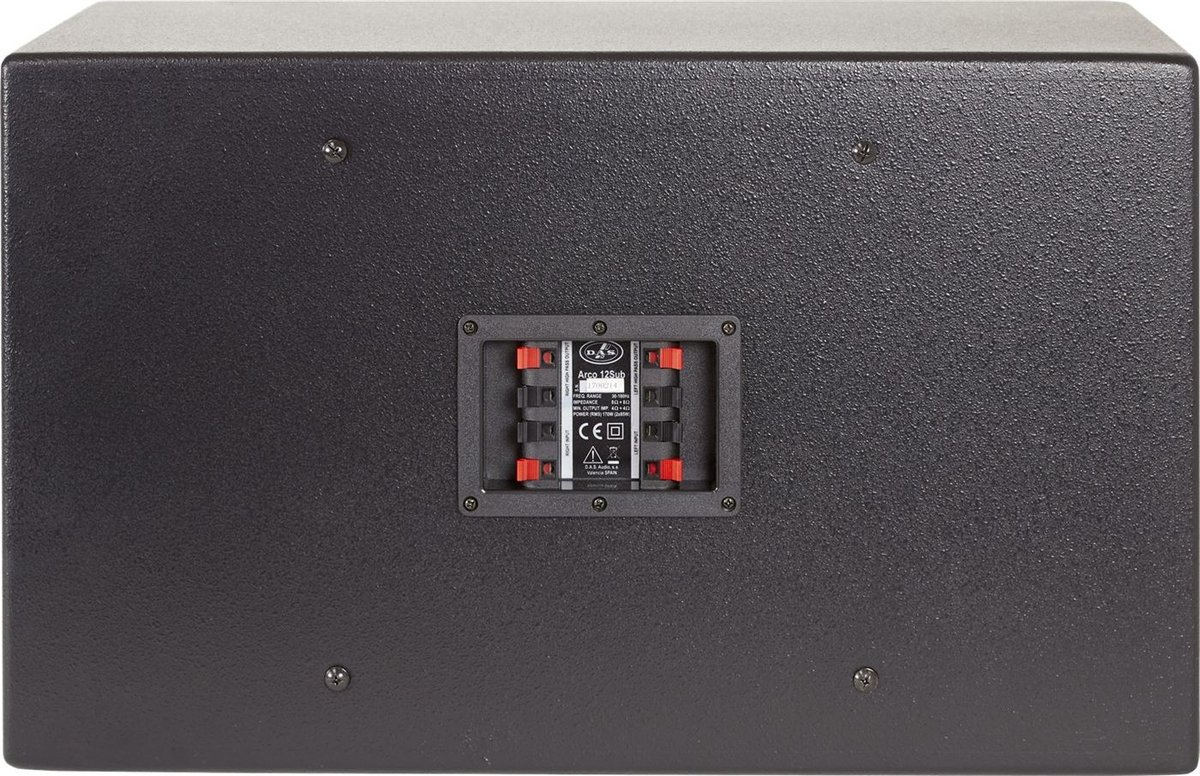

It is a passive box, 2 x 8 ohms nominal, handling 2 x 170 W RMS, so plan amplifier and processing to suit. Signal comes in on Spring Terminals. The enclosure is built in MDF, finished in ISO-flex Paint. Net weight is 14.0 kg (30.8 lb).

Frequency Range (-10 dB)	40 Hz - 200 Hz
Nominal Impedance	2 x 8 ohms
RMS Power Handling	2 x 170 W
On-axis Sensitivity 1W/1 m	106 dB SPL
Maximum Peak SPL at 1 m	134 dB
LF Driver	122S
Audio Input Connector	Spring Terminals
Audio Output Connector	Spring Terminals
