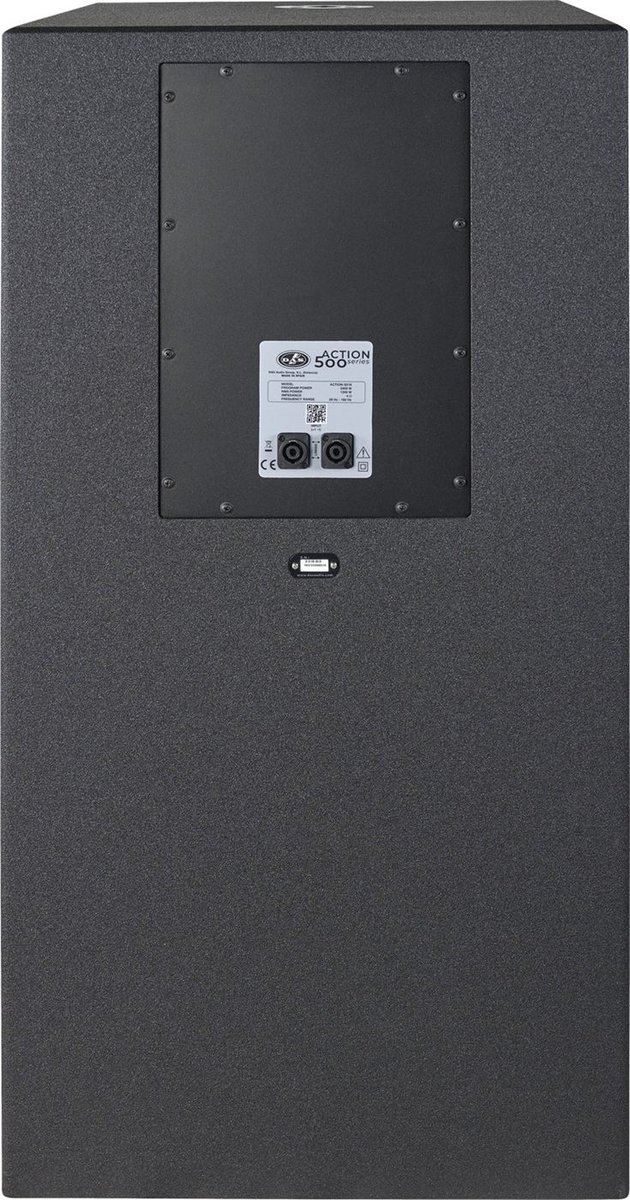

DAS Audio ACTION-S218 Passive Subwoofer

The DAS Audio ACTION-S218 is a passive subwoofer built around the 18FW low-frequency driver. It covers 29 Hz - 160 Hz, and it reaches 139 dB peak at one metre.

It is a passive box, 4 ohms nominal, handling 1200 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Net weight is 61.0 kg (134.2 lb).

Frequency Range (-10 dB)	29 Hz - 160 Hz
Nominal Impedance	4 ohms
RMS Power Handling	1200 W
Peak Power Handling	4800 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	139 dB
LF Driver	18FW
Audio Input Connector	1 x speakON NL4
