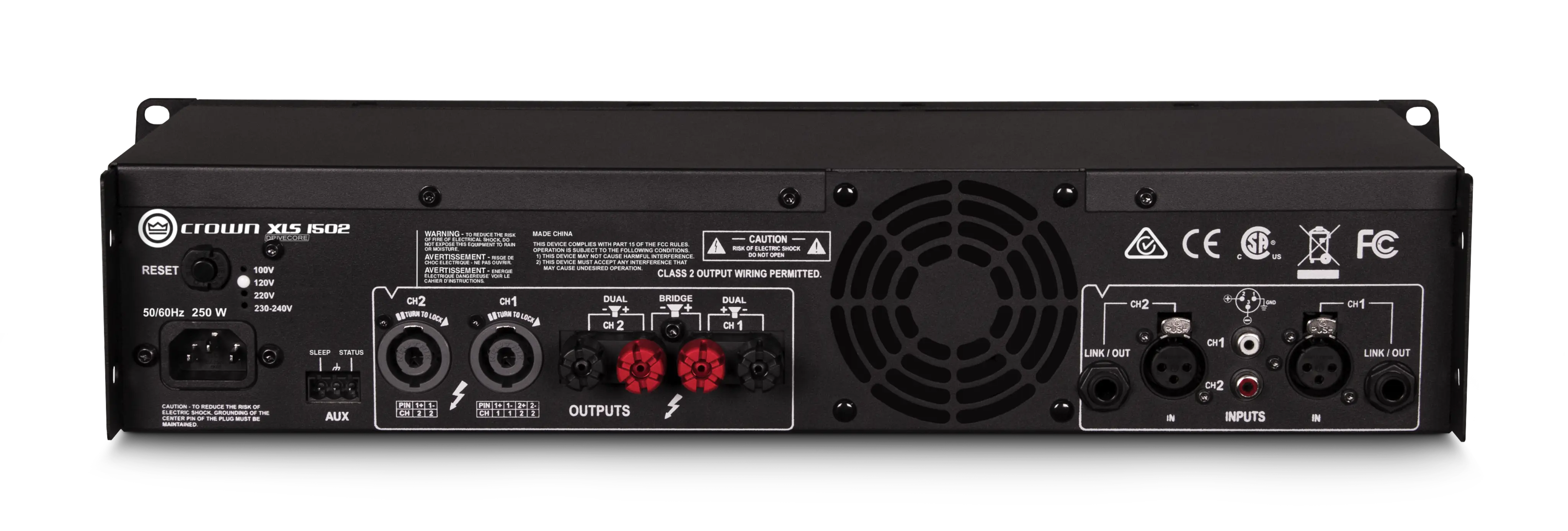

Crown XLS 1502 DriveCore 2 Power Amplifier

The XLS 1502 runs 525 W per side at 4 ohms on Crown's DriveCore output stage, which keeps the chassis light and the power draw modest for the level it produces. Bridged at 4 ohms the DriveCore 2 series reaches 2400 W, leaving headroom rather than running a portable system into its limiters all night.

The front-panel LCD is three times the size of the previous generation and fronts more DSP than the older XLS carried, so crossover and limiting get set at the amplifier instead of upstream. It is aimed squarely at portable PA work where the rack has to be carried in by hand.

Rated Power Output (per channel, 4 ohms)	525 W
Sensitivity	1.4Vrms
Frequency Response	+0dB, -1dB
Signal to Noise	>103dB (at .775Vrms, 6dB lower)
Intermodulation Distortion	< 0.3%
Damping Factor	> 200
Dimensions	19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm)
Weight	8.6 lbs (3.9 kgs)
