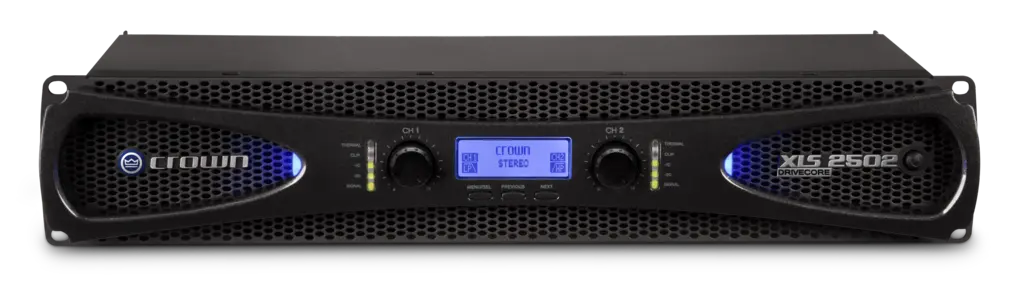

Crown XLS 2502 DriveCore 2 Power Amplifier
The XLS 2502 is the highest-output model in Crown's XLS DriveCore 2 line, rated 775 W per channel at 4 ohms and 2400 W bridged at 4 ohms, enough for a pair of full-range mains or a single-18 sub without stepping up to an install-class amp. DriveCore 2 output devices and Peakx limiting keep the amp running at full tilt without babysitting a limiter setting.
XLR, 1/4 inch, and RCA inputs cover mixer, DJ, and consumer-level sources, with switchable 0.775V/1.4V sensitivity to match the source. An integrated PureBand crossover and per-channel bandpass filter give it basic system-tuning tools built in, and at 10.8 lb it stays light enough for a one-person load-in.
| Configuration | 2-channel power amplifier |
|---|---|
| Power @ 4 ohms | 775 W per channel |
| Bridged @ 4 ohms | 2400 W |
| Inputs | XLR, 1/4 in, RCA |
| Protection | Peakx limiters, PureBand crossover |
| Dimensions | 19 in W x 3.5 in H x 10.7 in D |
| Weight | 10.8 lb (4.9 kg) |
