Crestron TSW-1070-LB Room Availability Light Bar for TSW-1070 Series

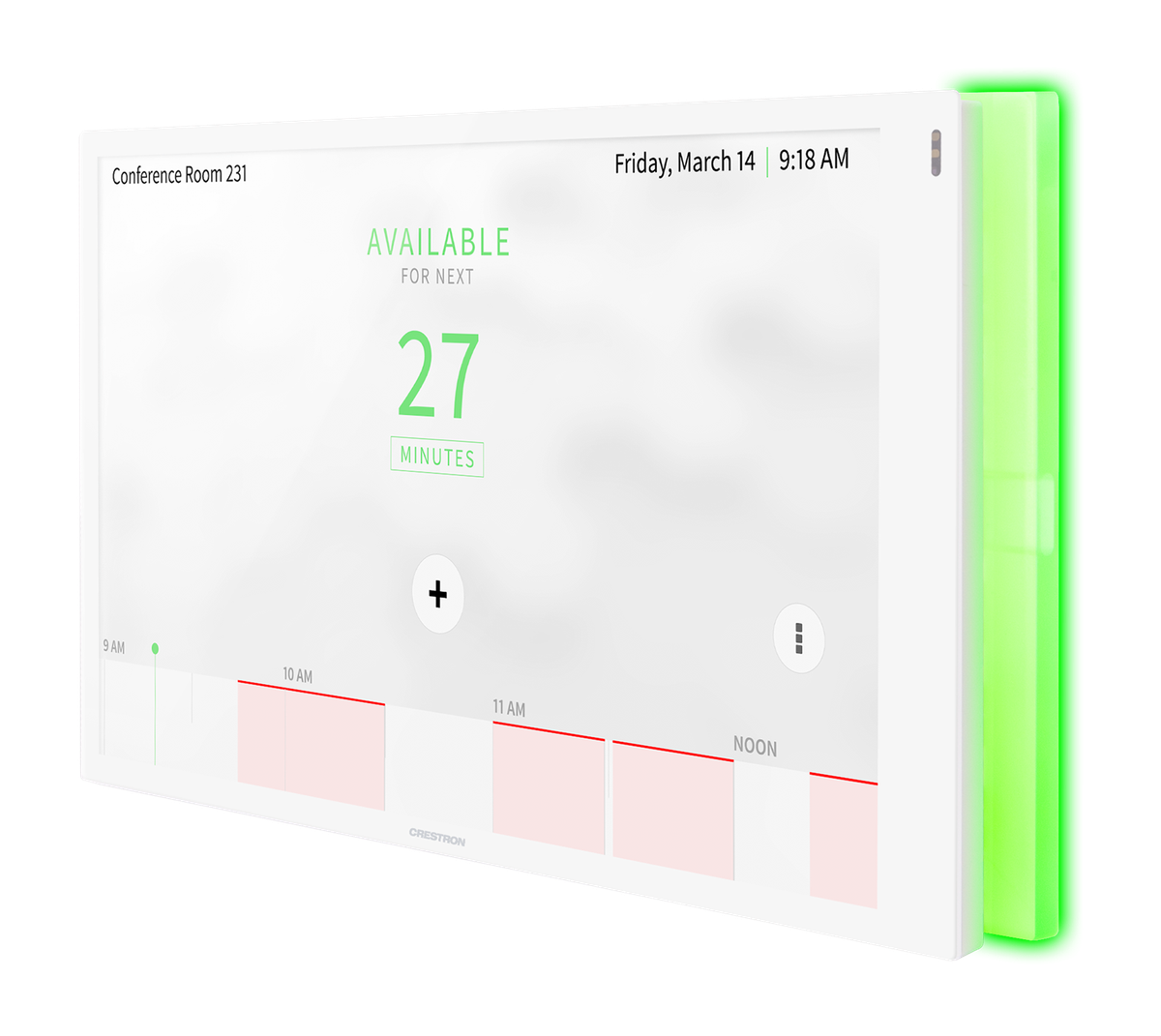

The TSW-1070-LB is the 10.1 in. version of Crestron's room availability light bar. It mounts to a TSW-1070 or TSS-1070 series touch screen and throws 180 degrees of RGB light into the corridor, green for available and red for reserved, so somebody looking for a free room reads the whole hallway at once. Custom colour mixing is available from the panel configuration or a control program.

The assembly is in two parts: a control module screwed to the rear of the panel and a light-diffusing plastic bar that sits between the panel and the mounting surface, which is why 1-5/8 in. of mounting depth is required. It connects and powers over one attached USB Type-A lead into the touch screen host port at 2.5 W, 1.5 W typical. Fitting a light bar means the panel needs a PoE+ source.
