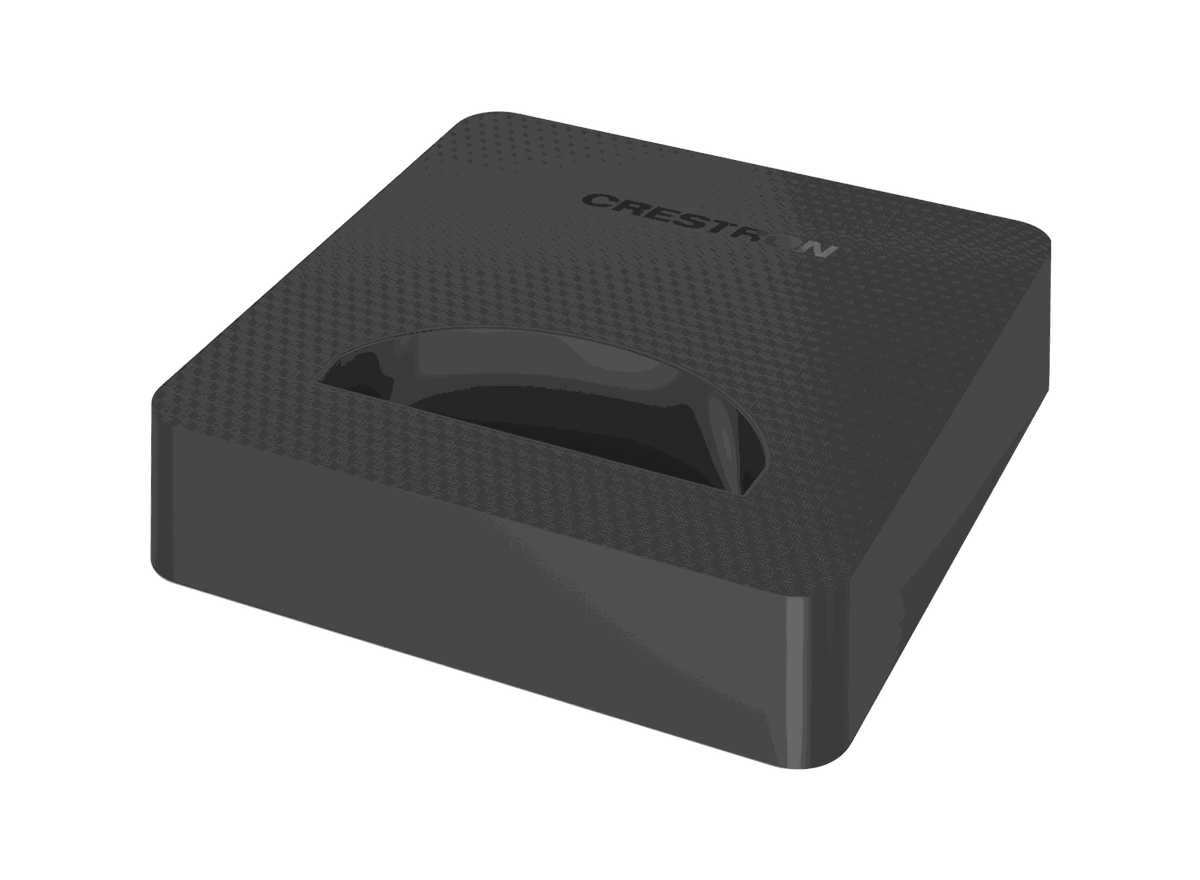

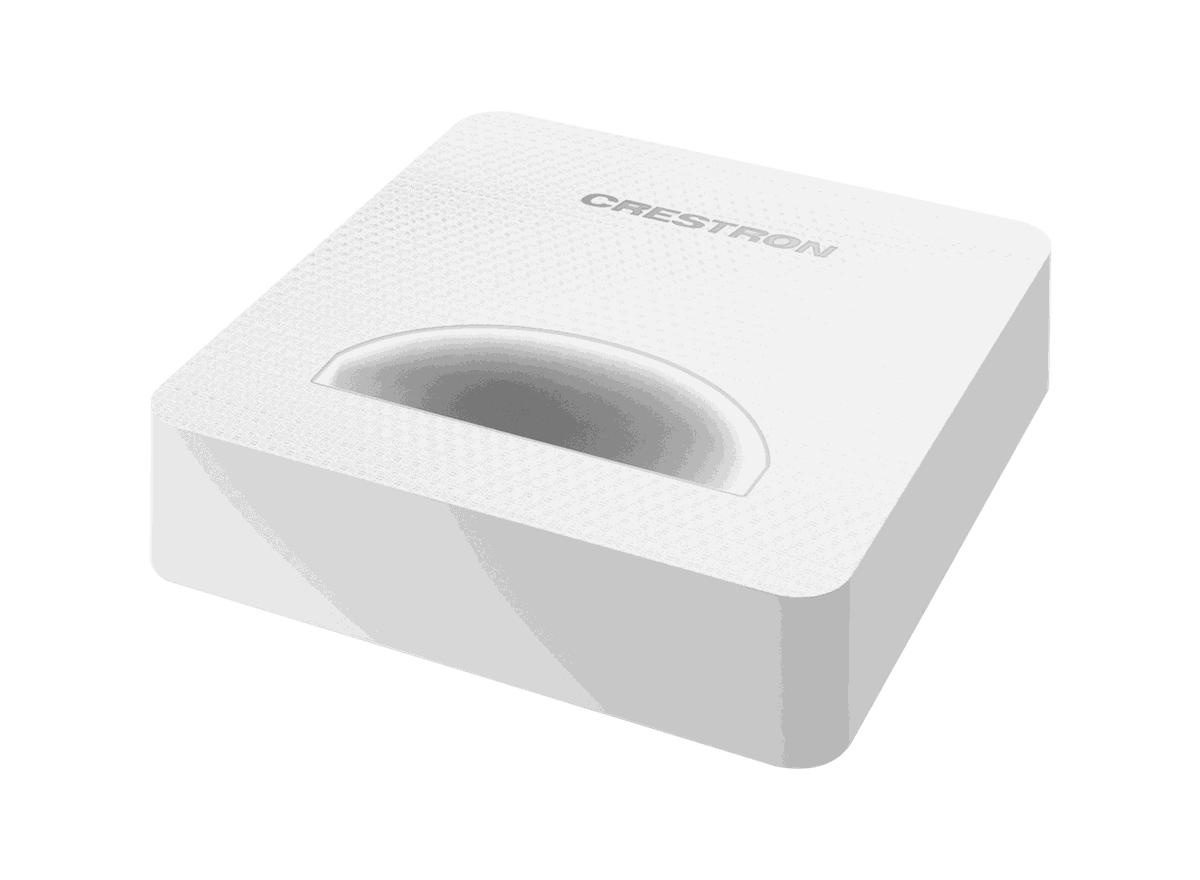

Crestron TSR-310-DS Table Dock for TSR-310
The TSR-310-DS is the upright table dock for a single TSR-310 handheld remote. It is free-standing with a non-slip base, so it can sit on a boardroom table or a side table without being fixed down, and the remote stands vertically in it. The footprint is 3.67 in. square and the dock alone is under an inch tall, rising to 9.00 in. with the remote docked.
A white LED confirms the dock is powered. Power comes from the included pack, 100 to 240 volts AC in and 2 A at 5 volts DC out through a DC power connector on the dock. Crestron rates charging between 50 and 104 degrees F, which is worth knowing if the dock lives somewhere cold. It is offered in black or white to match the remote.
| Function | Upright charging dock for one TSR-310 handheld remote |
|---|---|
| Power Input | (1) DC power connector, 5VDC input |
| Power Pack | Included; input 100-240VAC 50/60 Hz, output 2A at 5VDC |
| Indicator | (1) White LED, indicates dock is powered on |
| Construction | Plastic, free-standing, non-slip bottom surface |
| Temperature | 32 to 104 F (0 to 40 C); 50 to 104 F while charging |
| Dimensions | 0.93 in. H x 3.67 in. W x 3.67 in. D (24 x 94 x 94 mm); 9.00 in. H with remote docked |
