Crestron TSD-2220-B

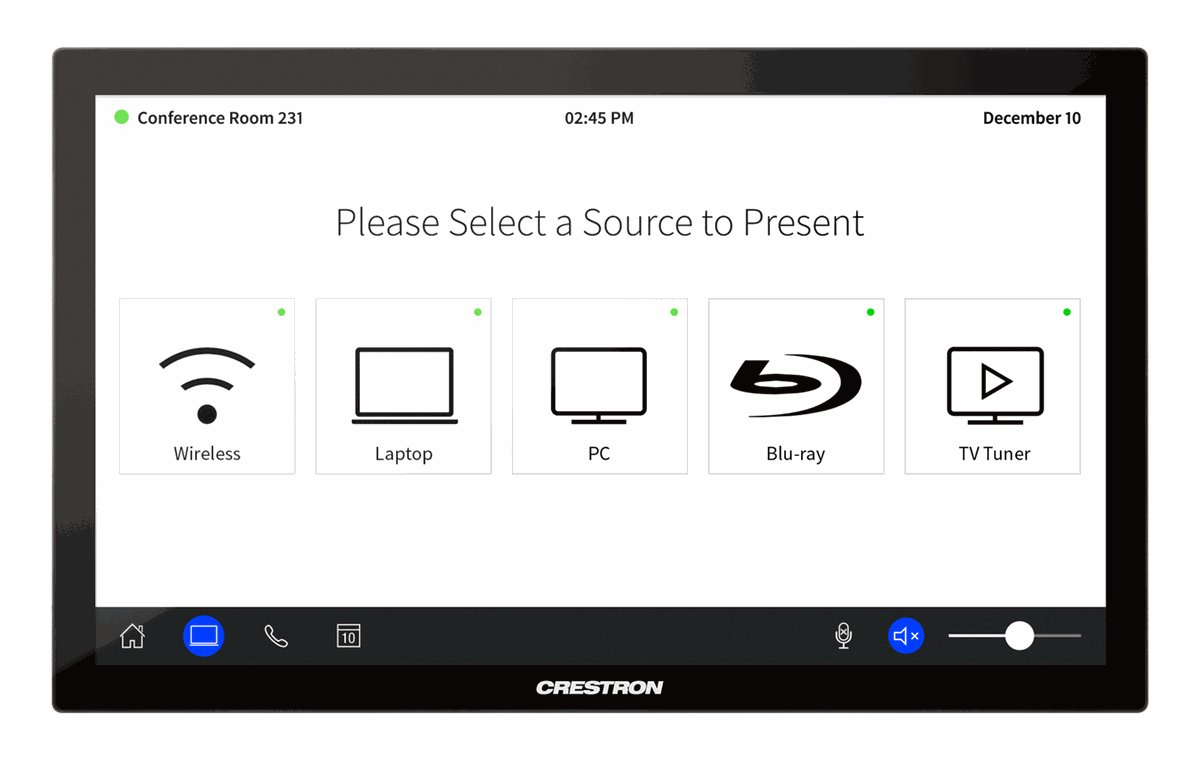

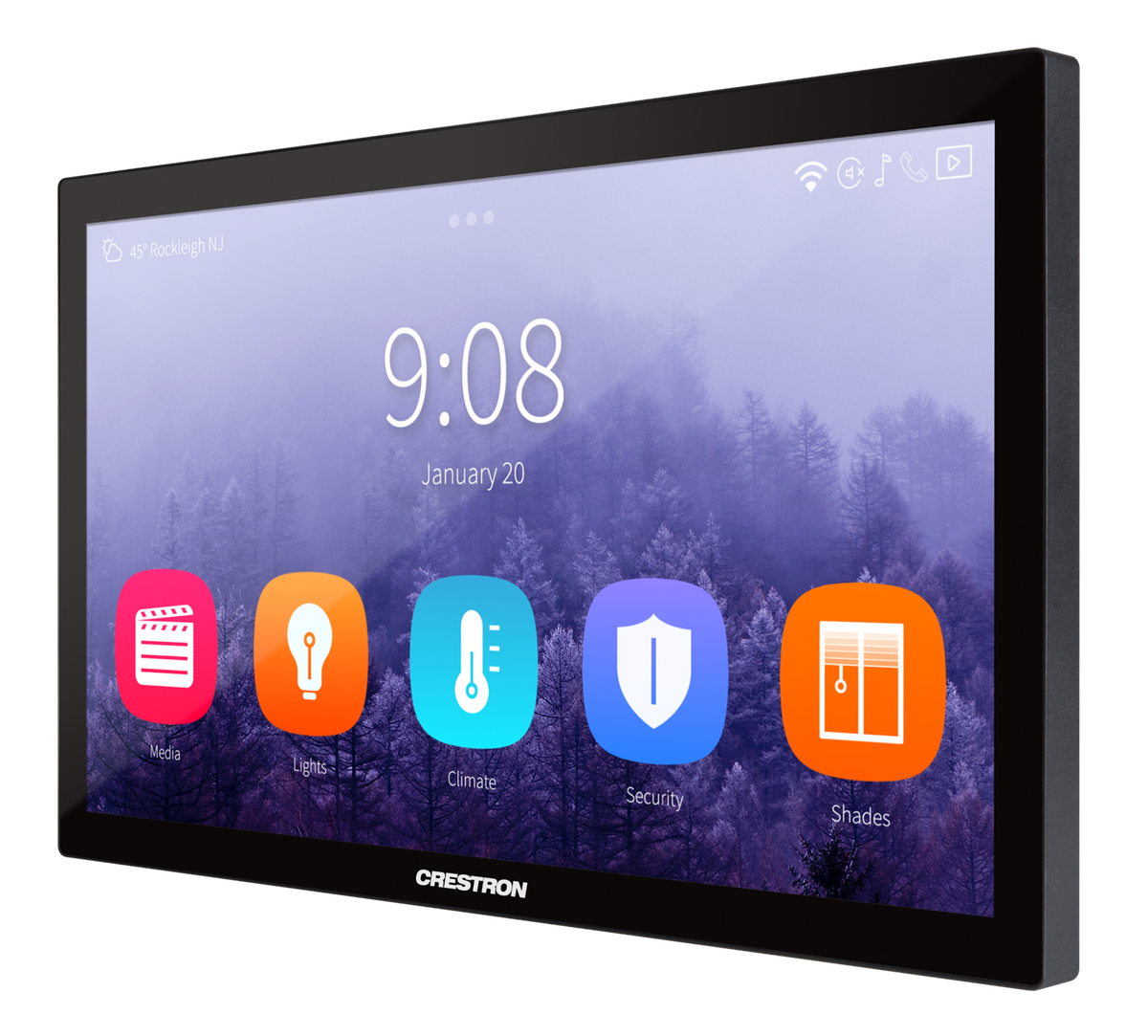

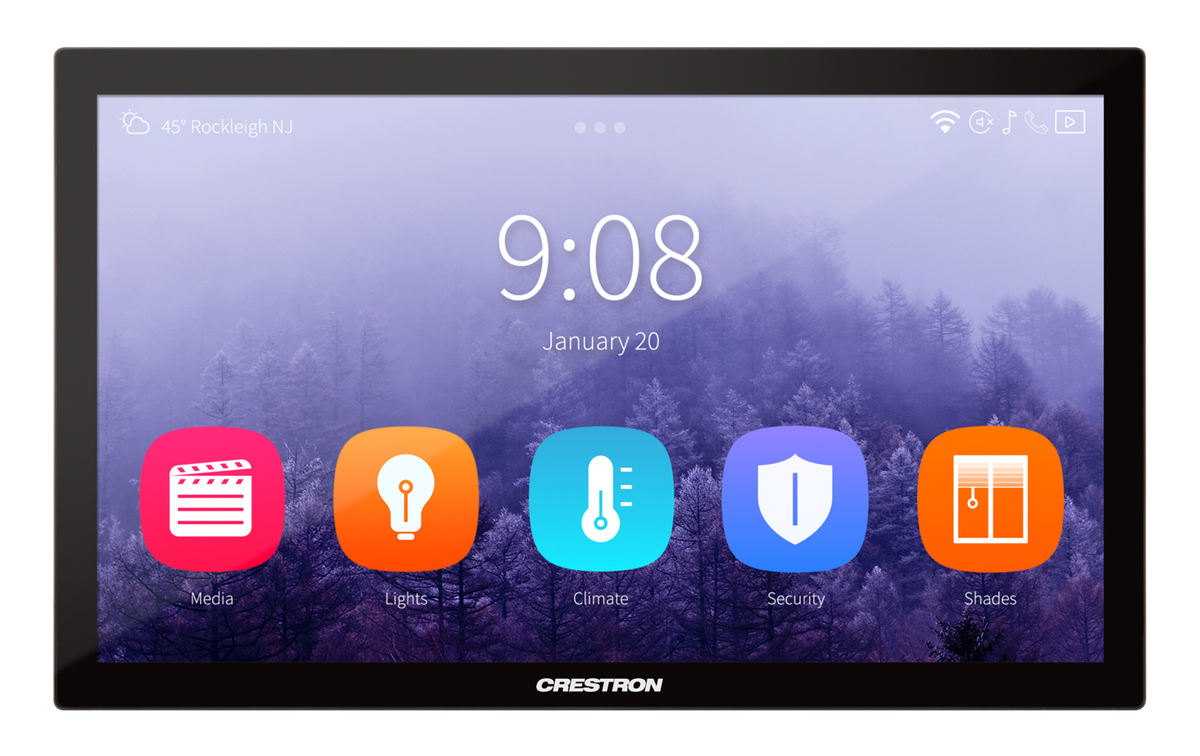

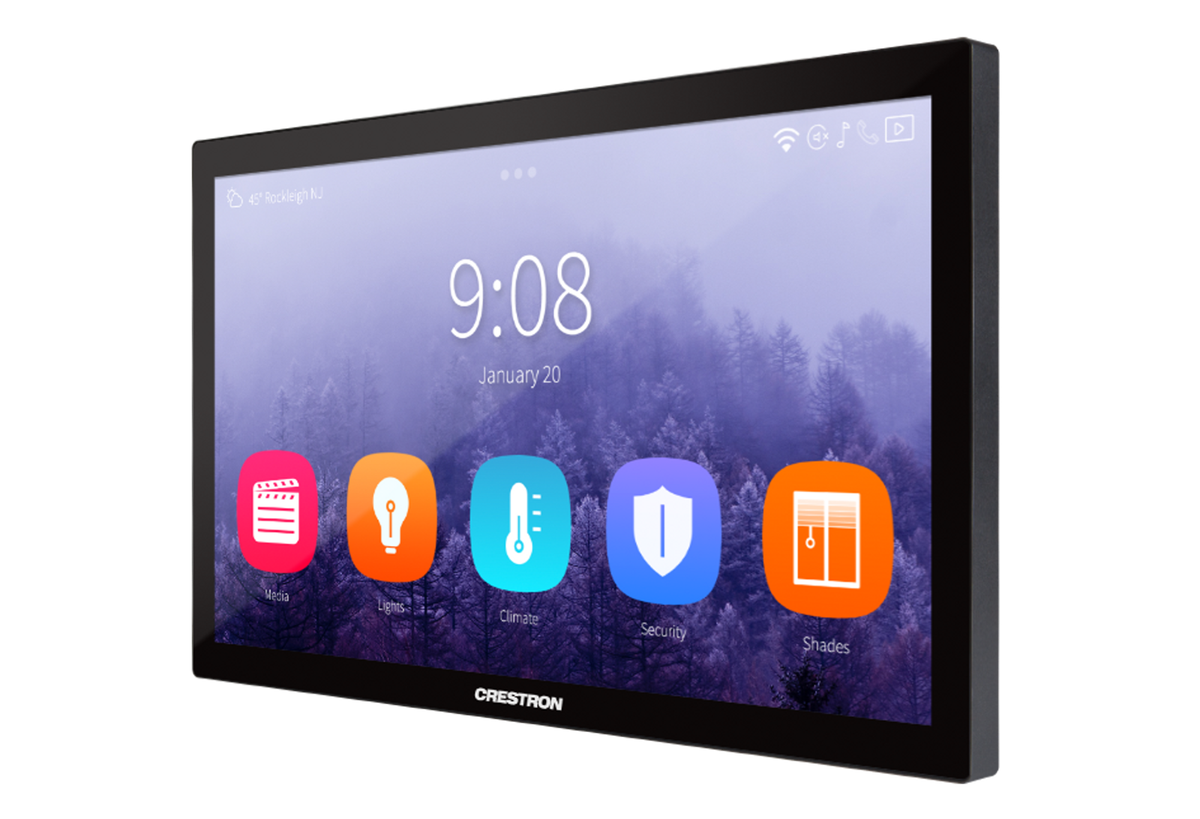

The TSD-2220 is a 21.5 inch Full HD capacitive touch display that becomes a control surface when paired with a Crestron digital graphics engine, either the DGE-100 or the DM-DGE-200-C (each sold separately). The engine renders the Smart Graphics interface and feeds the panel over a single HDMI input that accepts sources up to 4K60 UHD and downscales them to the 1080p screen, with HDCP 2.2 support and built-in stereo speakers.
The display carries wide 178 degree viewing angles and a slim, rugged chassis. It mounts on VESA 100 x 100 mm and VESA 200 x 100 mm patterns using wall brackets, desk stands, or articulating arms (mounts not included), so it can serve a huddle room, reception desk, or operations wall from the same hardware.
| Display | 21.5 in. (546 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1080 pixels, 16:9 Full HD |
| Touch | Capacitive multi-touch |
| Viewing Angle | 178 degrees horizontal and vertical |
| Video Input | Single HDMI, up to 4K60 UHD (3840 x 2160 at 60 Hz), HDCP 2.2, downscaled |
| Audio | Built-in stereo speakers |

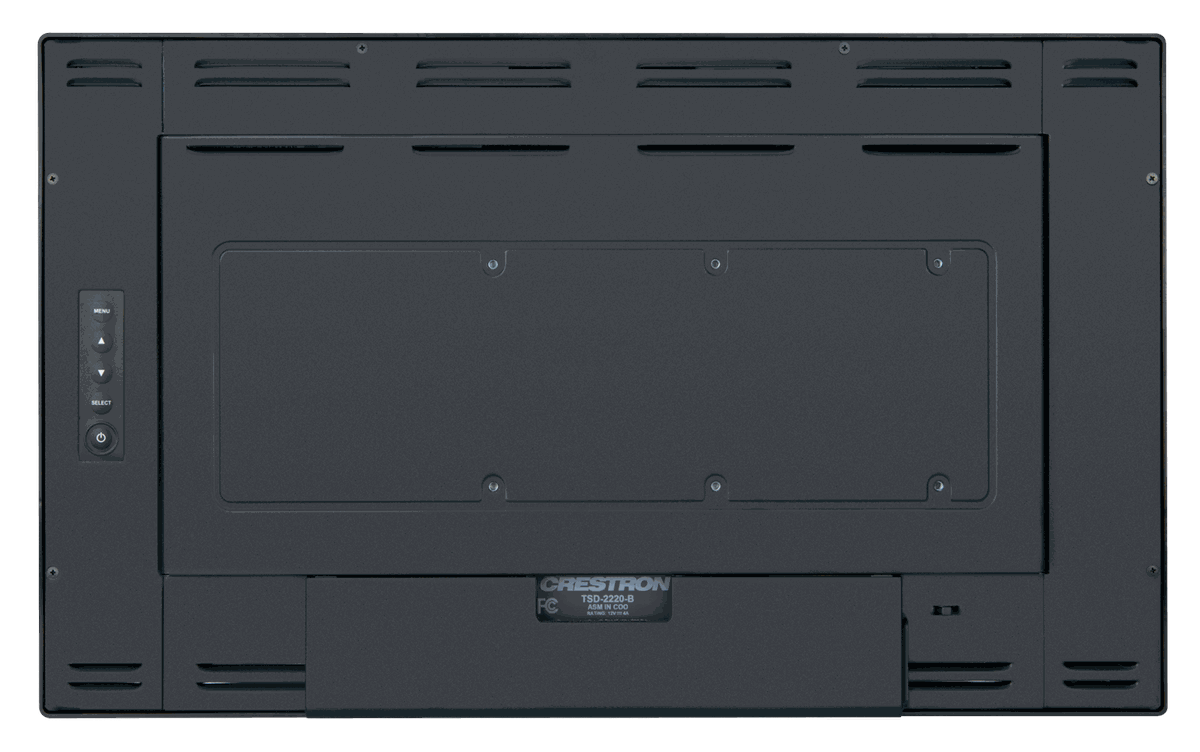

| Mounting | VESA 100 x 100 mm and 200 x 100 mm (mounts not included) |
| Requires | Crestron DGE-100 or DM-DGE-200-C graphics engine (sold separately) |
