Crestron DGE-100

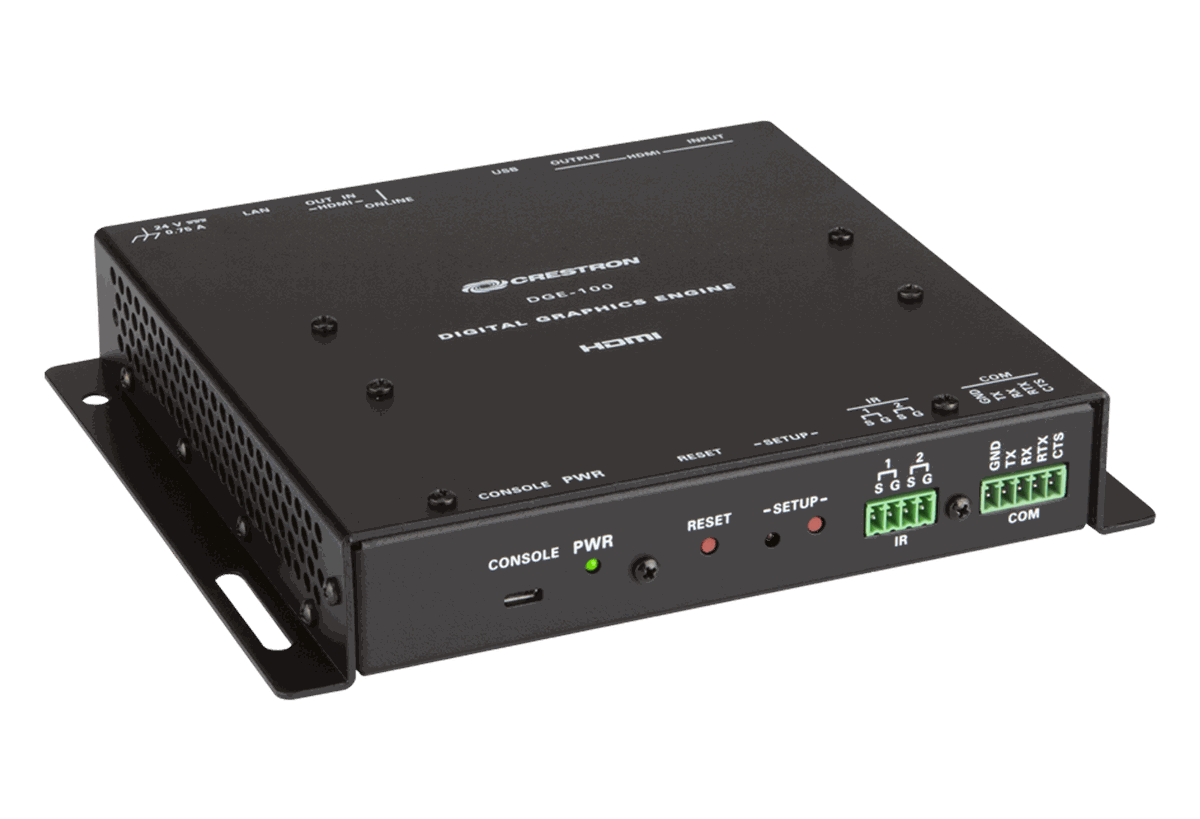

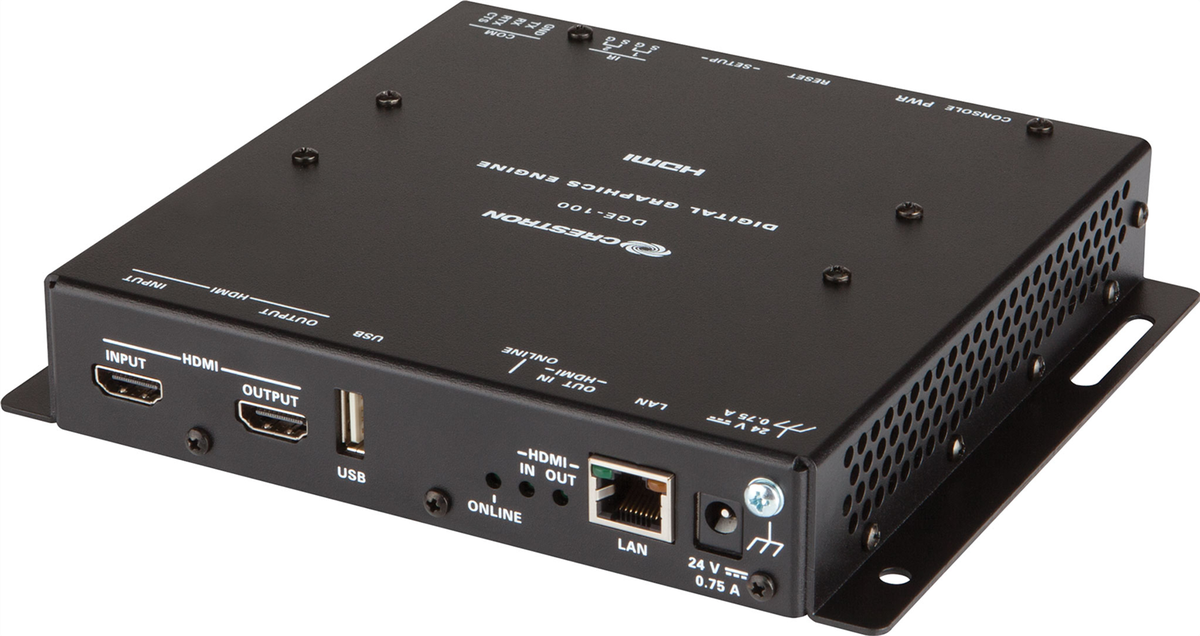

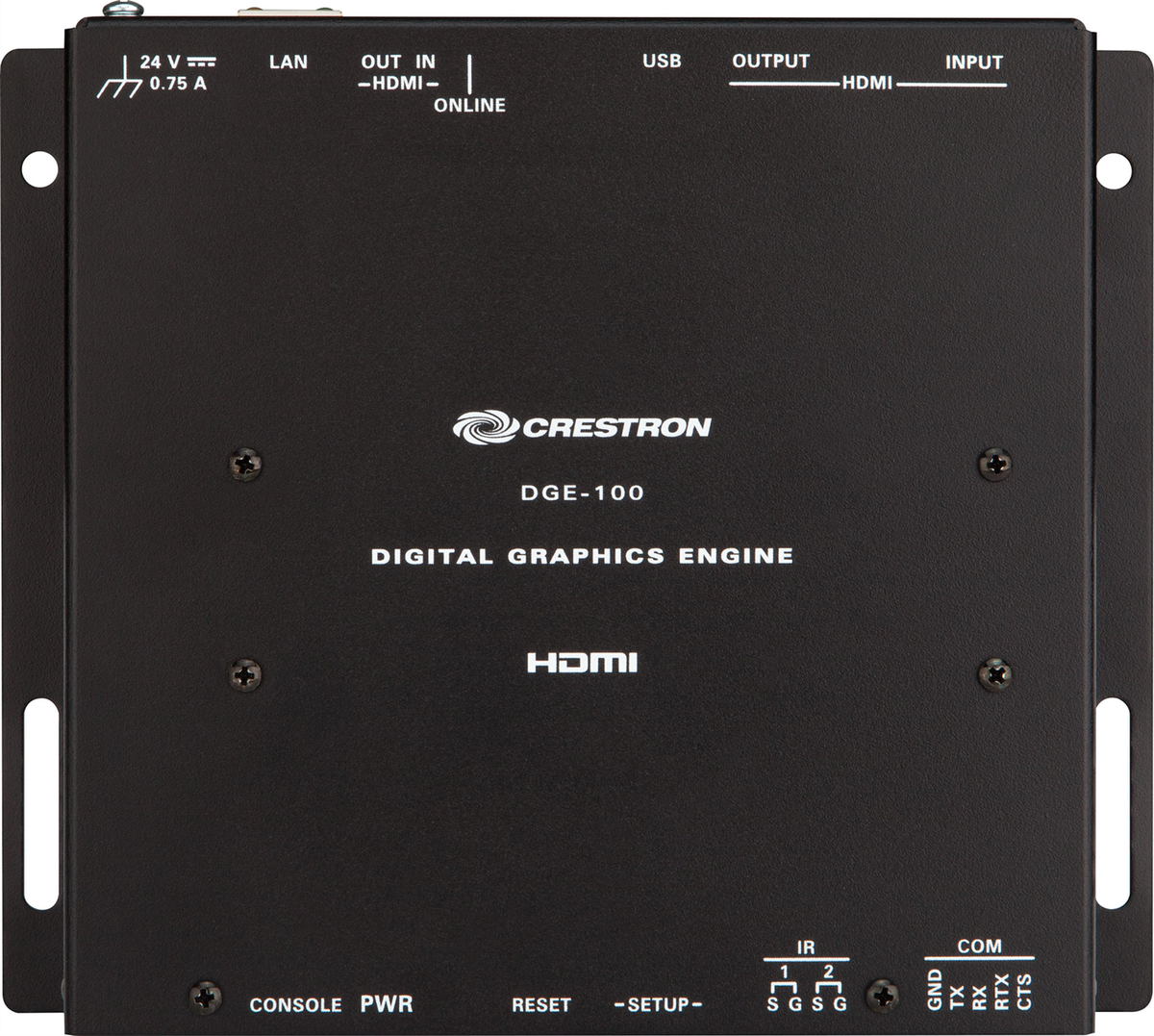

The Crestron DGE-100 is a digital graphics engine that turns a Crestron TSD-2220 or a third-party HD display into a full Crestron touch screen controller. It renders the Smart Graphics interface used to operate audio, video, lighting, shades, HVAC, and security, and drives an HD display over HDMI at resolutions up to 1080p60 and WUXGA. Its low-profile metal housing is surface-mountable, so it tucks behind a panel, under a table, or inside a lectern.

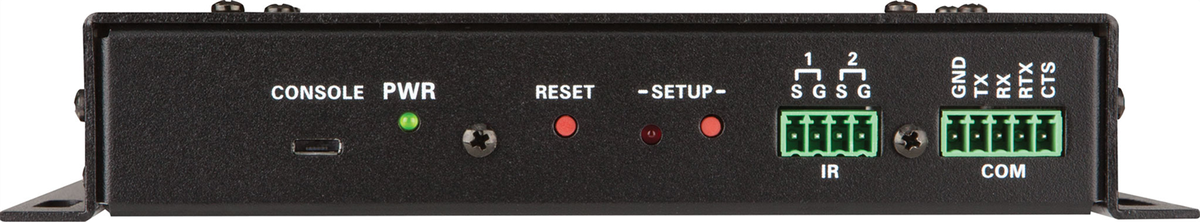

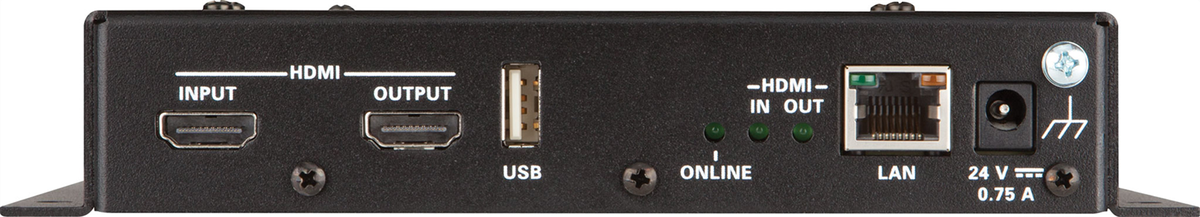

Beyond control graphics, the DGE-100 supports dual-window video, on-screen annotation, audio feedback, and a web browser. An HDMI input accepts an HD video source, and the engine handles up to two simultaneous streaming inputs with a combined bitrate of 25 Mbps. LED indicators on the housing report status at a glance.
| Function | Digital graphics engine / touch screen controller |
|---|---|
| Video Input | HDMI up to 1080p60 |
| HDMI Output | Up to 1080p60 and WUXGA |
| Streaming | Up to 2 simultaneous inputs, 25 Mbps combined |
| Graphics | Crestron Smart Graphics |
| Compatible Displays | Crestron TSD-2220 and third-party touch screens |
| Dimensions | 7.40 x 1.38 x 6.42 in (188 x 35 x 163 mm) |
| Weight | 554 g (1.22 lb) |
