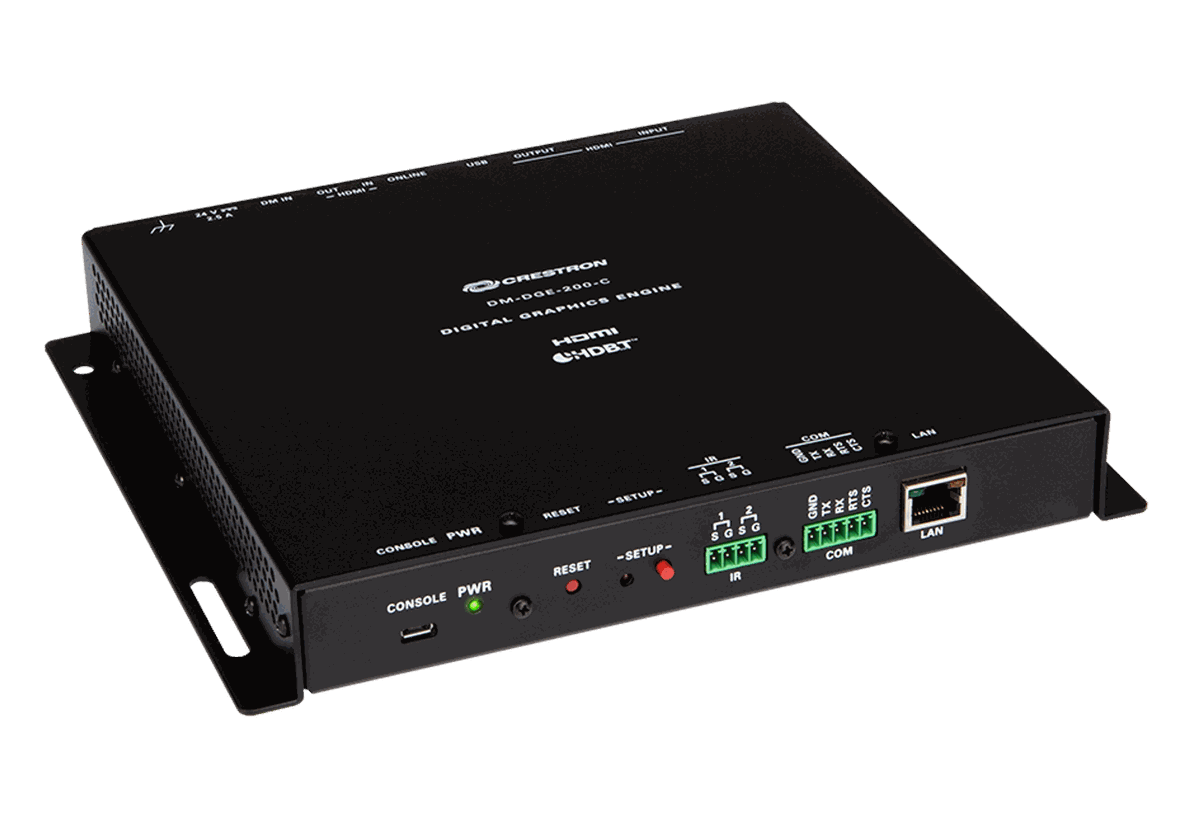

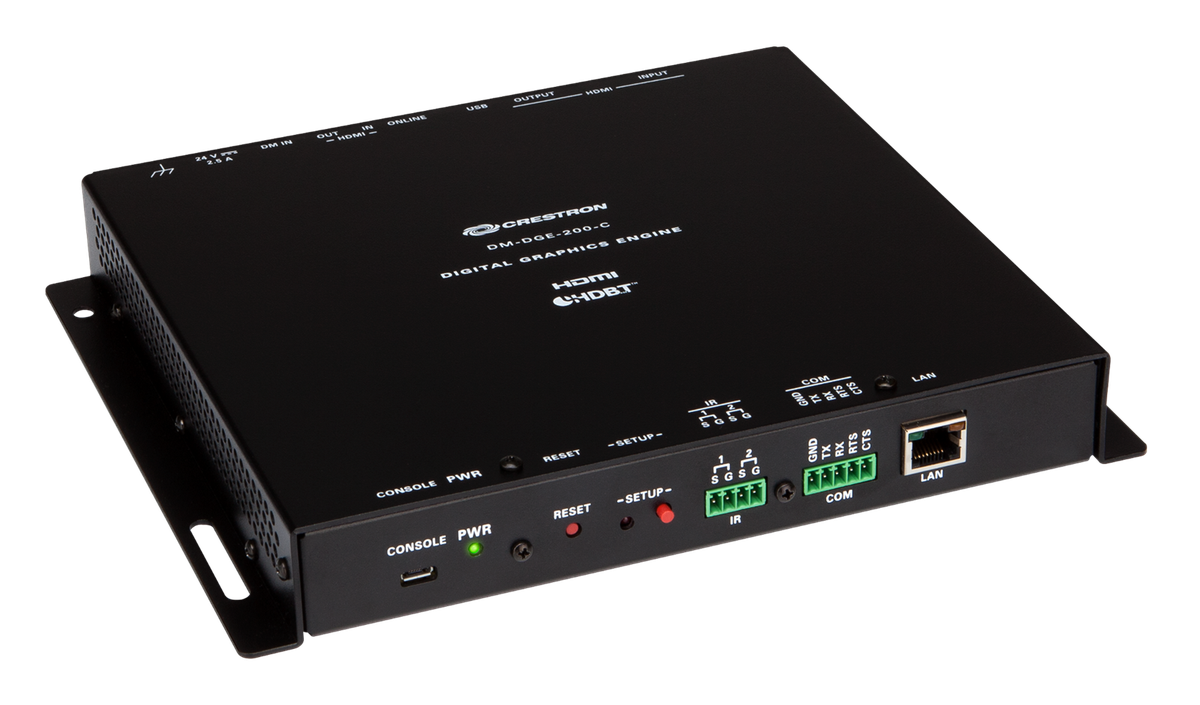

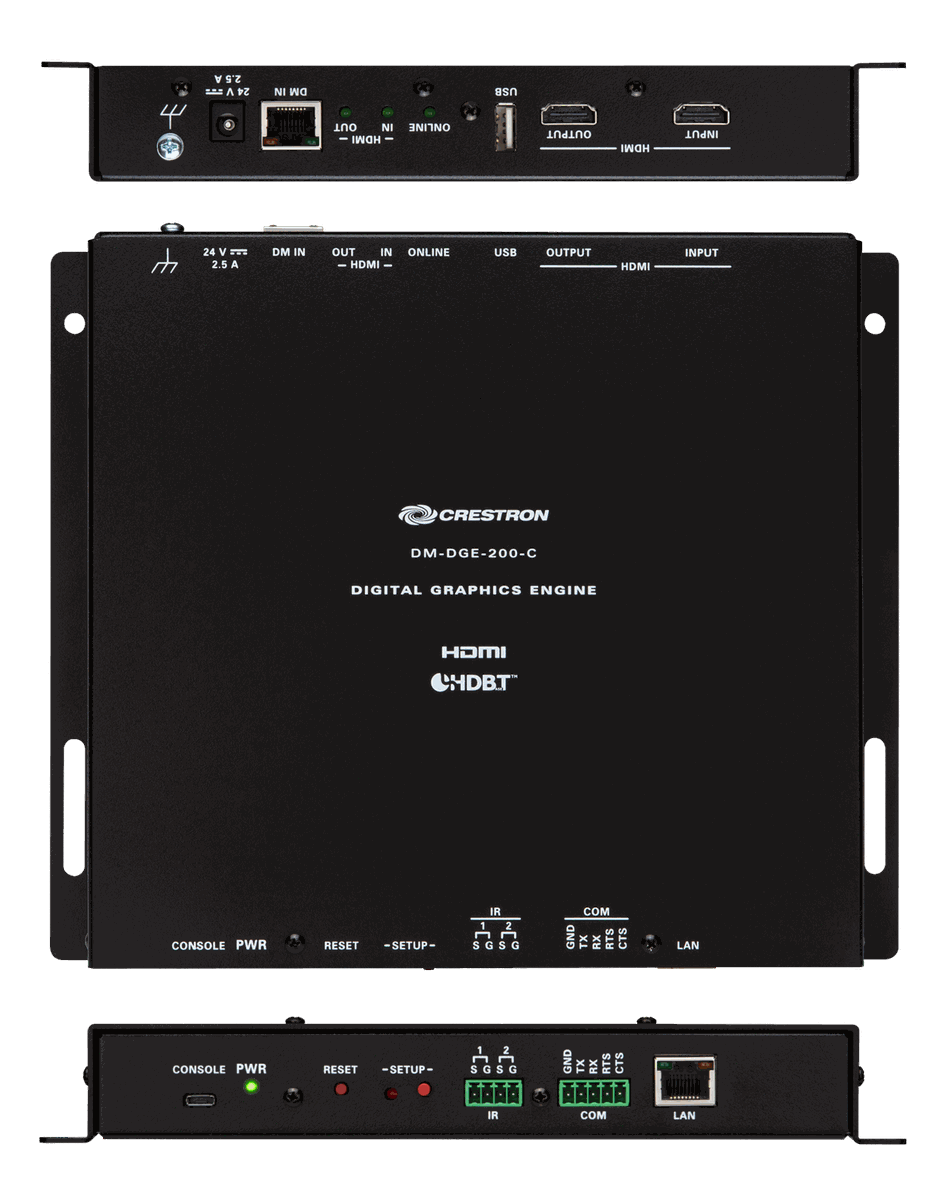

Crestron DM-DGE-200-C
The Crestron DM-DGE-200-C is a digital graphics engine that pairs a Crestron TSD-2220 or third-party HD display with the DigitalMedia signal path, turning the display into a touch screen controller that also shows live 4K video. Its DM 8G+ input accepts a 4K UHD or DCI 4K feed carried over CAT cable from a DM transmitter or switcher, while a separate HDMI input takes an AirMedia gateway or other HD source for on-screen presentation.
Running Crestron Smart Graphics, the engine renders the control interface for audio, video, lighting, shades, HVAC, and security, and outputs to the display over HDMI at up to 1080p60 or 4K UHD at 30 Hz. The low-profile, surface-mountable housing installs discreetly behind a flat panel, under a table, or inside a lectern or rack.
| Function | Digital graphics engine with 4K DM 8G+ input |
|---|---|
| DM Input | DM 8G+, supports 4K UHD and DCI 4K sources |
| HDMI Input | For AirMedia gateway or HD source |
| HDMI Output | Up to 1080p60 or 4K UHD 3840x2160 at 30 Hz |
| Graphics | Crestron Smart Graphics |
| Compatible Displays | Crestron TSD-2220 and third-party touch screens |
| Dimensions | 7.93 x 9.29 x 1.36 in (203 x 236 x 35 mm) |
