Crestron

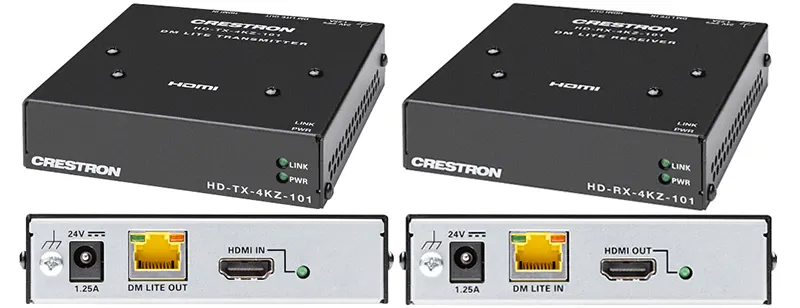

HD-TX-4KZ-101
HD-RX-4KZ-101
HDMI Extension Over CATx Cable

Transmitter
The HD‑TX‑4KZ‑101 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD‑TX‑4KZ‑101 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD‑TX‑4KZ‑101 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD‑TX‑4KZ‑101. In addition, control system programming and .AV Framework™ software support of the HD‑TX‑4KZ‑101 is hosted by the switcher.

Receiver
The HD-RX-4KZ-101 is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite® transmitter or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-RX-4KZ- 101 to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-RX-4KZ-101 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-RX-4KZ-101. In addition, control system programming and .AV Frameworkâ„¢ software support of the HD-RX-4KZ-101 is hosted by the switcher.
