Crestron DM-NVX-SW-C310 DM NVX 4K60 Network AV Encoder/Decoder CPU-Based Software, Single Stream

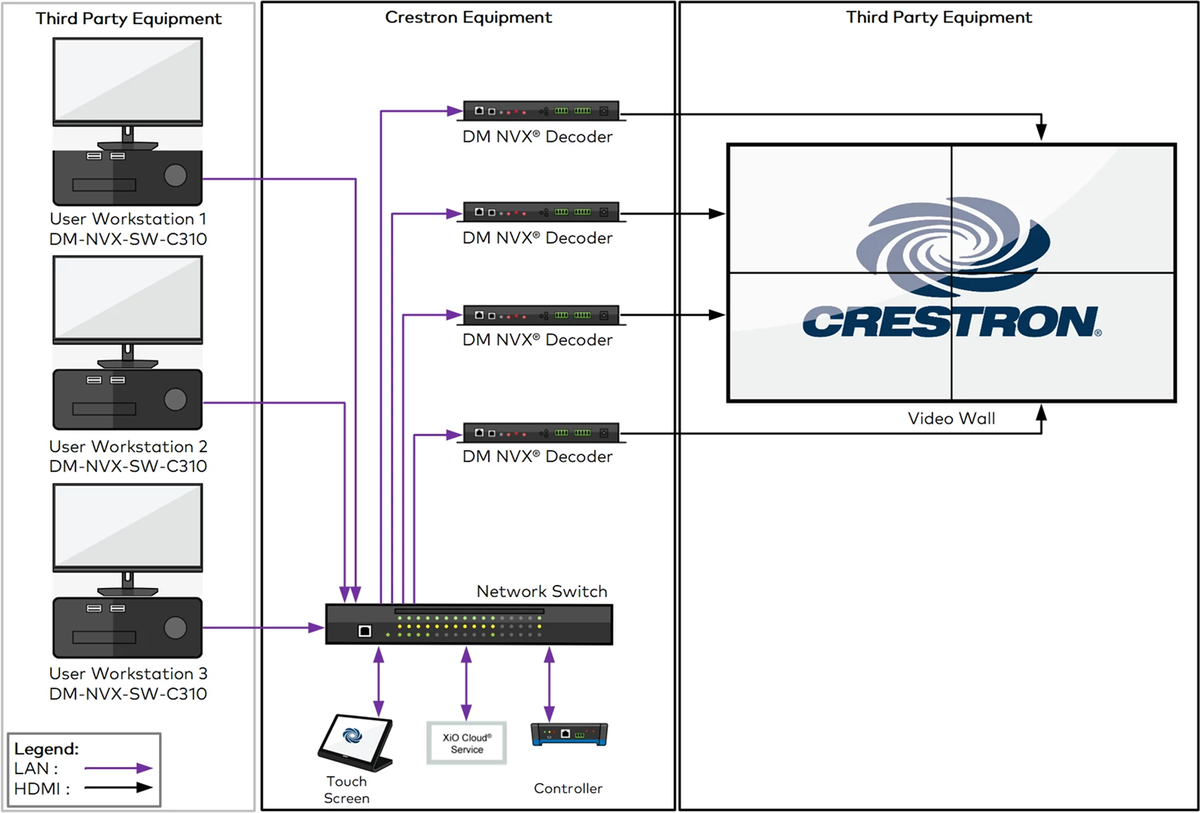

The Crestron DM-NVX-SW-C310 is a DM NVX 4K60 Network AV Encoder/Decoder CPU-Based Software, Single Stream. DM NVX carries the signal as a stream over standard Gigabit Ethernet, which makes the network switch the matrix and lets a system grow by adding endpoints instead of replacing a chassis.

Video runs to Up to 4096x2160@60Hz (DCI 4K60). Copy protection is AES-128, PKI. Bit rates are 150 to 500 Mbps. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Video Resolutions	Up to 4096x2160@60Hz (DCI 4K60)
Bit Rates	150 to 500 Mbps
Streaming Protocols	RTP, SDP
Copy Protection	AES-128, PKI
Container	MPEG-2 transport stream (.ts)
Session Initiation	Multicast via secure RTSP
Hardware	Processor: Intel Core i7, 12th generation with 12 cores; RAM: Dual-channel memory, 2 x 8 GB; Wired Ethernet Network Interface: 1 Gb
Operating System	Windows 10 or Windows 11, 64 bit
