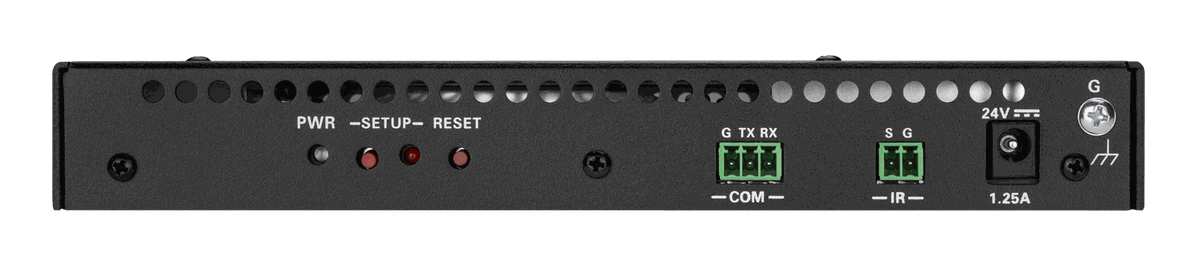

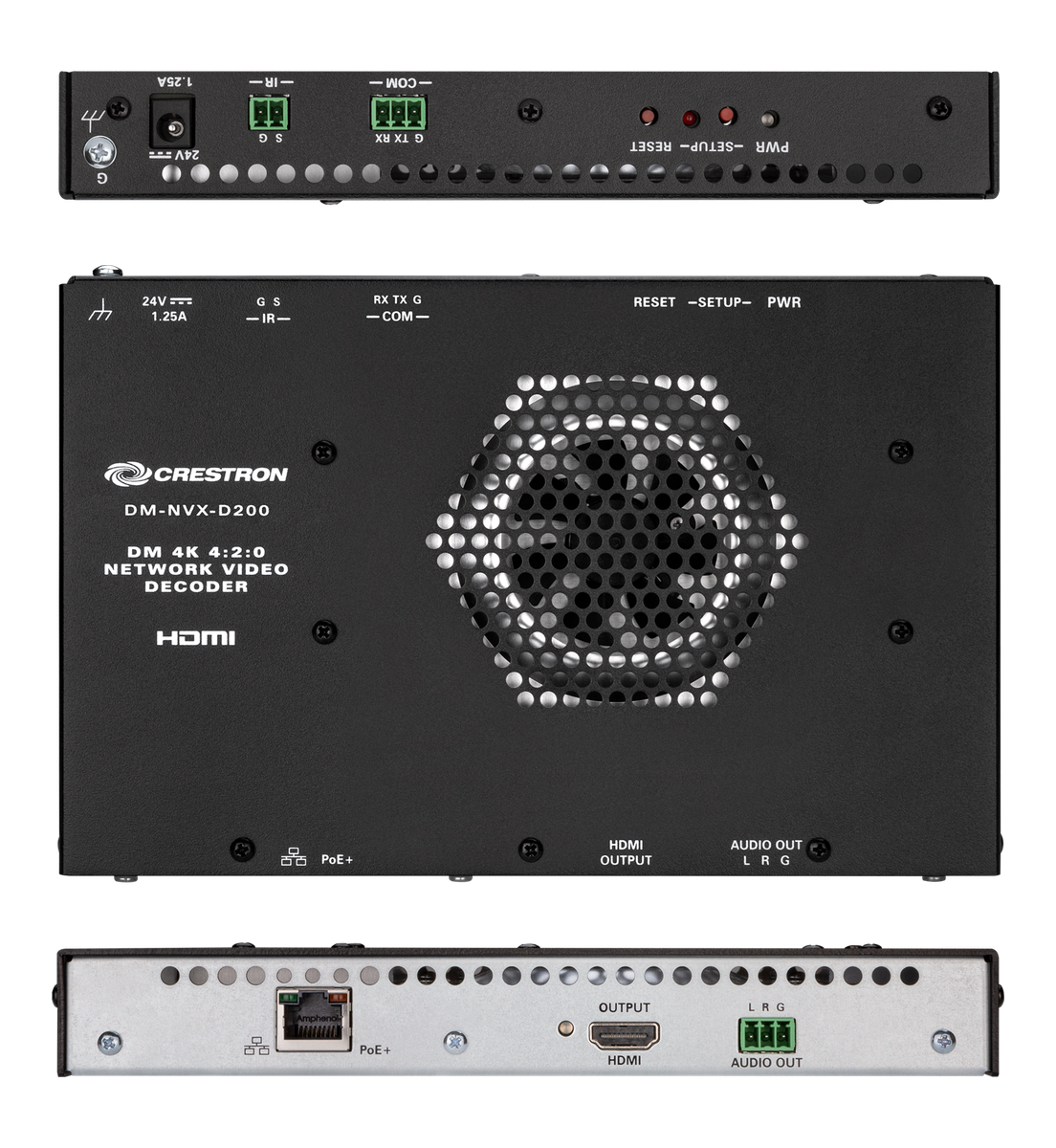

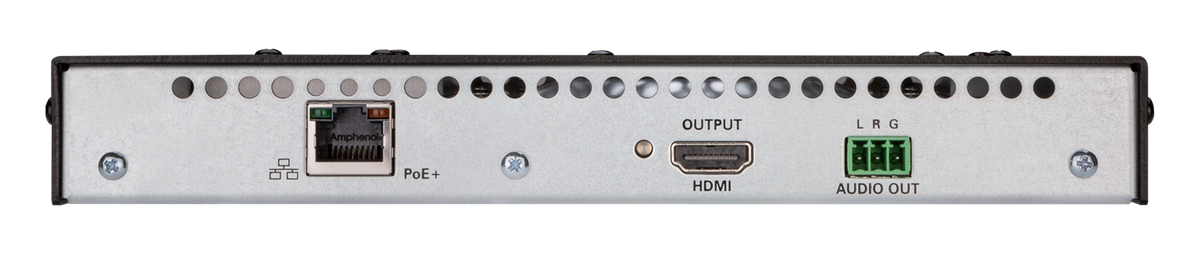

Crestron DM-NVX-D200 DM NVX 4K60 4:2:0 Network AV Decoder with Scaler

The Crestron DM-NVX-D200 is a DM NVX 4K60 4:2:0 Network AV Decoder with Scaler. DM NVX carries the signal as a stream over standard Gigabit Ethernet, which makes the network switch the matrix and lets a system grow by adding endpoints instead of replacing a chassis.

Video runs to HDMI with Deep Color and 4K60 4:2:0 support. Outputs carry HDMI, analog stereo. Audio formats are Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound). It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Video ResolutionsHDMI with Deep Color and 4K60 4:2:0 support
Audio FormatsMultichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound)
Bit RatesBased on the stream received from the encoder
Streaming ProtocolsRTP, SDP
Copy ProtectionHDCP 2.3 , AES-128, PKI
Output Signal TypesHDMI, analog stereo
Ethernet(1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE+ PD (powered device) port; IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant; Compatible with PoE+ compliant Ethernet switch or third-party PoE+ PSE
ContainerMPEG-2 transport stream (.ts)
Crestron DM NVX® Series: The Only Network AV Solution that Meets All Your Needs
CTI | Crestron DM NVX® Tool: Advanced Features
CTI | Crestron DM NVX® Tool: Introduction
