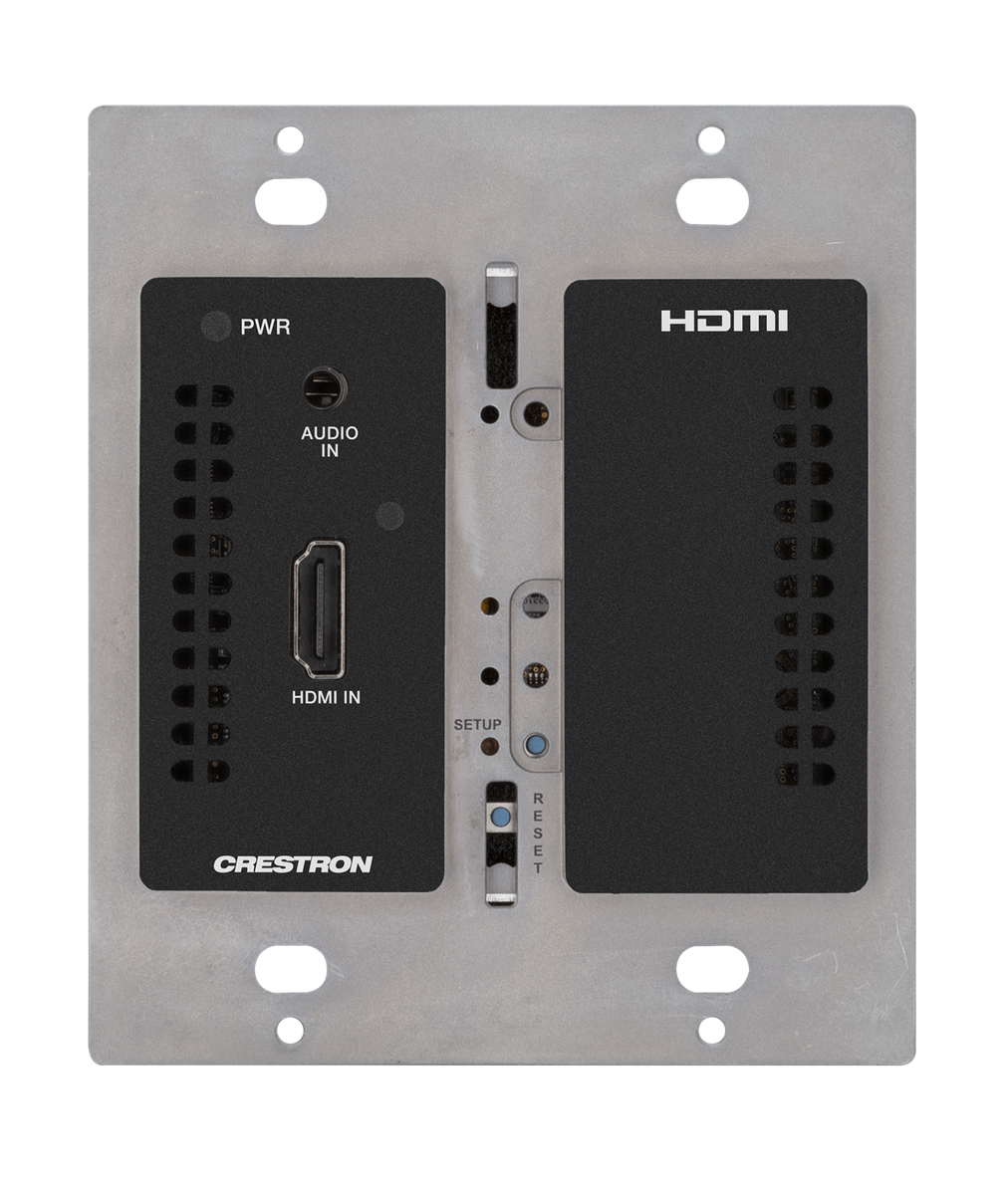

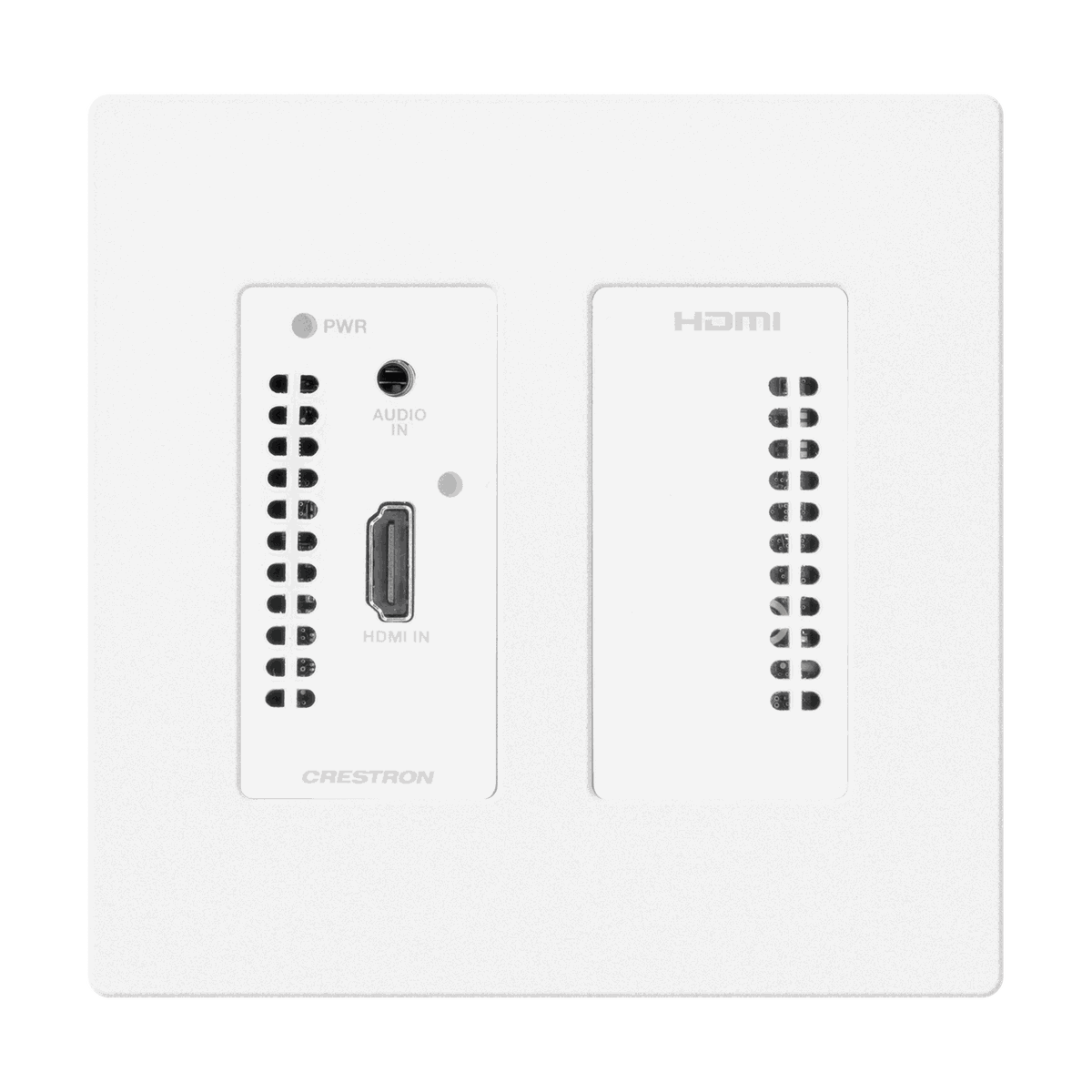

Crestron DM-NVX-E20-2G DM NVX 4K60 4:2:0 Network AV Encoder, Wall Plate

The Crestron DM-NVX-E20-2G-B-T is a DM NVX 4K60 4:2:0 Network AV Encoder, Wall Plate. DM NVX carries the signal as a stream over standard Gigabit Ethernet, which makes the network switch the matrix and lets a system grow by adding endpoints instead of replacing a chassis.

Video runs to HDMI with Deep Color and 4K60 4:2:0 support. Inputs accept HDMI (Dual-Mode DisplayPort interface compatible), analog stereo. Audio formats are Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound). It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

Video ResolutionsHDMI with Deep Color and 4K60 4:2:0 support
Audio FormatsMultichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound)
Bit RatesFixed: 200 to 950 Mbps Adaptive: Based on input resolution of the stream
Streaming ProtocolsRTP, SDP
Copy ProtectionHDCP 2.3, AES-128, PKI
Input Signal TypesHDMI (Dual-Mode DisplayPort interface compatible), analog stereo

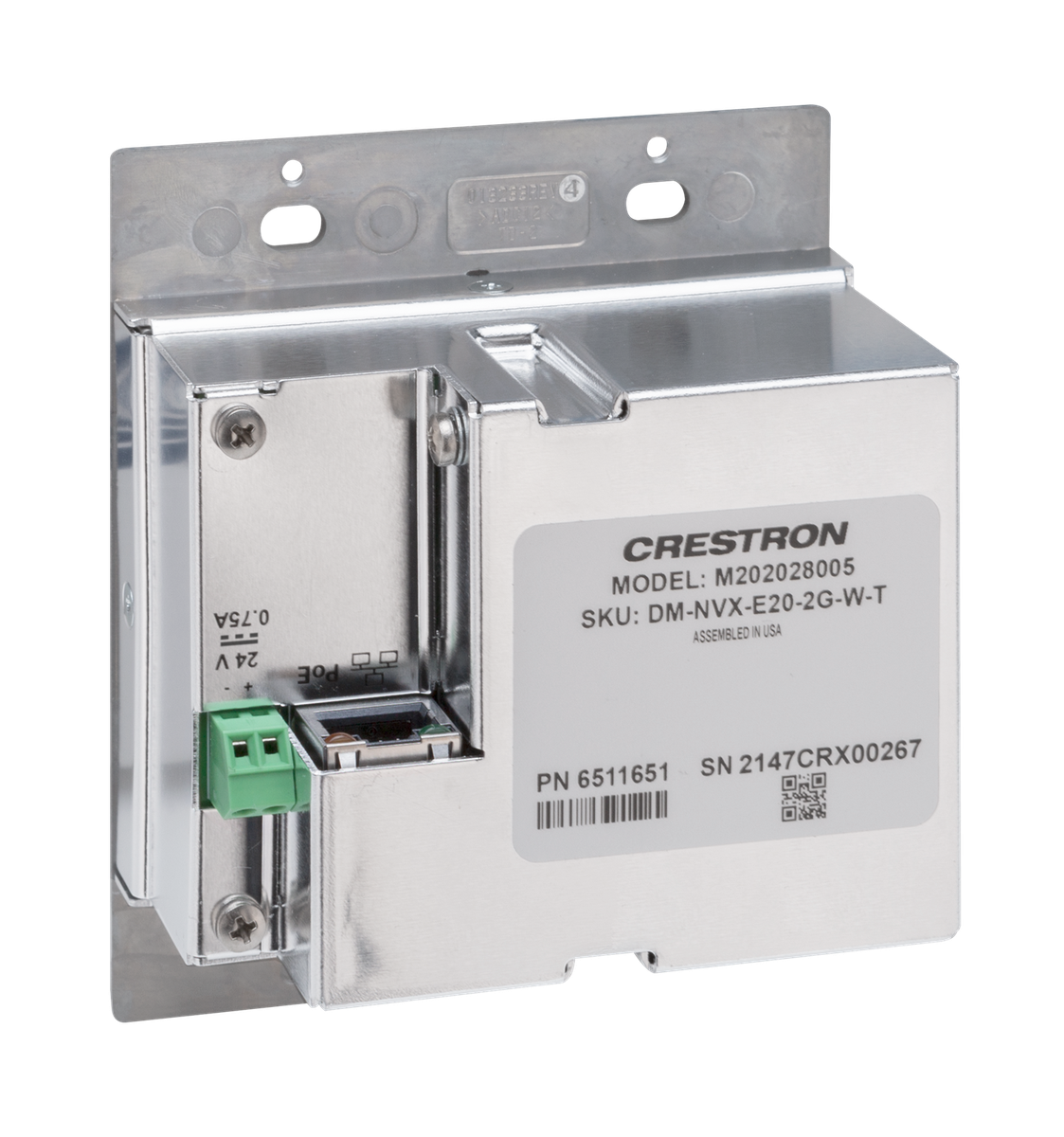

Ethernet(1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE PD (powered device) port; IEEE 802.3af Type 1 PoE Class 3 (12.95 W) compliant; Compatible with PoE compliant Ethernet switch or third-party PoE PSE
ContainerMPEG-2 transport stream (.ts)
