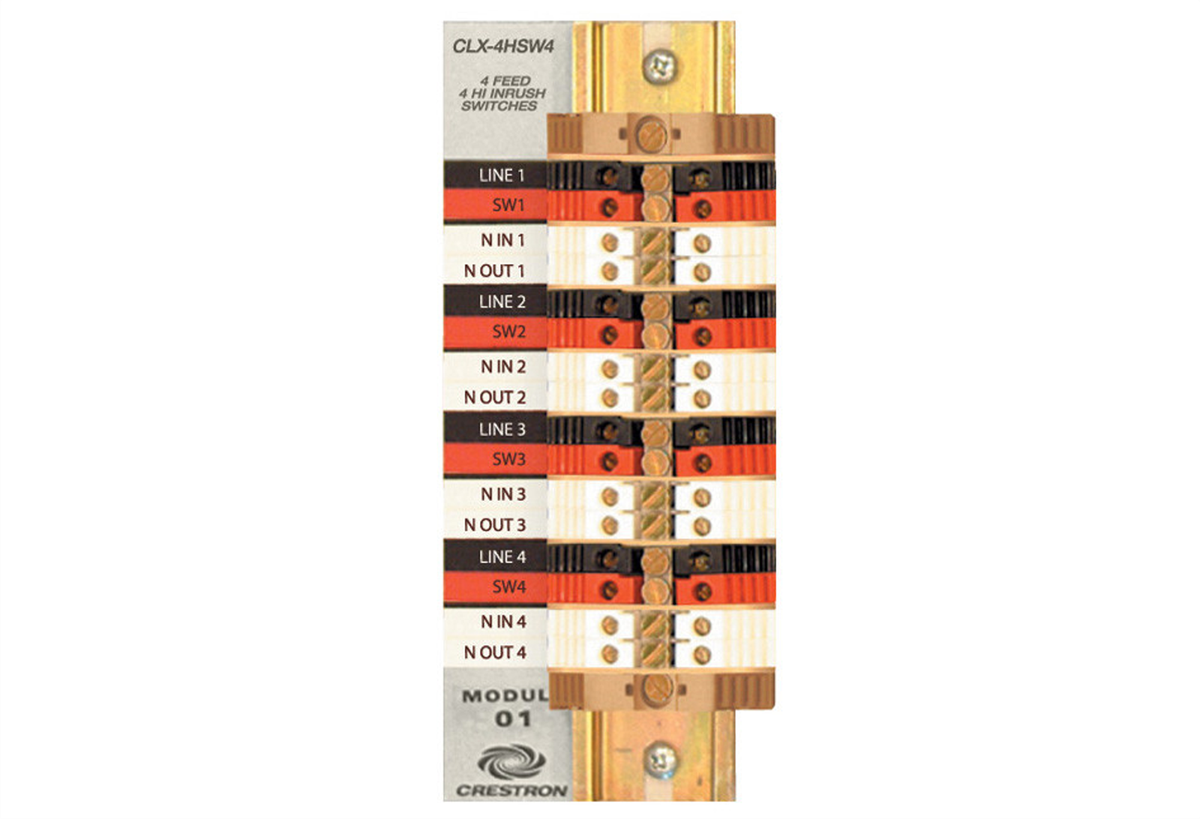

Crestron CLT-4HSW4 Terminal Block for CLX-4HSW4

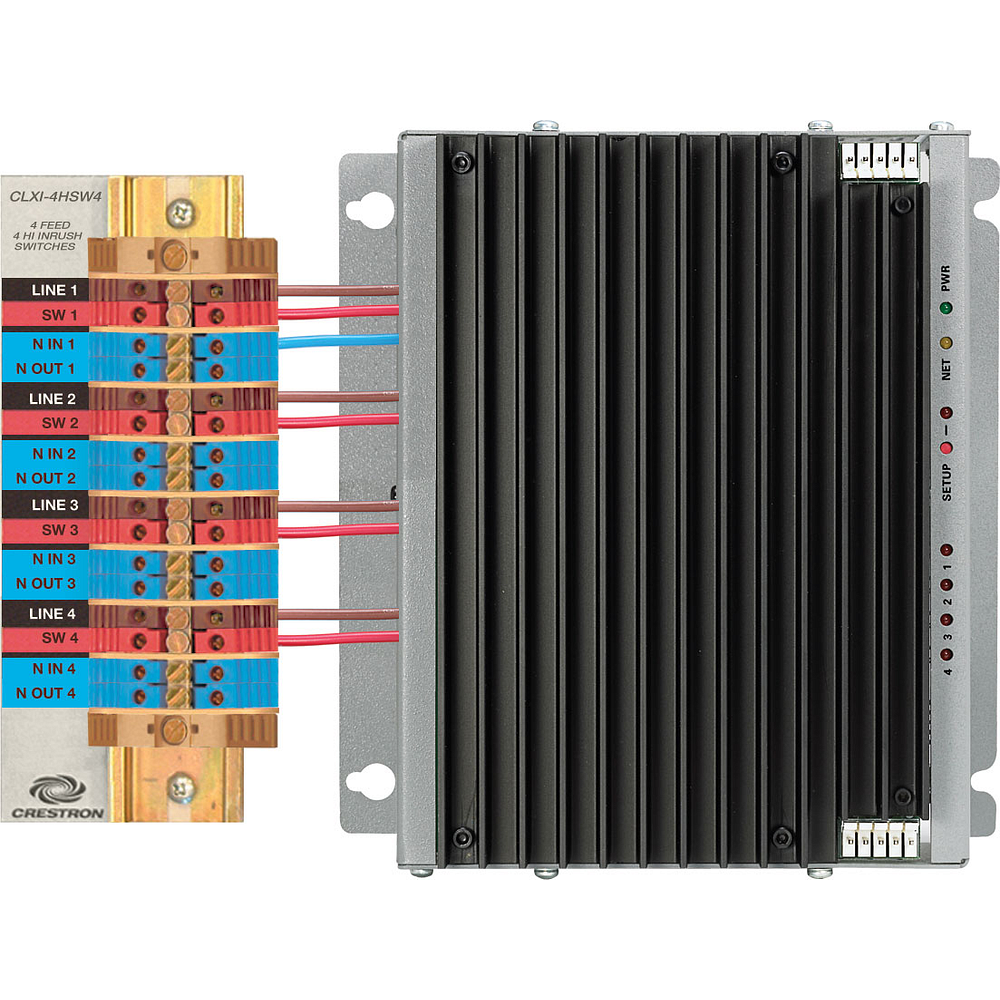

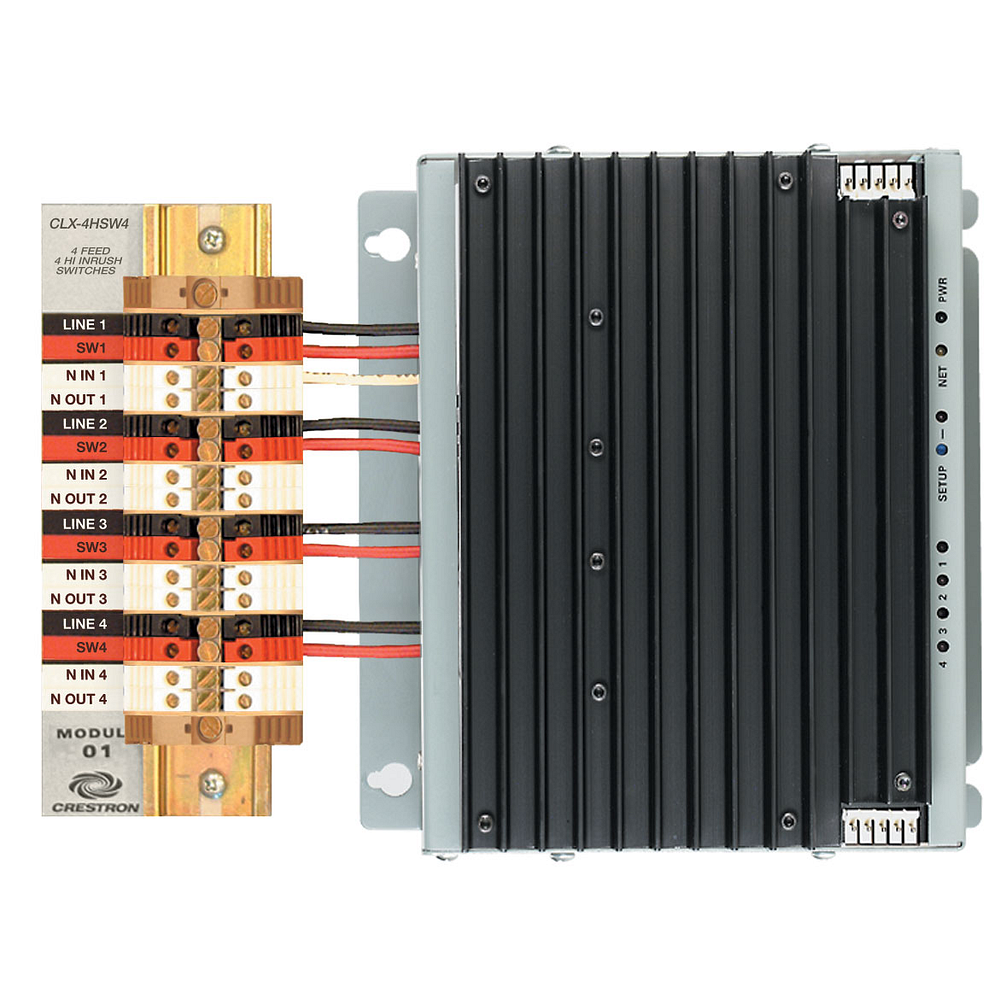

The CLT-4HSW4 is the terminal block that belongs to the CLX-4HSW4, the 4 Channel High-Inrush Switch Module, 4 Feeds, 120V. It mounts on DIN rail inside a CAEN automation enclosure and takes every Class 1 high-voltage conductor for that module, so the line and load wiring is landed and dressed before the control module itself is ever fitted.

Terminals are color coded and the assembly ships with printed label strips and mounting hardware, which is what keeps a full CLX enclosure legible months after the install. Electrical bypass jumpers on each terminal let an electrician test a circuit and protect the module during rough-in. The assembly weighs 0.5 lb (0.23 kg).
