Clear-Com LQ-2W2 LQ Series 2-Port 2-Wire IP Interface

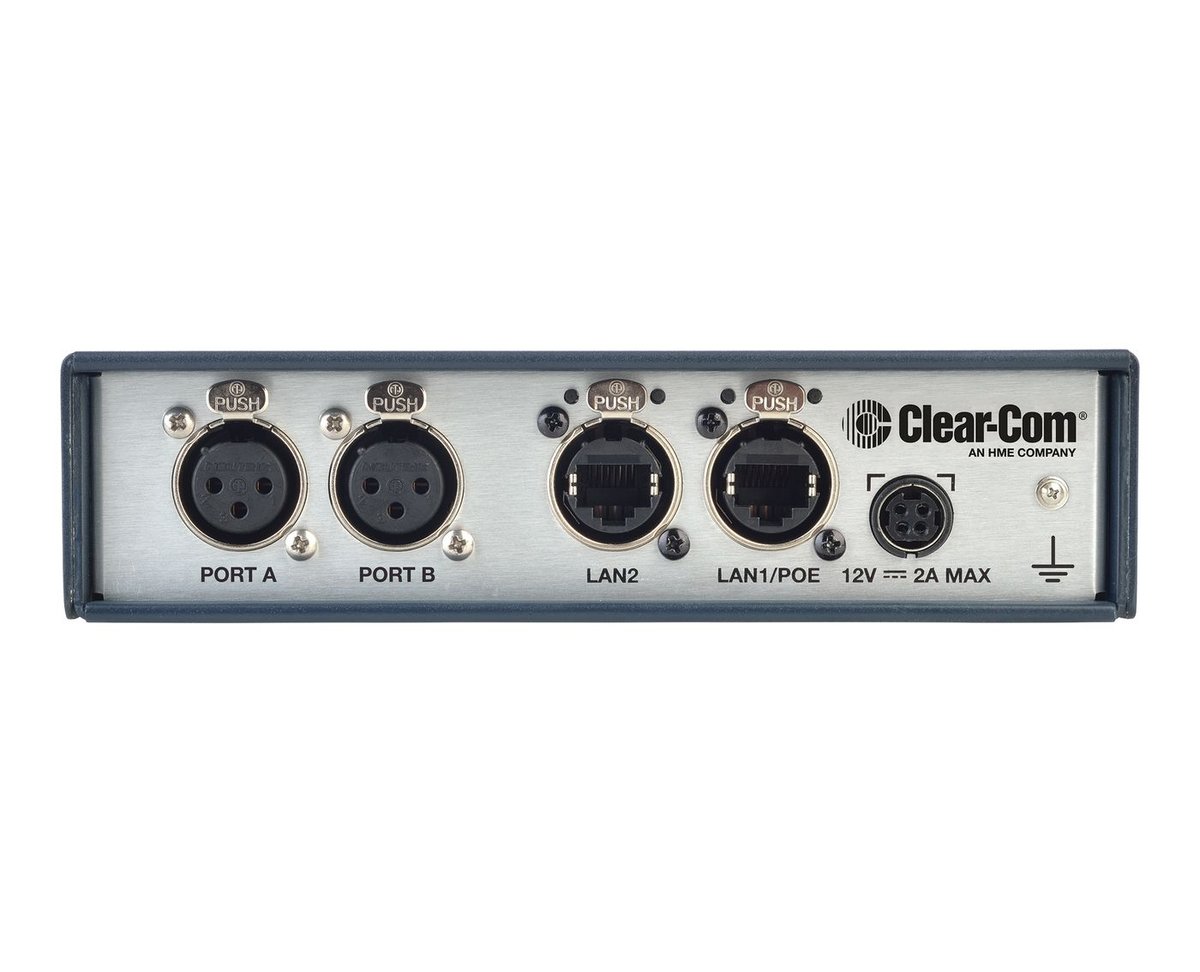

The LQ-2W2 links two 2-wire partyline circuits into an IP network, which is how a legacy Clear-Com or RTS partyline reaches a room, a building or a city it was never wired to. Each port is an XLR-3F on an unbalanced high-impedance partyline interface, and audio crossover mode is software selectable rather than jumpered.

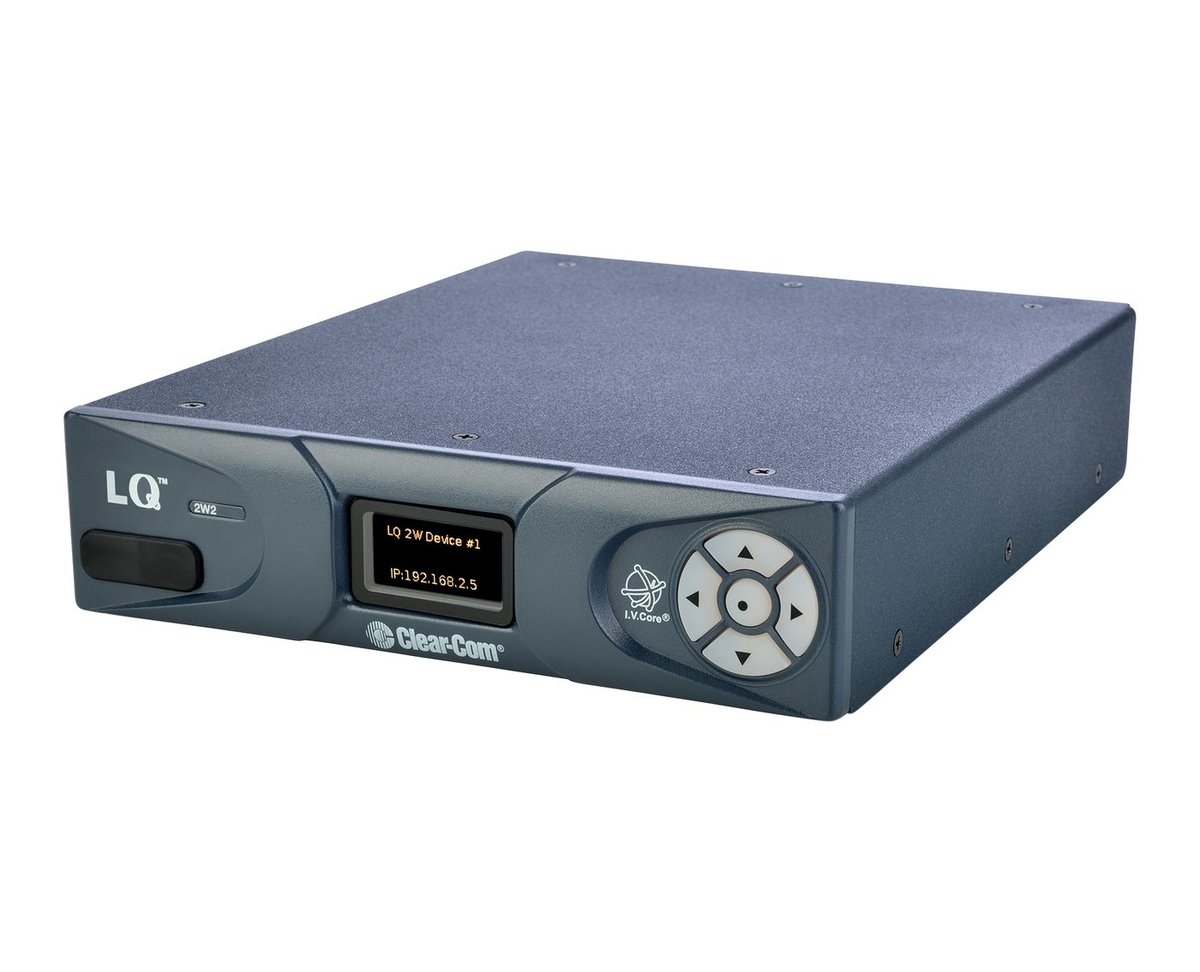

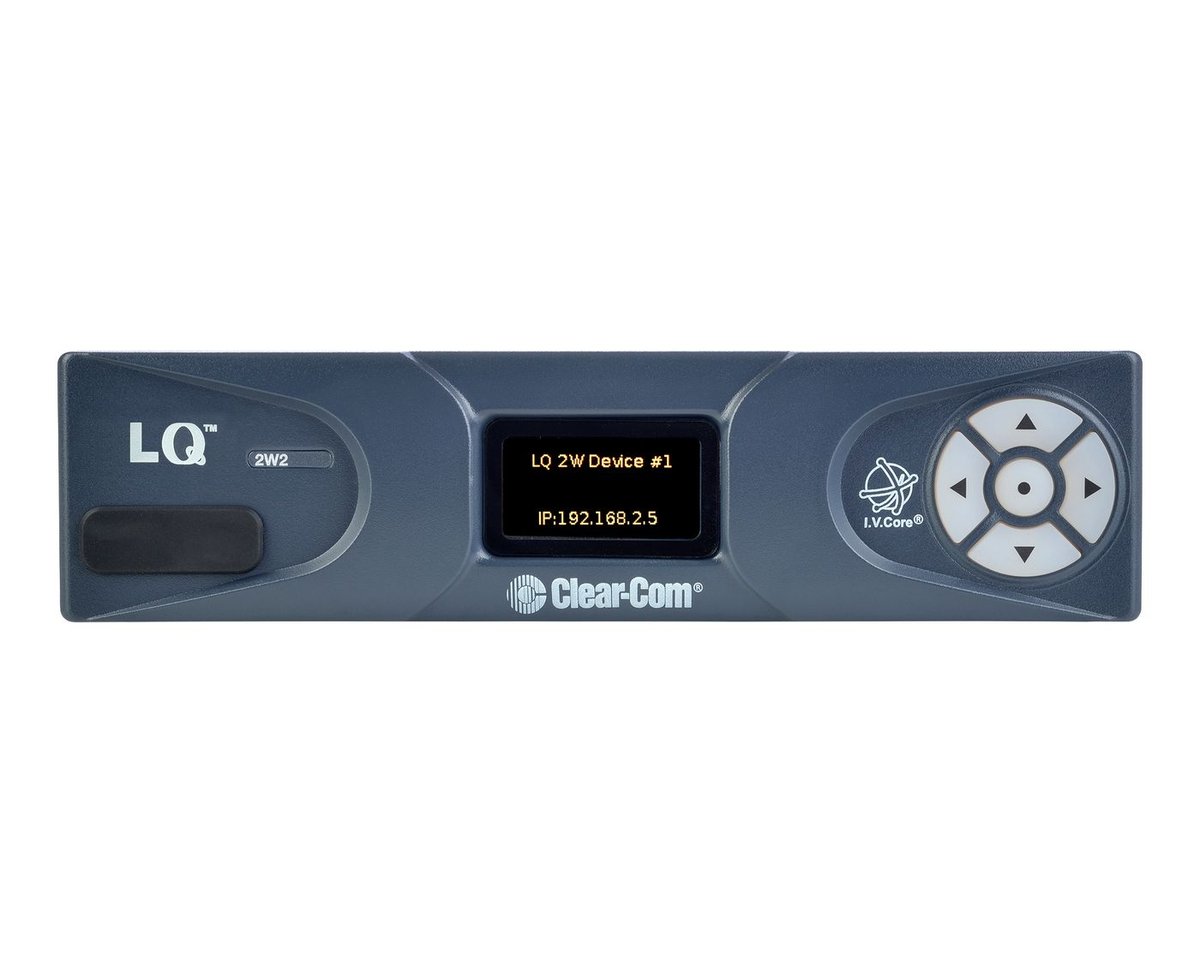

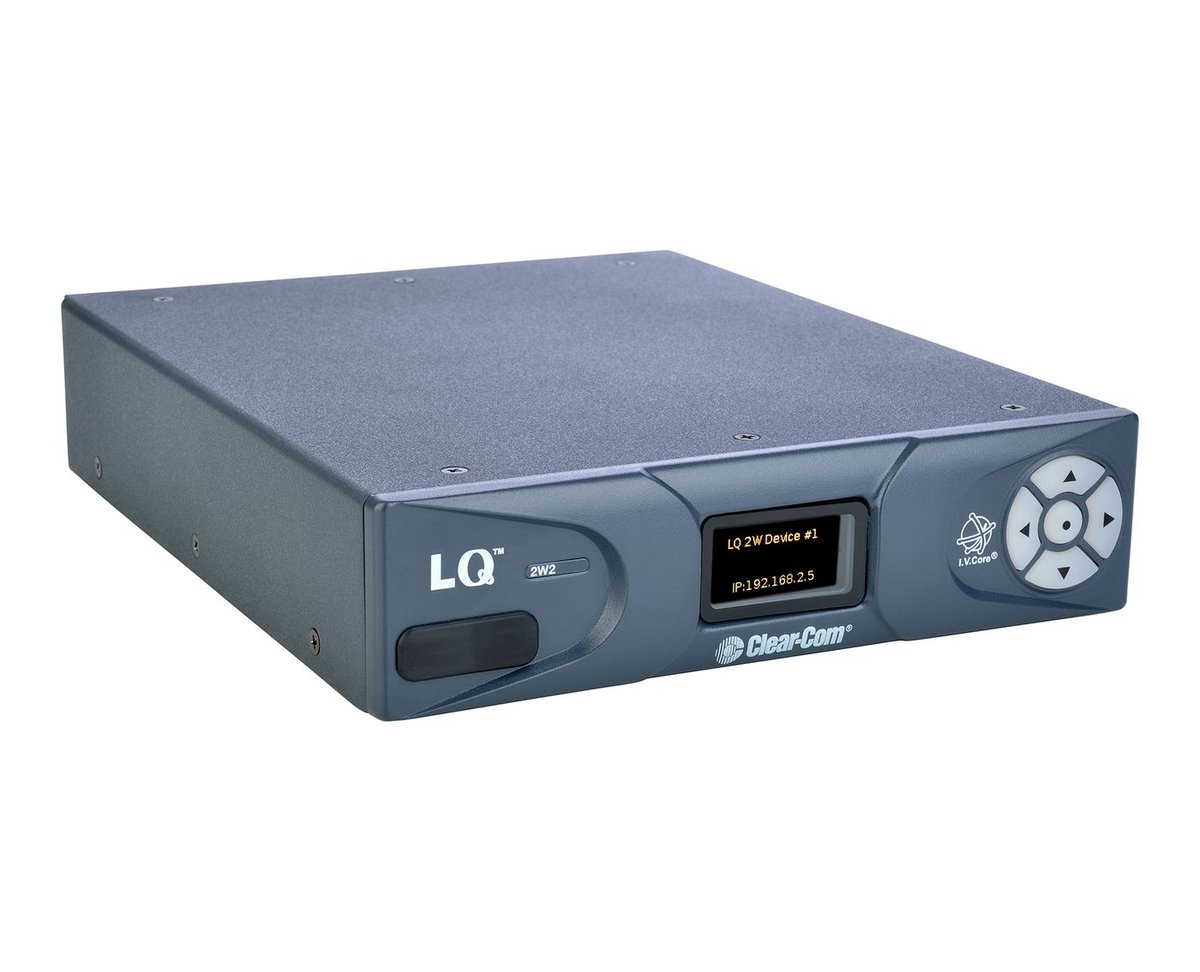

Every LQ unit joins a link group of up to six LQ, Gen-IC or HMS-4X members carrying 24 channels and 24 directs, and each one hosts eight virtual interface ports and eight virtual clients for Agent-IC and Station-IC users. Two bridged RJ45 etherCON LAN ports allow a daisy chain, a yellow OLED display with five backlit buttons handles local configuration, and licences such as SIP8-LQ and VIRTUAL-IC-LQ are applied per unit through CCM.
