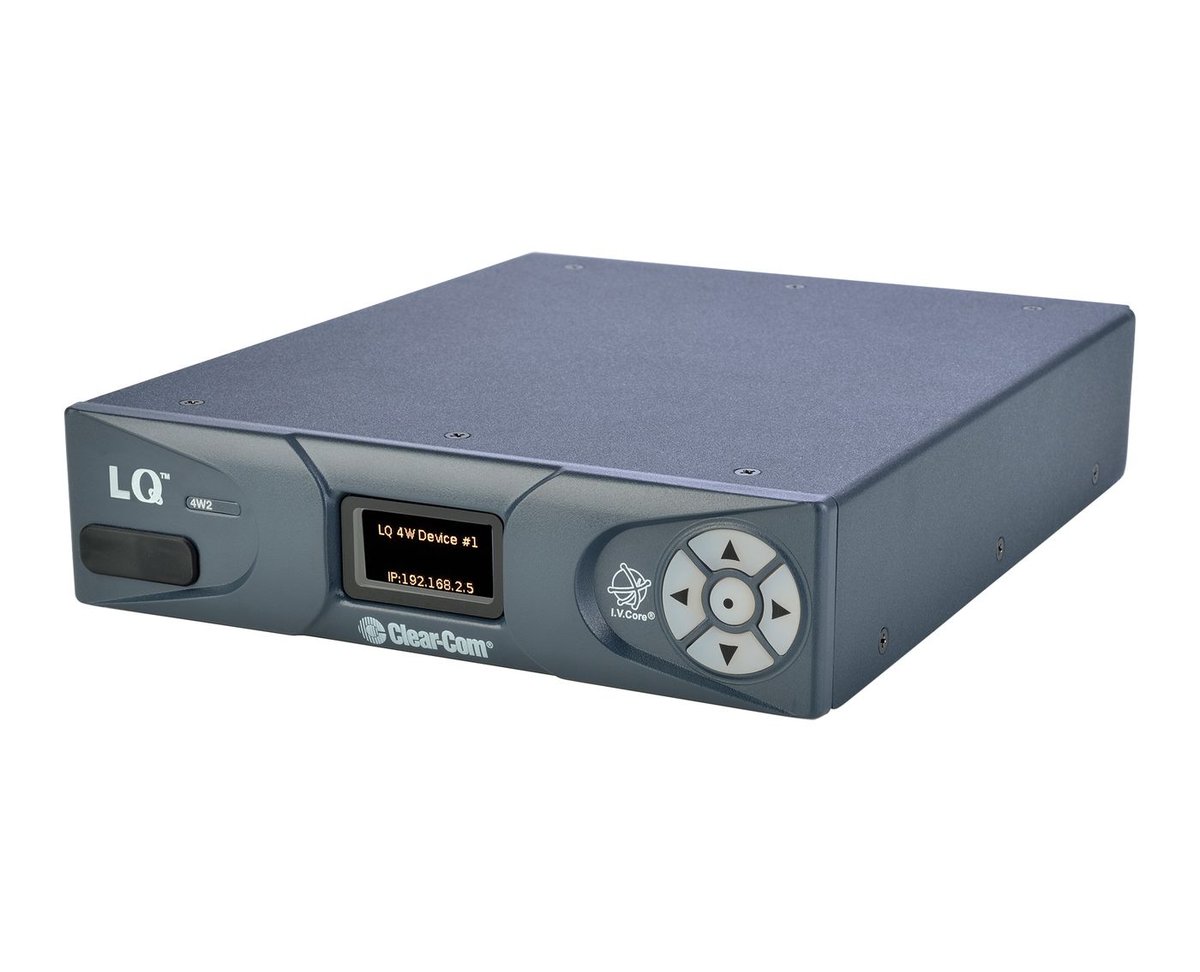

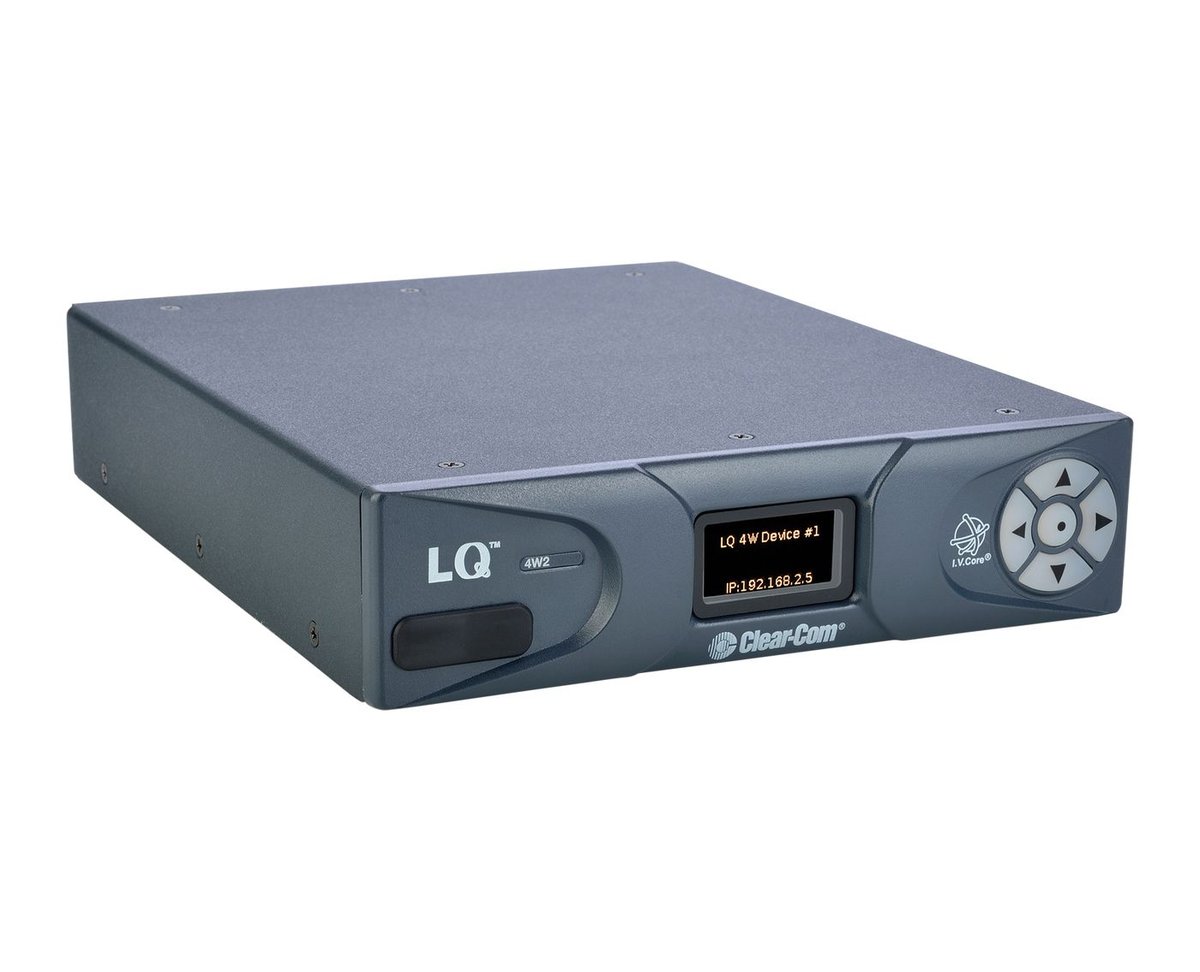

Clear-Com LQ-4W2 LQ Series 2-Port 4-Wire IP Interface

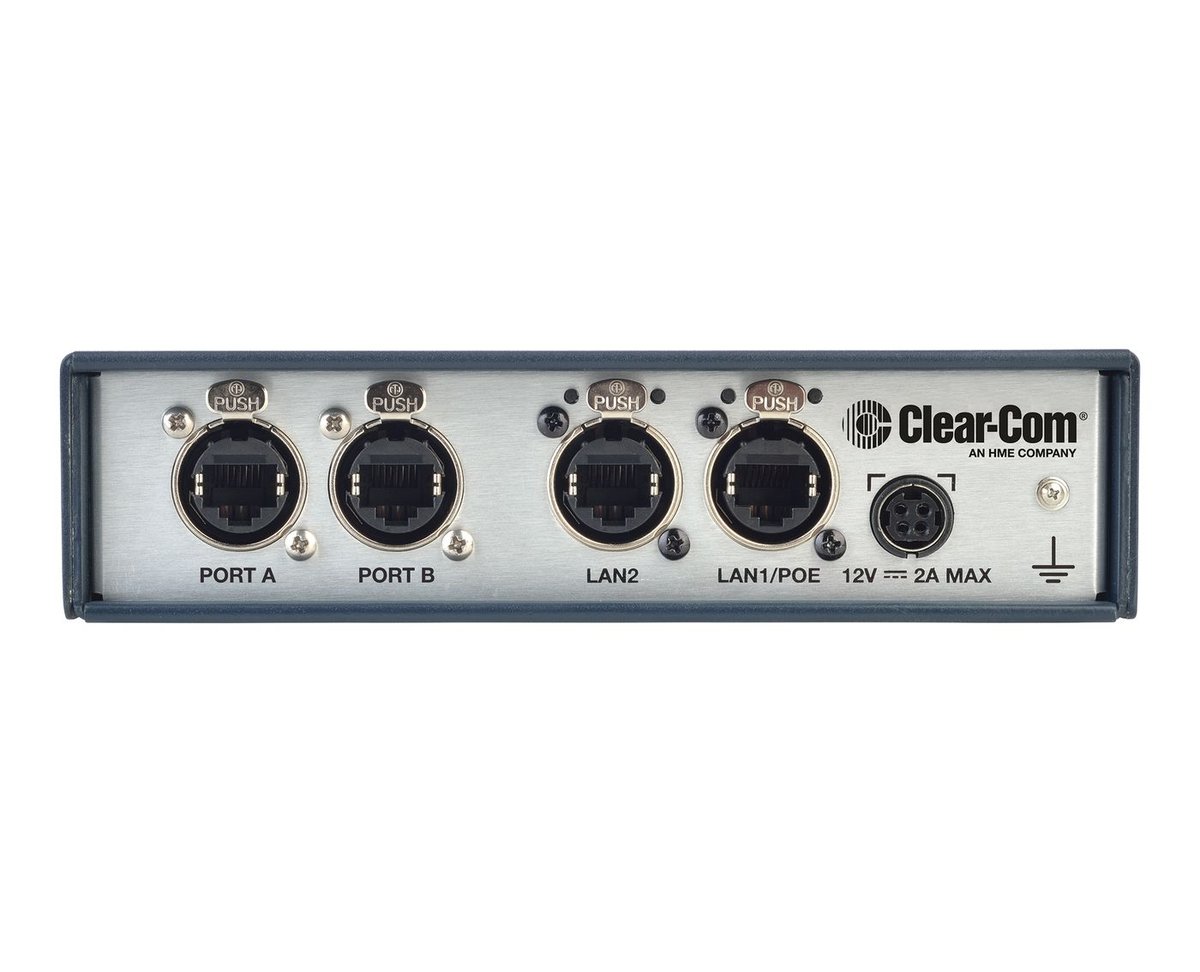

The LQ-4W2 brings two 4-wire circuits onto an IP network. Where the 2-wire model interfaces a legacy partyline, the 4-wire version connects matrix ports, codecs and anything else that expects separate send and return paths, on RJ45 etherCON connectors with transformer balanced input and output.

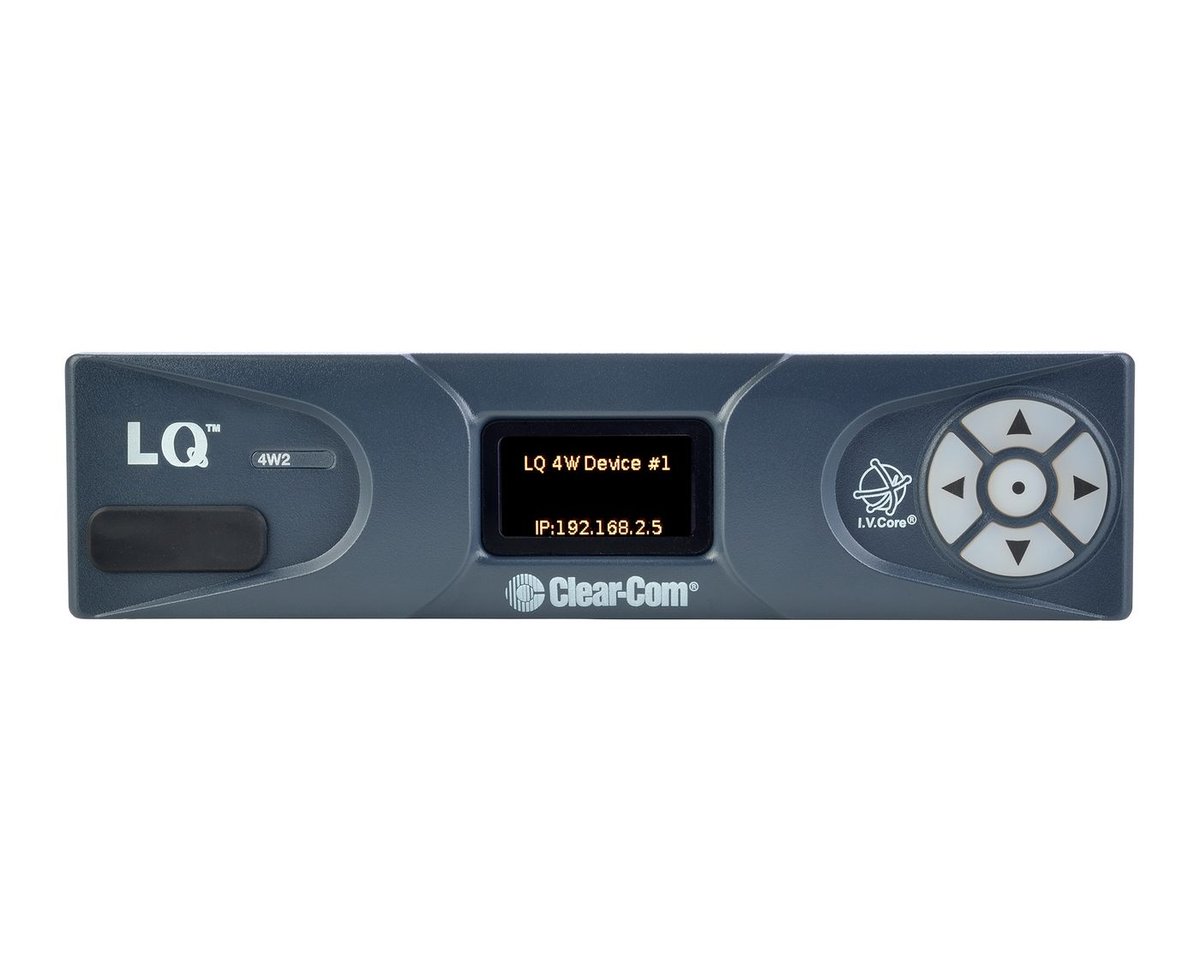

Every LQ unit joins a link group of up to six LQ, Gen-IC or HMS-4X members carrying 24 channels and 24 directs, and each one hosts eight virtual interface ports and eight virtual clients for Agent-IC and Station-IC users. Two bridged RJ45 etherCON LAN ports allow a daisy chain, a yellow OLED display with five backlit buttons handles local configuration, and licences such as SIP8-LQ and VIRTUAL-IC-LQ are applied per unit through CCM.
