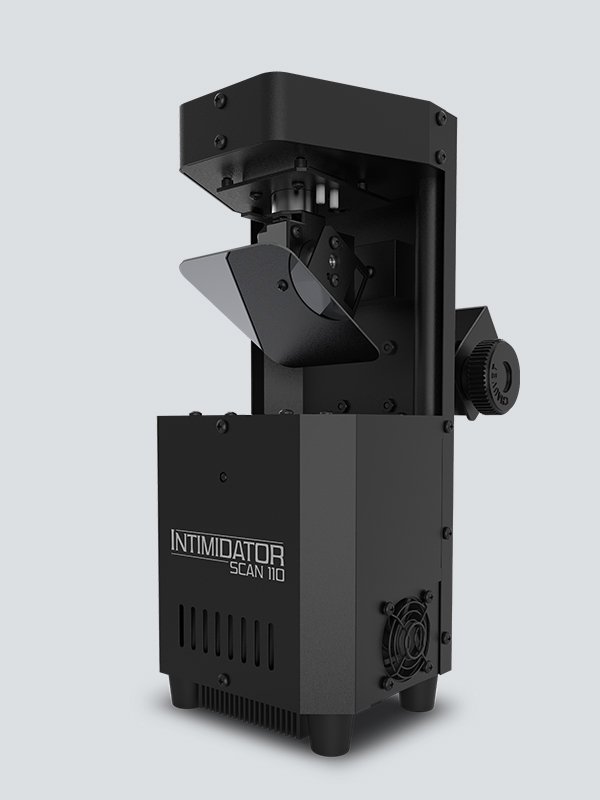

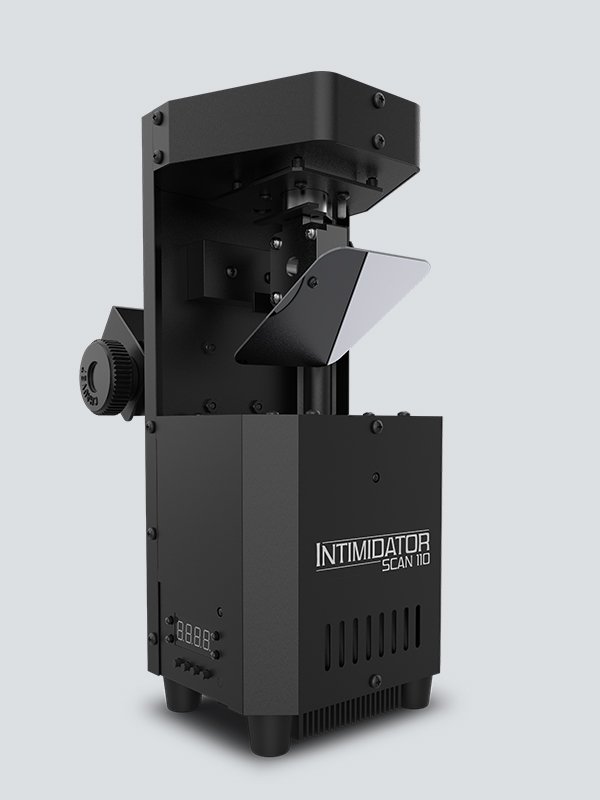

Chauvet DJ Intimidator Scan 110 4.6-Pound LED Scanner
Mirror scanners move faster than moving heads because only the mirror travels, and the Intimidator Scan 110 is the smallest, cheapest way to get that snap into a mobile rig. A 10W cool white LED throws a 13-degree beam at 1,110 lux measured at 2 meters through eight combined color/gobo patterns plus open, and the mirror covers 180 degrees of pan and 45 of tilt.

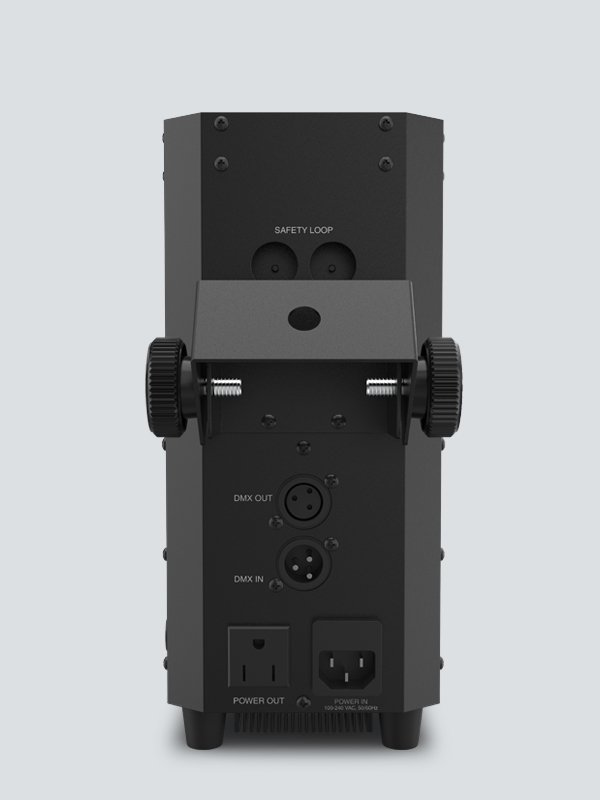

Built-in movement macros and a move-in-black feature cut programming time - the fixture repositions with the light shuttered so the audience only sees the finished move. Sound-activated programs and master/slave linking cover shows with no console at all, and the optional IRC-6 handheld gives wireless non-DMX control. Under DMX it takes 5 or 11 channels over 3-pin XLR. At 30W it power-links seventeen units on a single 120V circuit, and at 4.6 lb and 7.5 x 4.7 x 10.6 inches a bag of them travels easily; Chauvet sizes the CHS-40 gear bag to fit.
| Light Source | 1 LED (cool white) 10W, 50,000-hour life |
|---|---|
| Beam Angle / Illuminance | 13°; 1,110 lux @ 2 m |
| Patterns | 8 combined color/gobo patterns + open |
| Pan / Tilt | 180° / 45° (mirror) |
| DMX Channels | 5 or 11; 3-pin XLR |
| Control Modes | DMX, sound-active, master/slave, optional IRC-6 remote |
| Power | 30W, 0.5A @ 120V; power-links 17 units @ 120V |
| Size / Weight | 7.5 x 4.7 x 10.6 in (190.5 x 119.3 x 269 mm); 4.6 lb (2.1 kg) |
