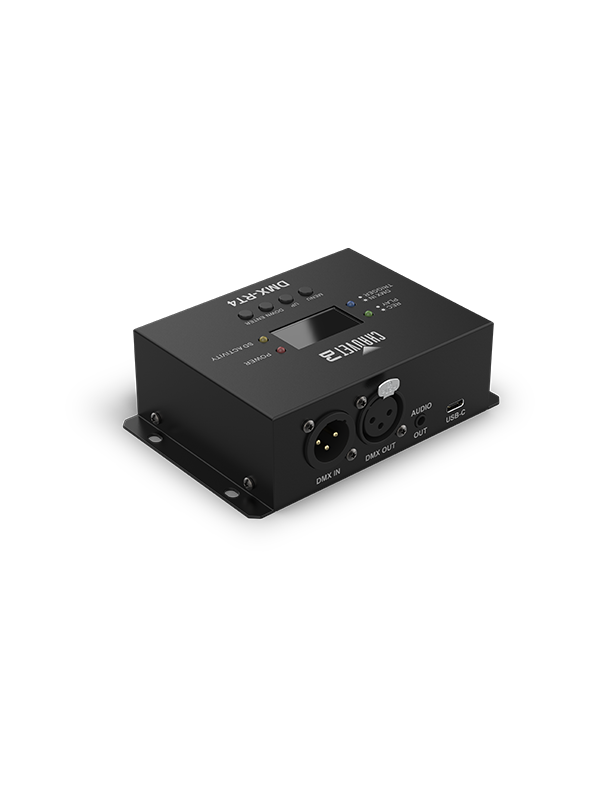

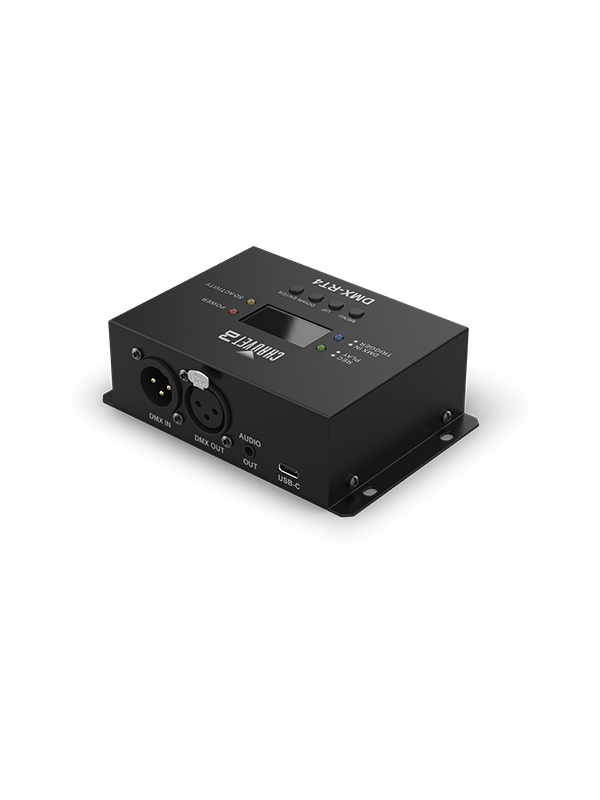

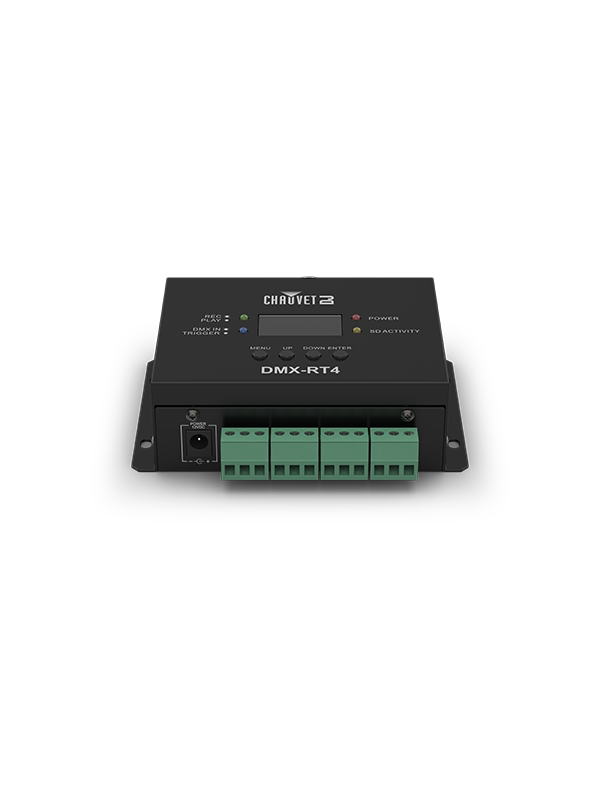

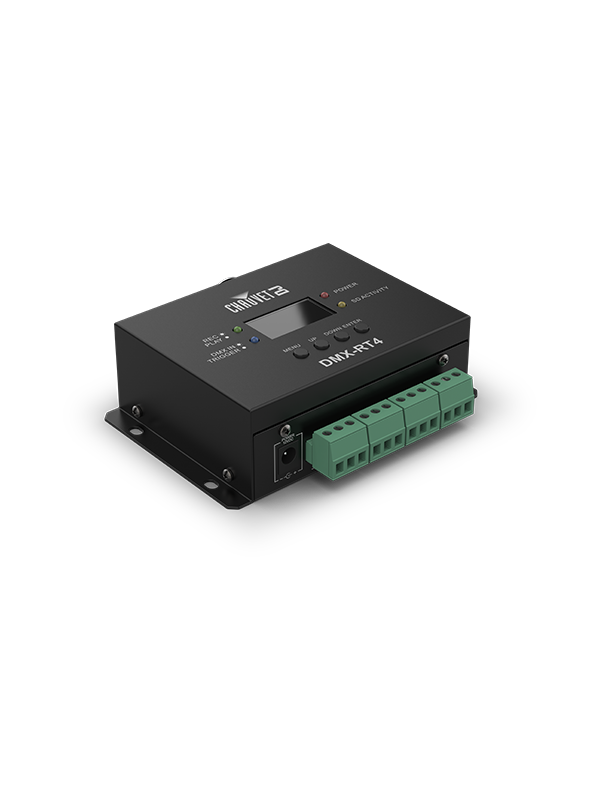

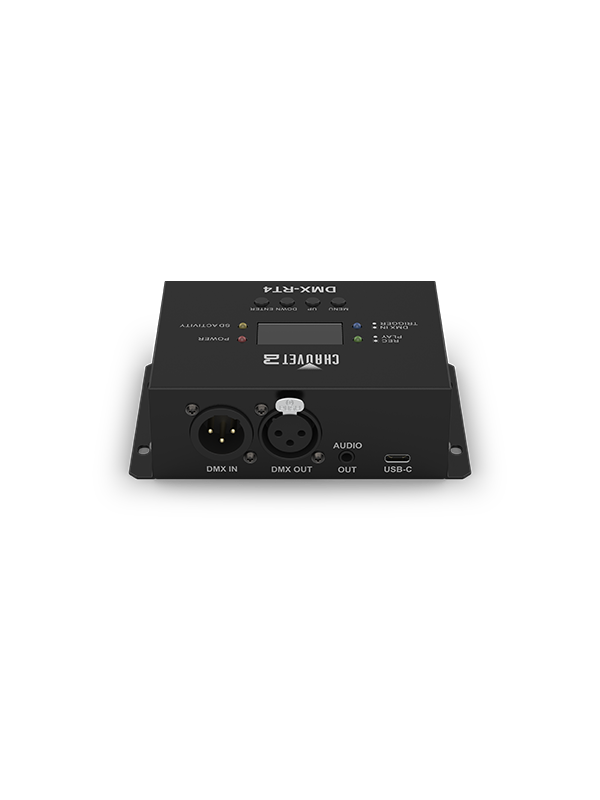

Chauvet DJ DMX-RT4 DMX Recorder and Playback Unit

The DMX-RT4 records a DMX show off a console once and then plays it back forever without the console. Four triggers fire four independent looks or sequences, each programmed separately, and each accepts a normally open or normally closed contact - which means almost any wall switch, motion sensor or door contact can run it. Auto and toggle modes cover the unattended installs.

Thirty-two gigabytes of onboard memory hold the shows, and a 3.5 mm jack plays a matching MP3 or WAV track out to a house system, so a lighting cue and its audio stay locked together. Show files copy and back up over USB-C, and password protection keeps a finished install from being edited by the next person with a laptop. A terminal block supplies 12 VDC at 100 mA to power a trigger device. It runs on the included 12 VDC supply and draws about one watt.

Function	DMX recording and playback; 32 GB onboard memory
Triggers	4 independent; normally open or normally closed; auto / toggle
Audio	3.5 mm out; MP3 (32-320 kbps) and WAV (8 or 16-bit)
Data	3-pin XLR DMX; USB-C for show file transfer
Terminal Block Output	12 VDC, 100 mA
Power	12 VDC, 1 A external supply (included); 1 W, 0.03 A @ 120 V
Size / Weight	4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm); 0.4 lb (0.2 kg)
Security	Password protection
