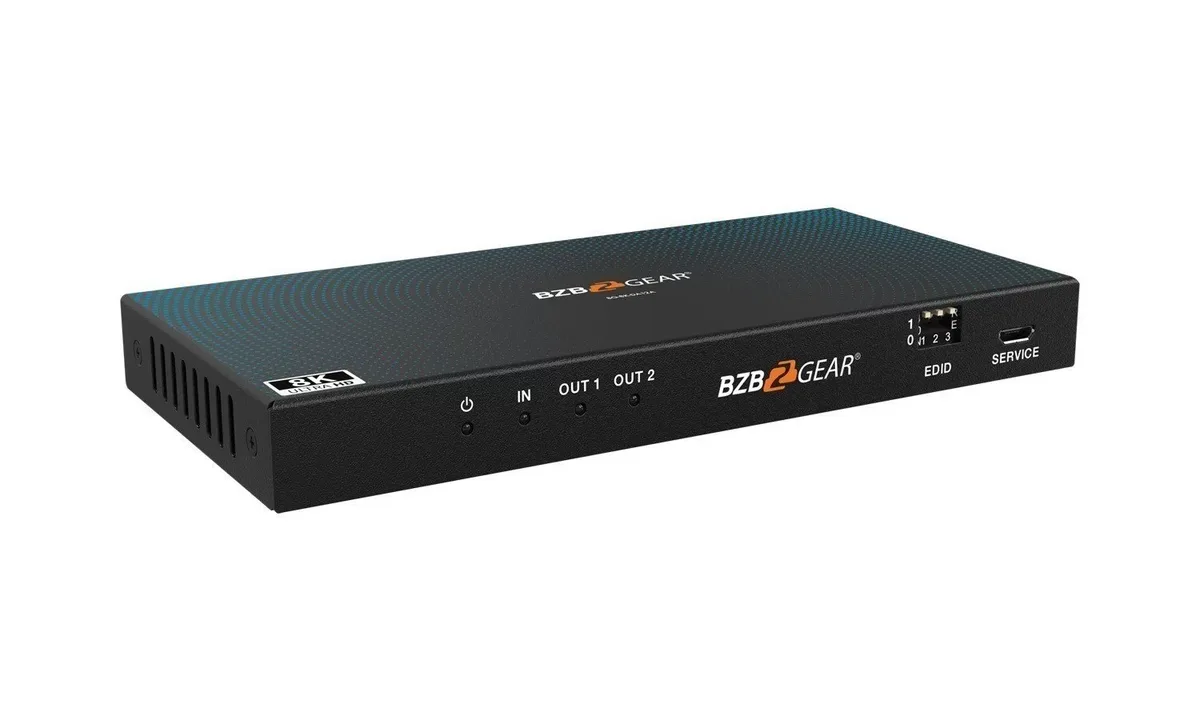

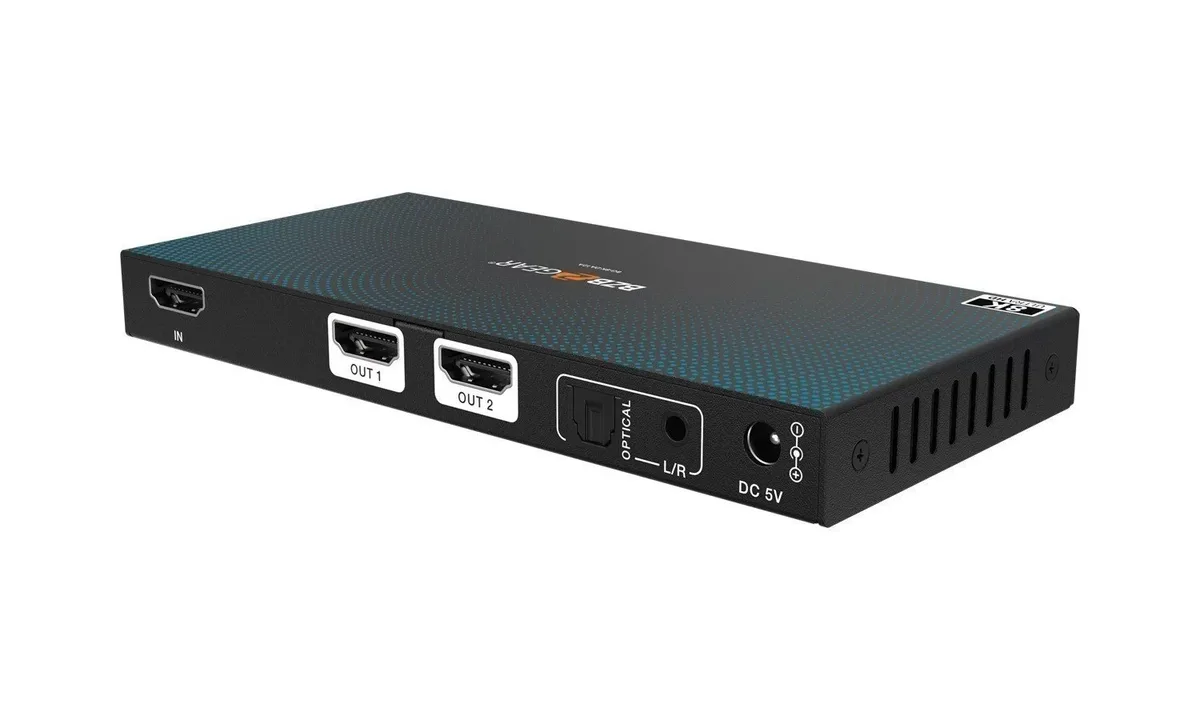

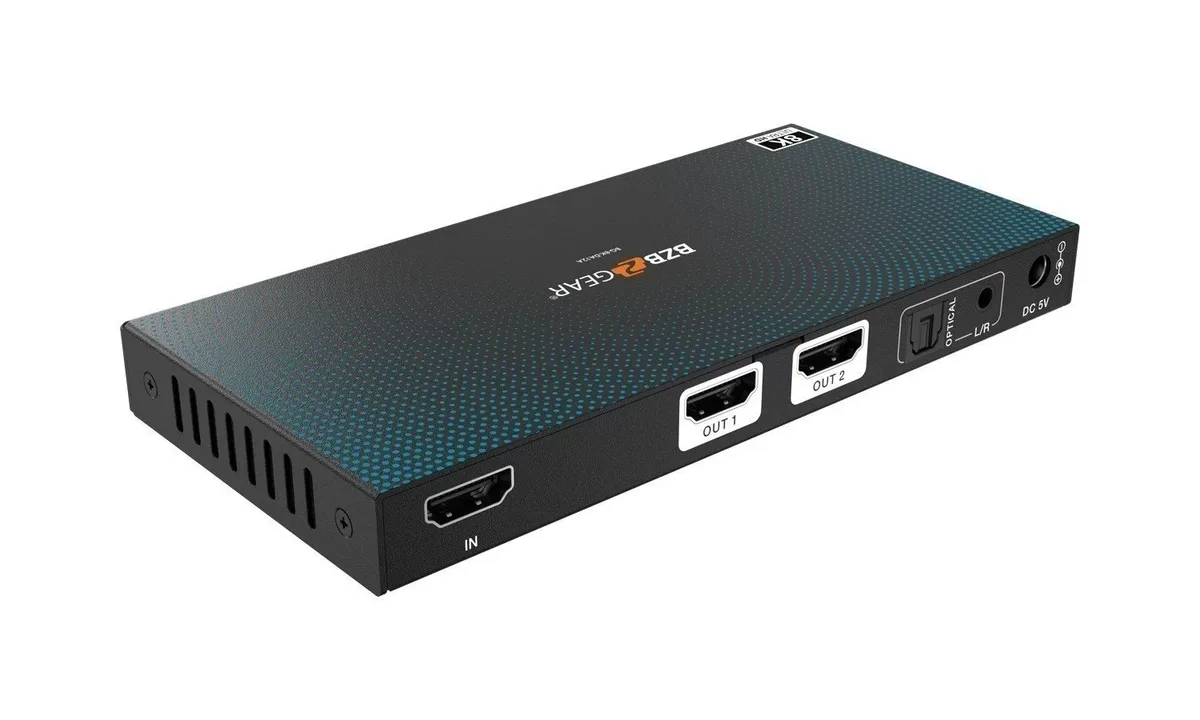

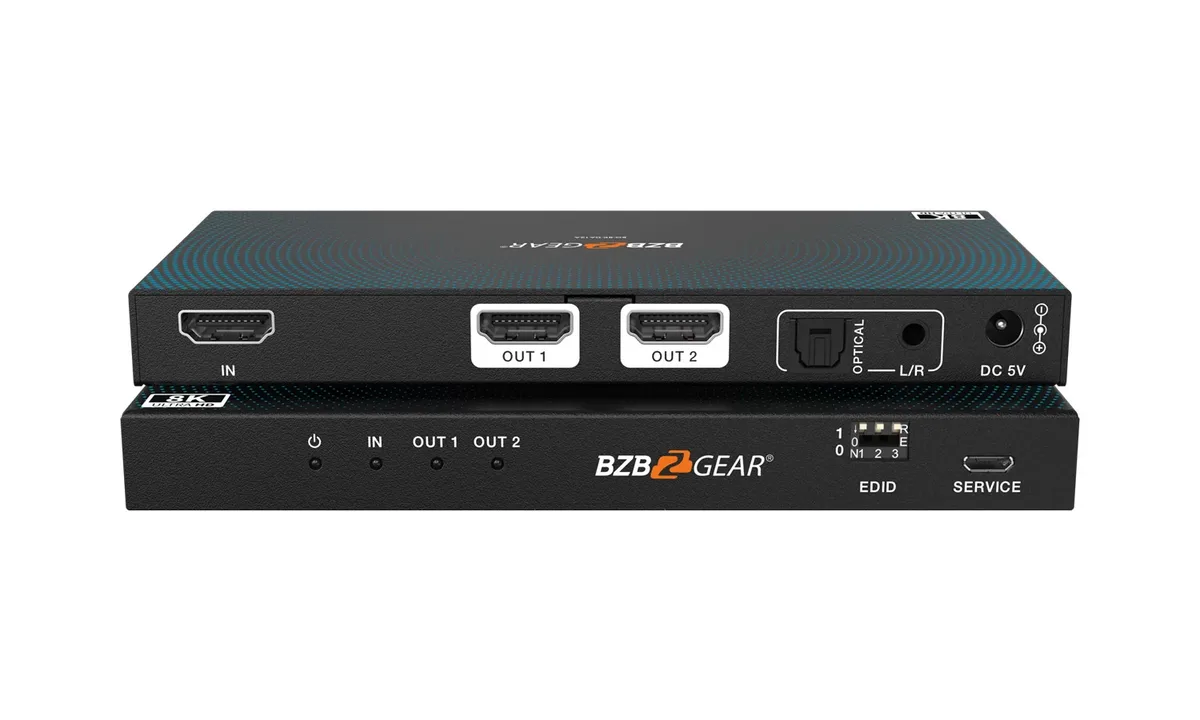

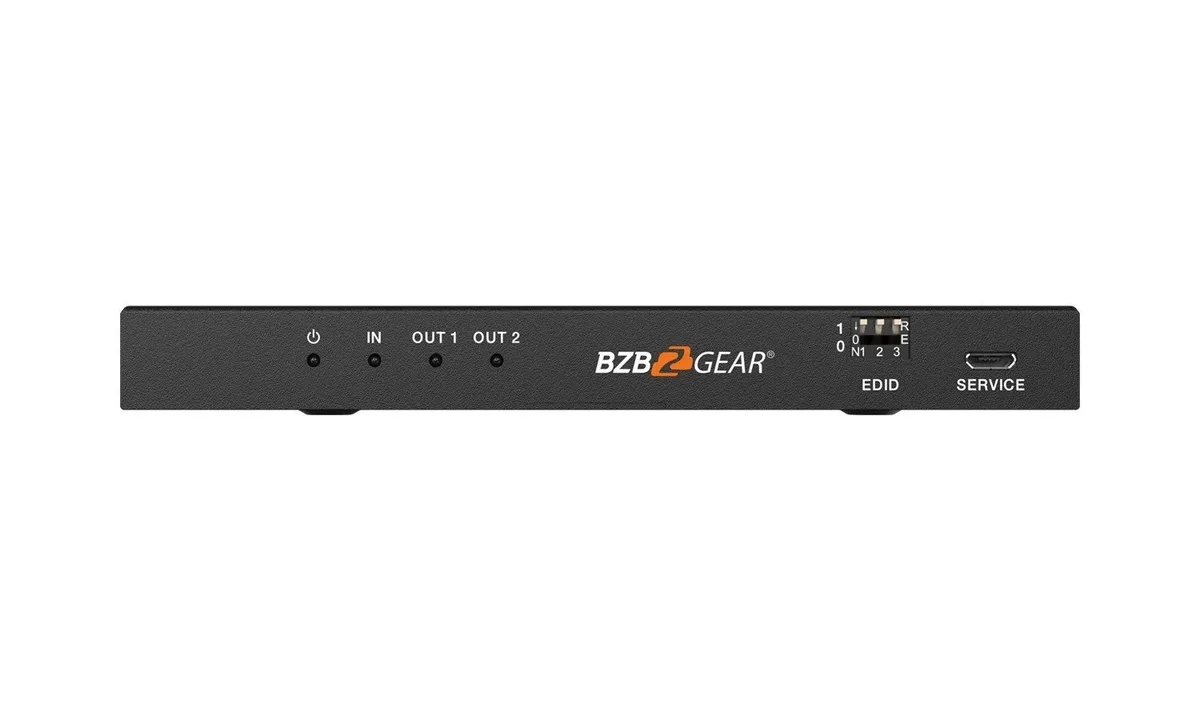

BZBGear BG-8K-DA12A 1x2 8K HDMI Splitter with Audio De-Embedding

The BG-8K-DA12A splits one HDMI input to two outputs at up to 8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit and 4K120 4:4:4 10-bit on 40 Gbps of bandwidth, with HDCP 2.3 throughout.

It differs from the plain DA12 by breaking audio out at the same time, to optical S/PDIF or an analog stereo jack, so a display pair and a sound system can be fed from one source. HDR10, HDR10+, Dolby Vision and HLG pass through and the metal case measures 145 x 68 x 17 mm.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	40Gbps
Video Resolutions	Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 1080p240Hz
Input	1x HDMI IN [Type A, 19-pin female]
Output	2x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0
Color Depth	8/10/12-bit
