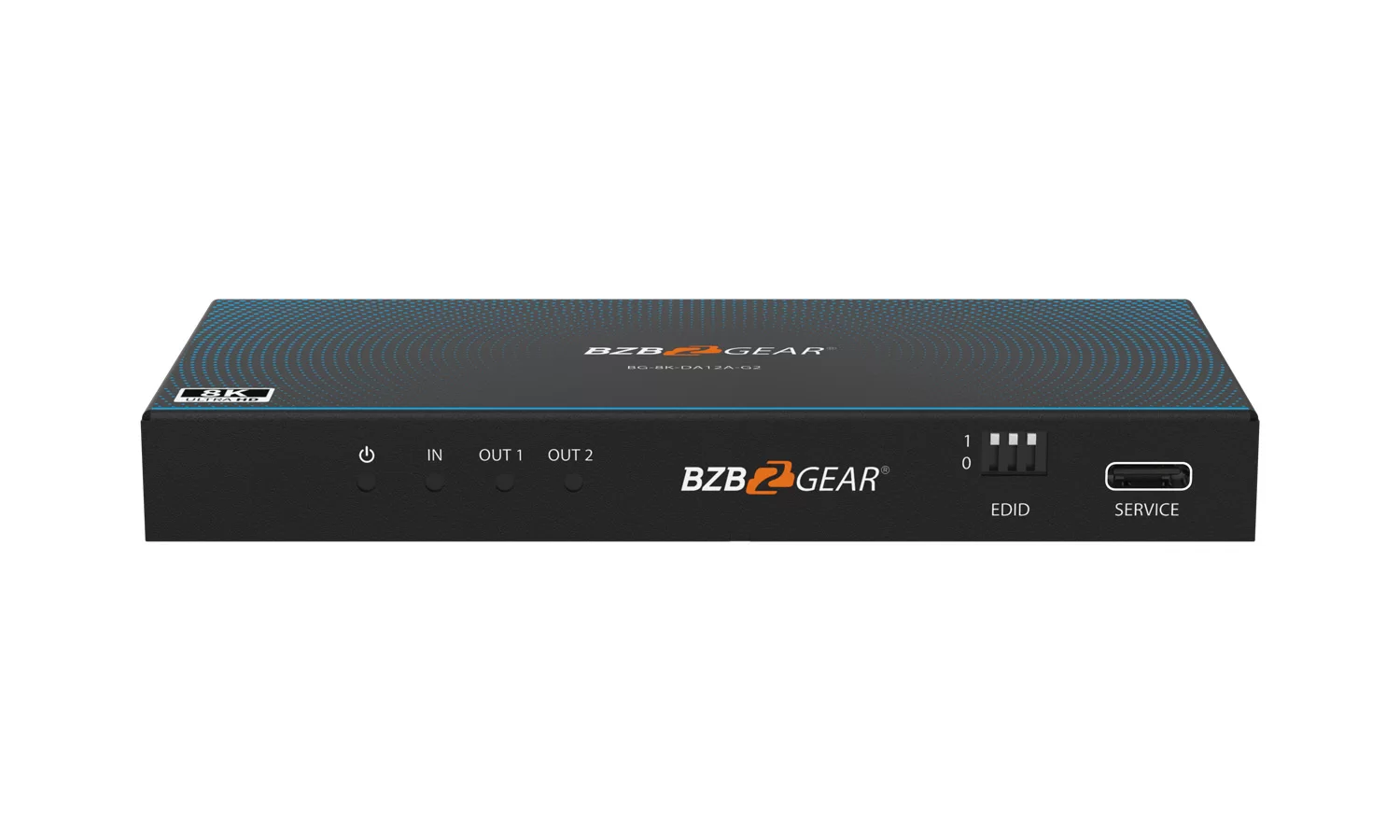

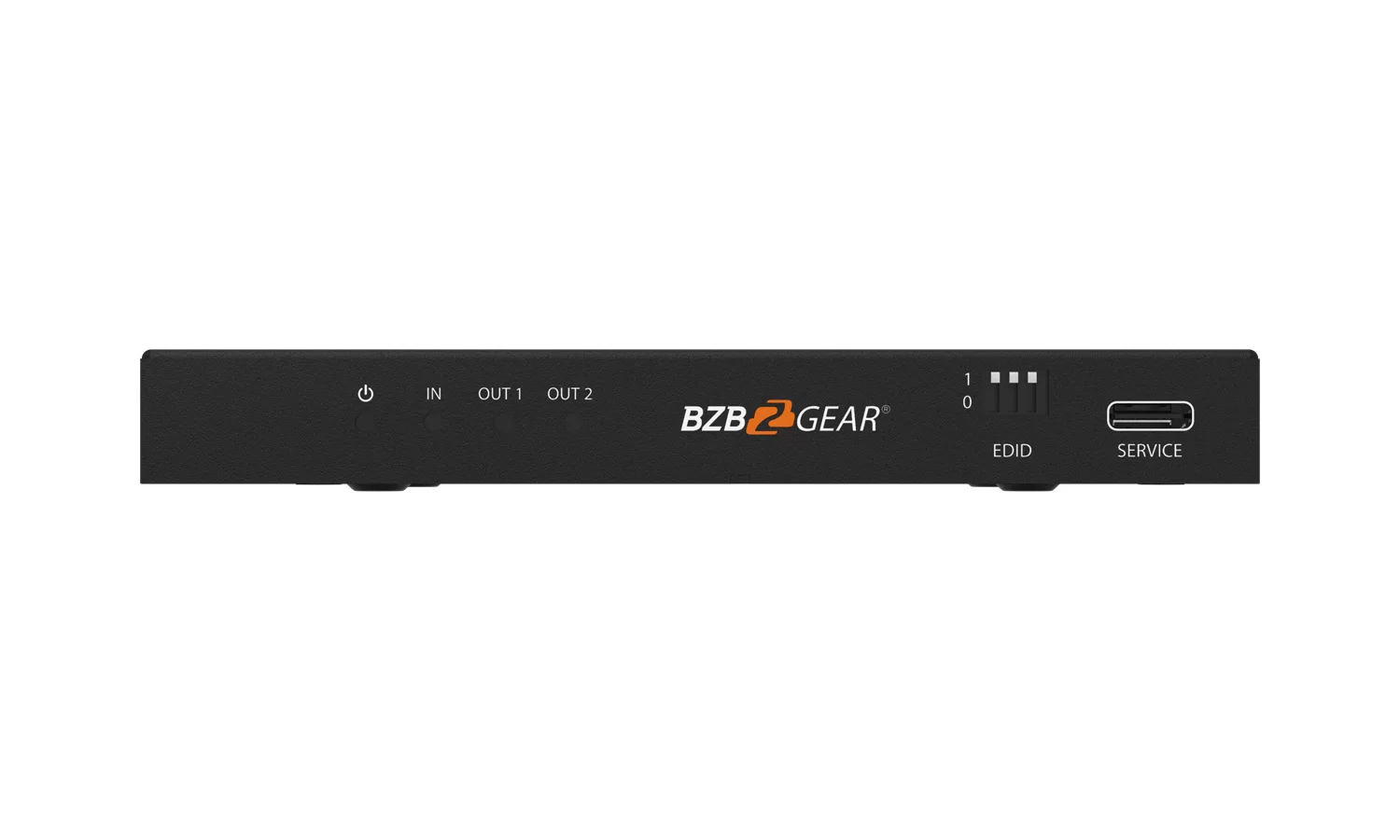

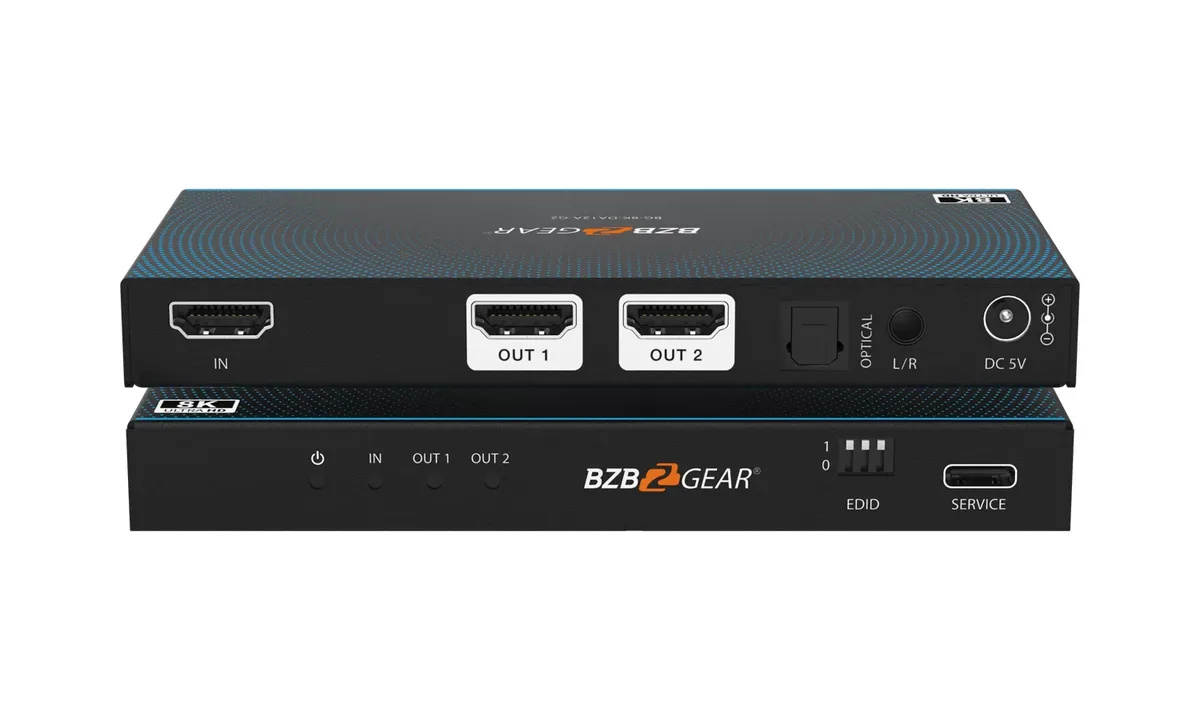

BZBGear BG-8K-DA12A-G2 1x2 8K HDMI Splitter with Audio De-Embedding

The BG-8K-DA12A-G2 sends one HDMI source to two displays at up to 8K60 4:2:0 12-bit, 4K120 4:4:4 12-bit or 1080p240. The G2 revision runs the full 48 Gbps FRL link rather than the 40 Gbps of the original DA12A, and covers HDCP 2.3 and 1.4.

Audio comes off the same signal on optical S/PDIF and analog stereo, so a projector and a monitor can share a source while the sound goes to a separate amplifier. HDR10, HDR10+, Dolby Vision and HLG pass through, and the metal case measures 145 x 68 x 17 mm.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3, HDCP 1.4
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 1080p240Hz
Input	1 x HDMI IN [Type A, 19-pin female]

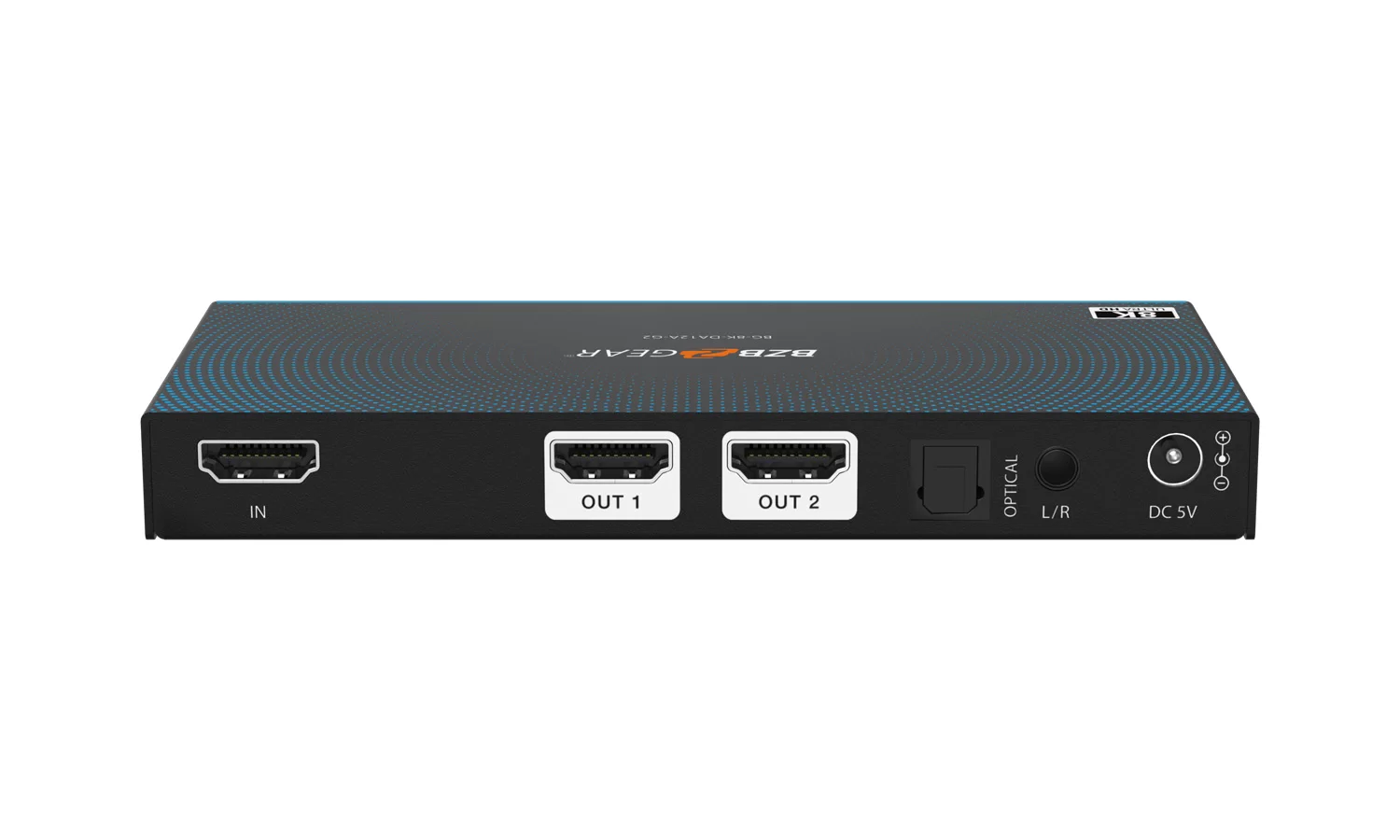

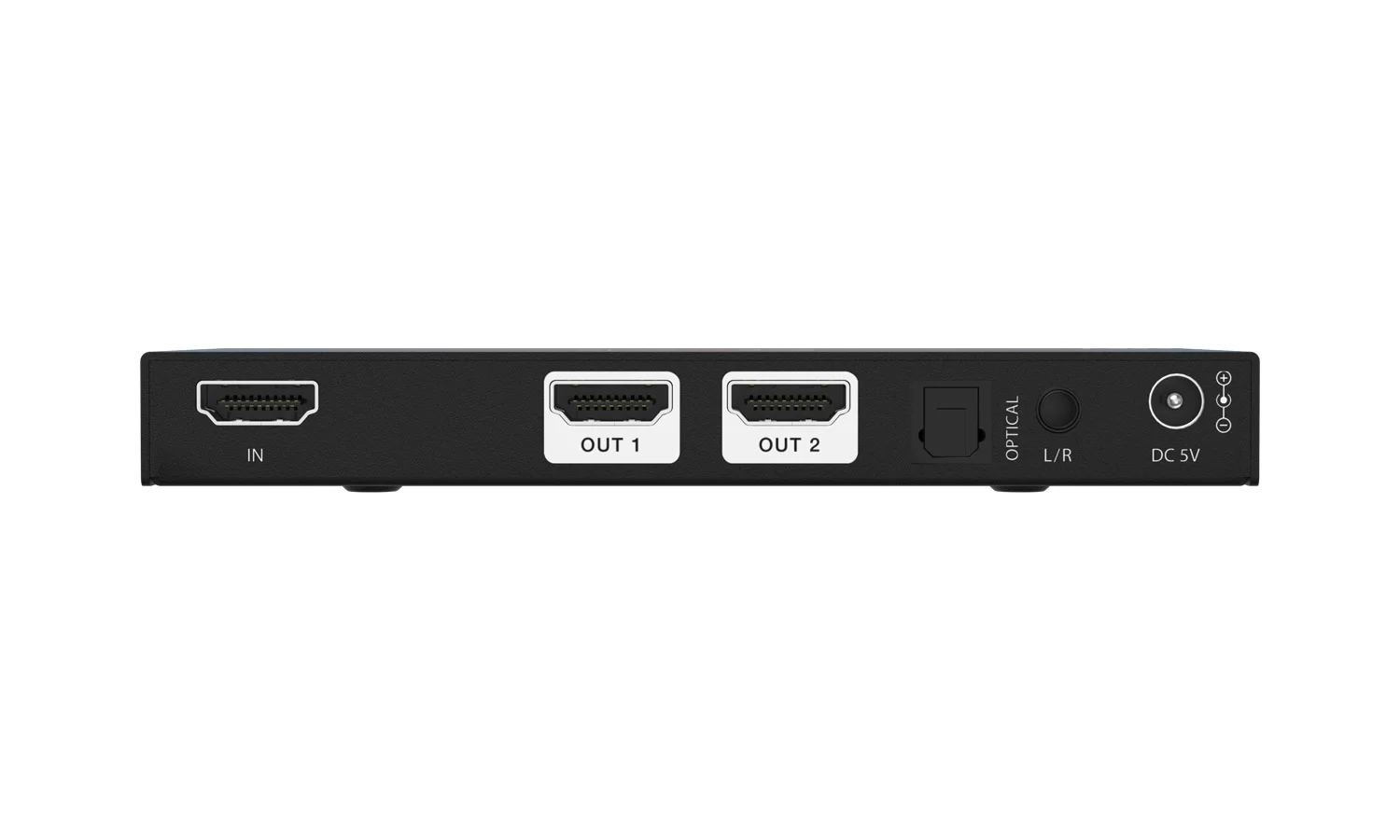

Output	2 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Technical Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH
Color Depth	8/10/12bit
