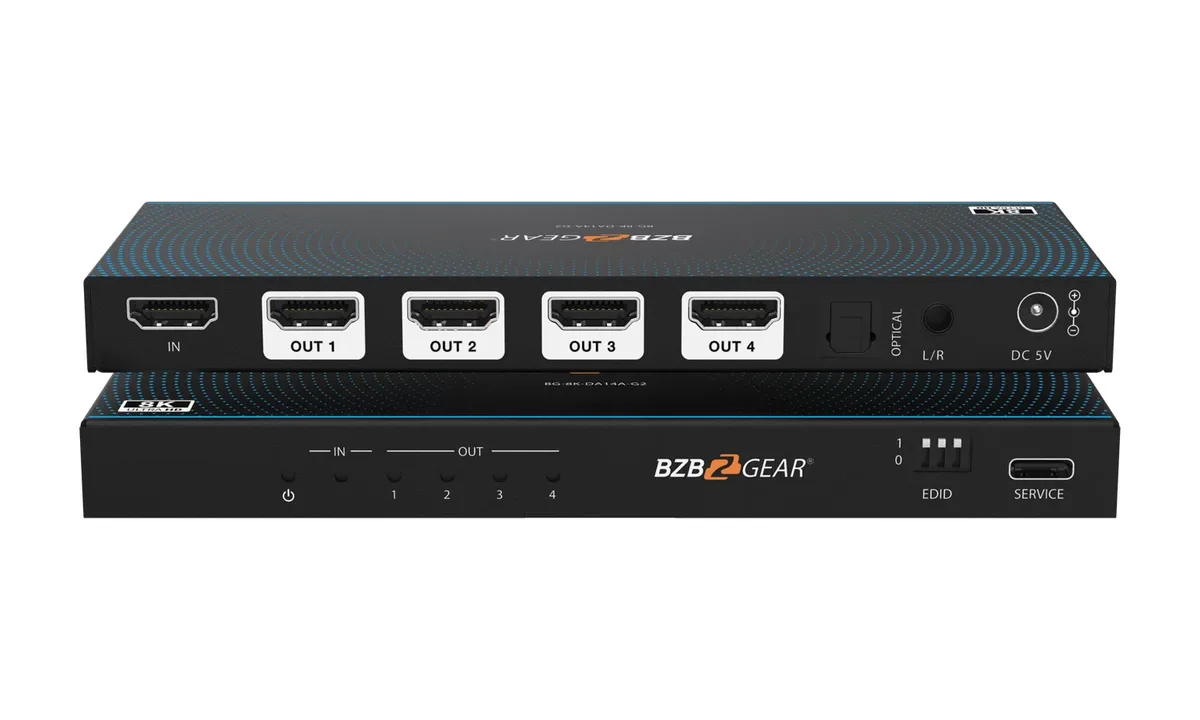

BZBGear BG-8K-DA14A-G2 1x4 8K HDMI Splitter with Audio De-Embedding

The BG-8K-DA14A-G2 feeds four displays from one HDMI source at up to 8K60 4:2:0 12-bit, 8K30 4:4:4 and 4K120 4:4:4 12-bit, running the full 48 Gbps FRL link with HDCP 2.3 and 1.4.

Audio de-embedding puts the same programme sound on optical S/PDIF and an analog stereo output for a house system, and each HDMI output downscales independently so a mixed set of screens all stay live. HDR10, HDR10+, Dolby Vision and HLG pass through. The case measures 176 x 68 x 18 mm.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3, HDCP 1.4
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 8K@30Hz 4:4:4 12bit
Input	1 x HDMI IN [Type A, 19-pin female]

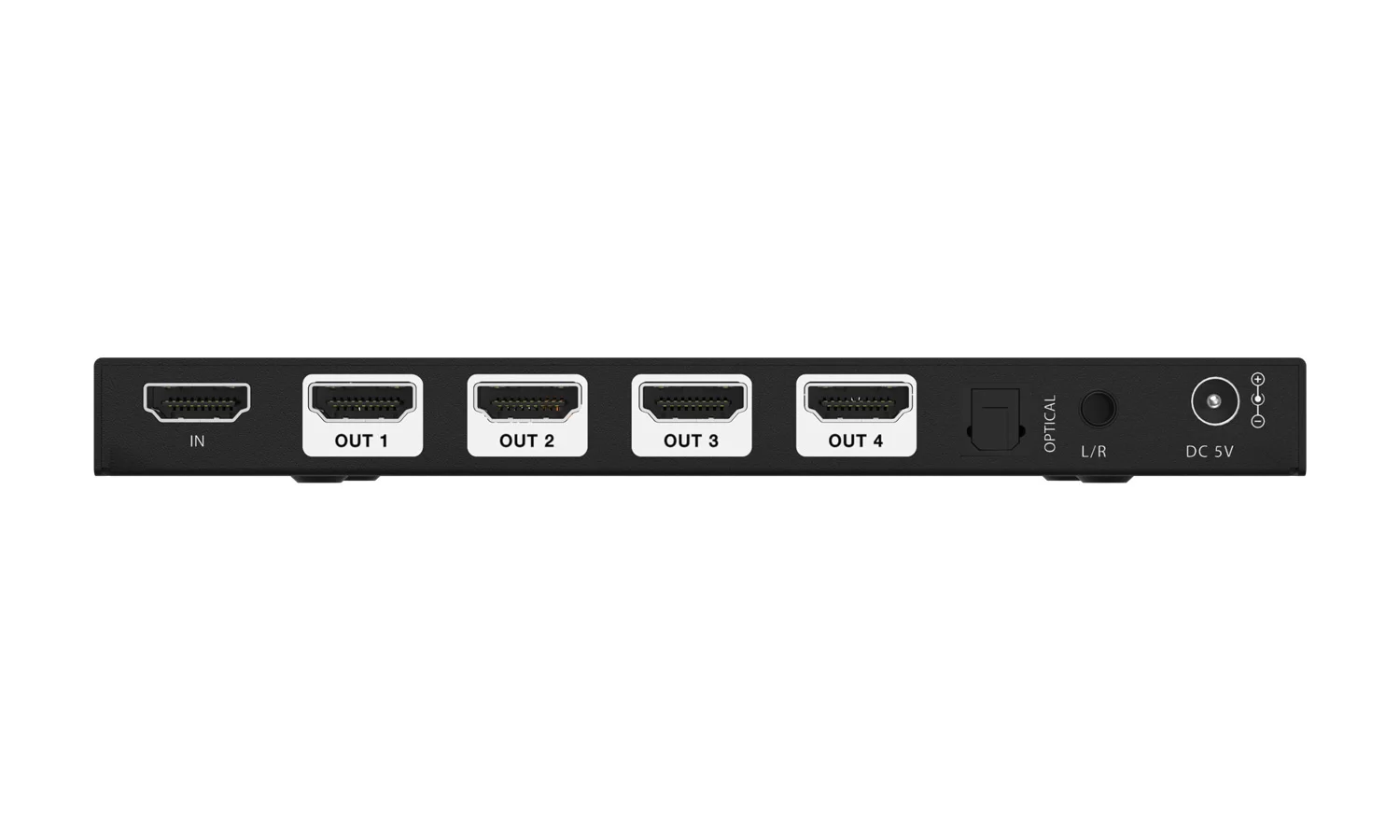

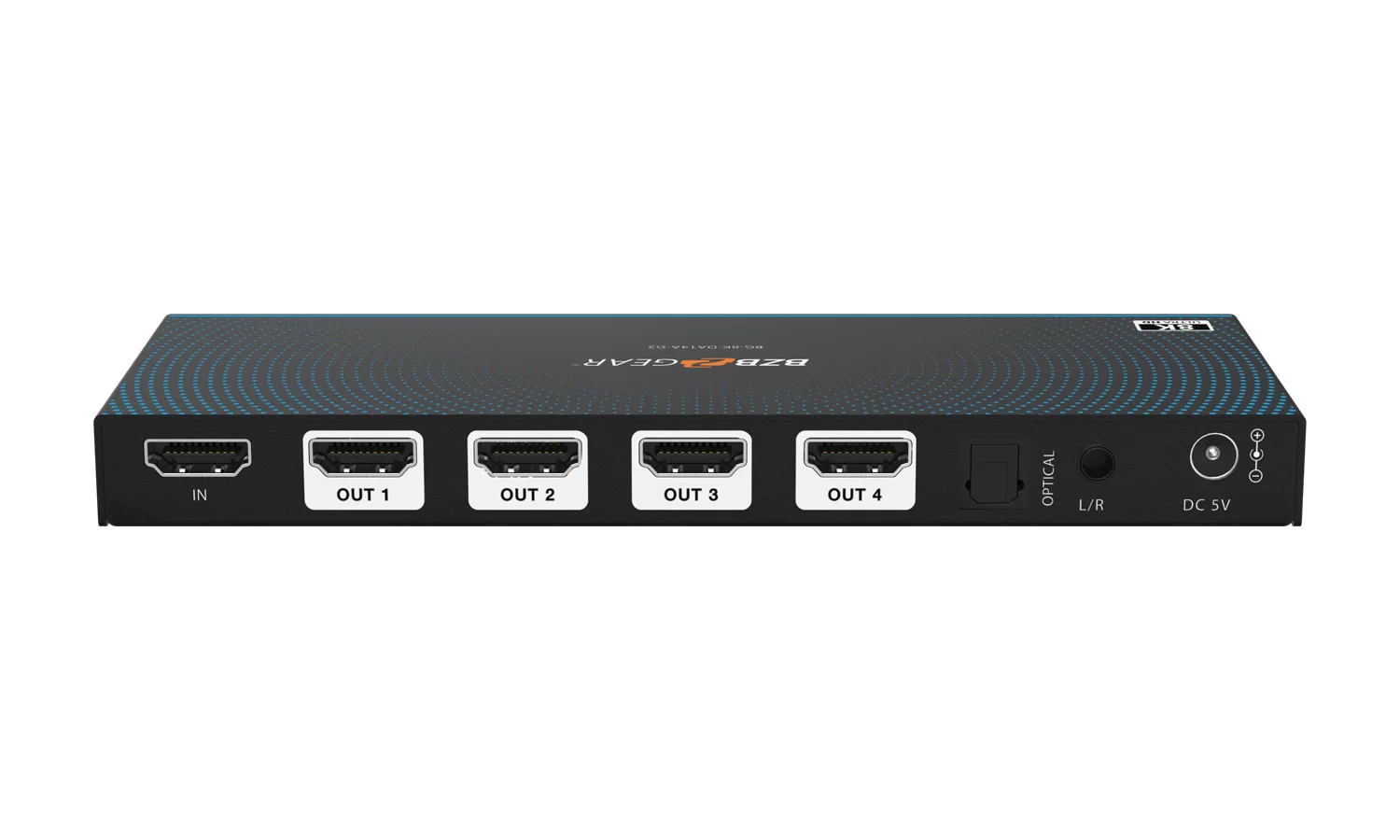

Output	4 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Technical Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH
Color Depth	8/10/12bit
