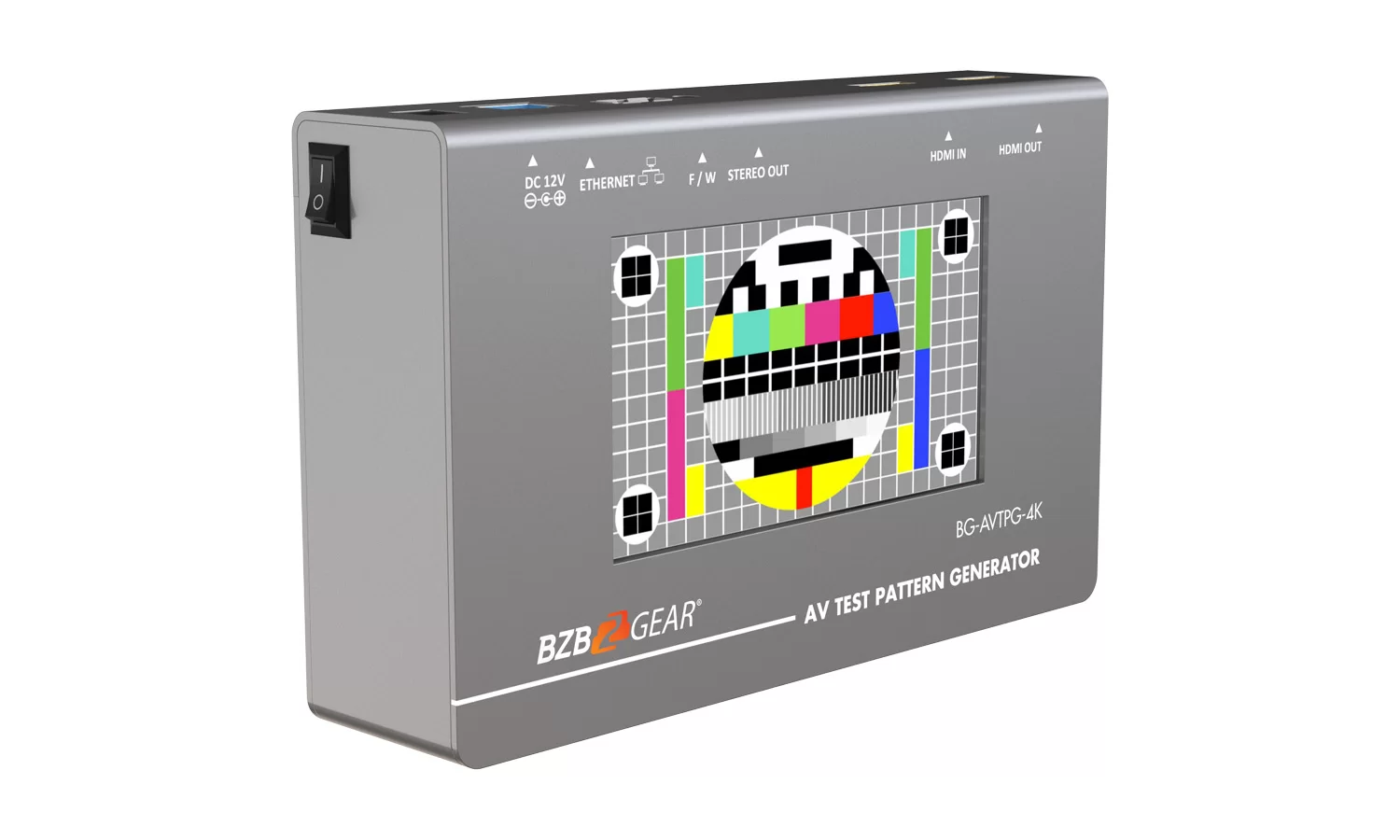

BZBGear BG-AVTPG-4K HDMI 2.0 Test Pattern Generator and Analyzer

The BG-AVTPG-4K sends and receives HDMI signals up to 4096 x 2160 4:4:4, so an integrator can prove a cable, a display or a whole chain before blaming the source. Bandwidth is single-link 600 MHz, or 18 Gbps, and it reads HDCP 2.2 and below.

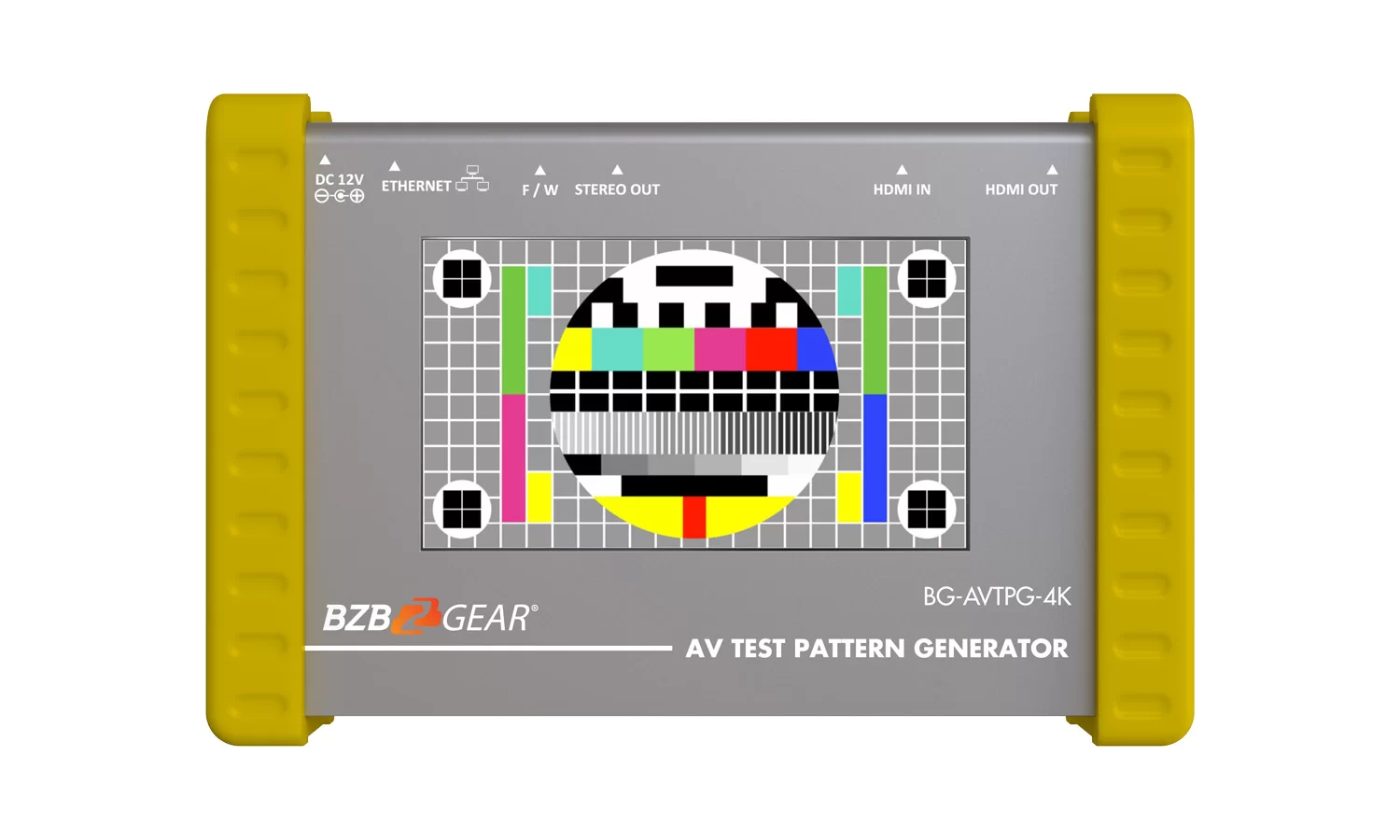

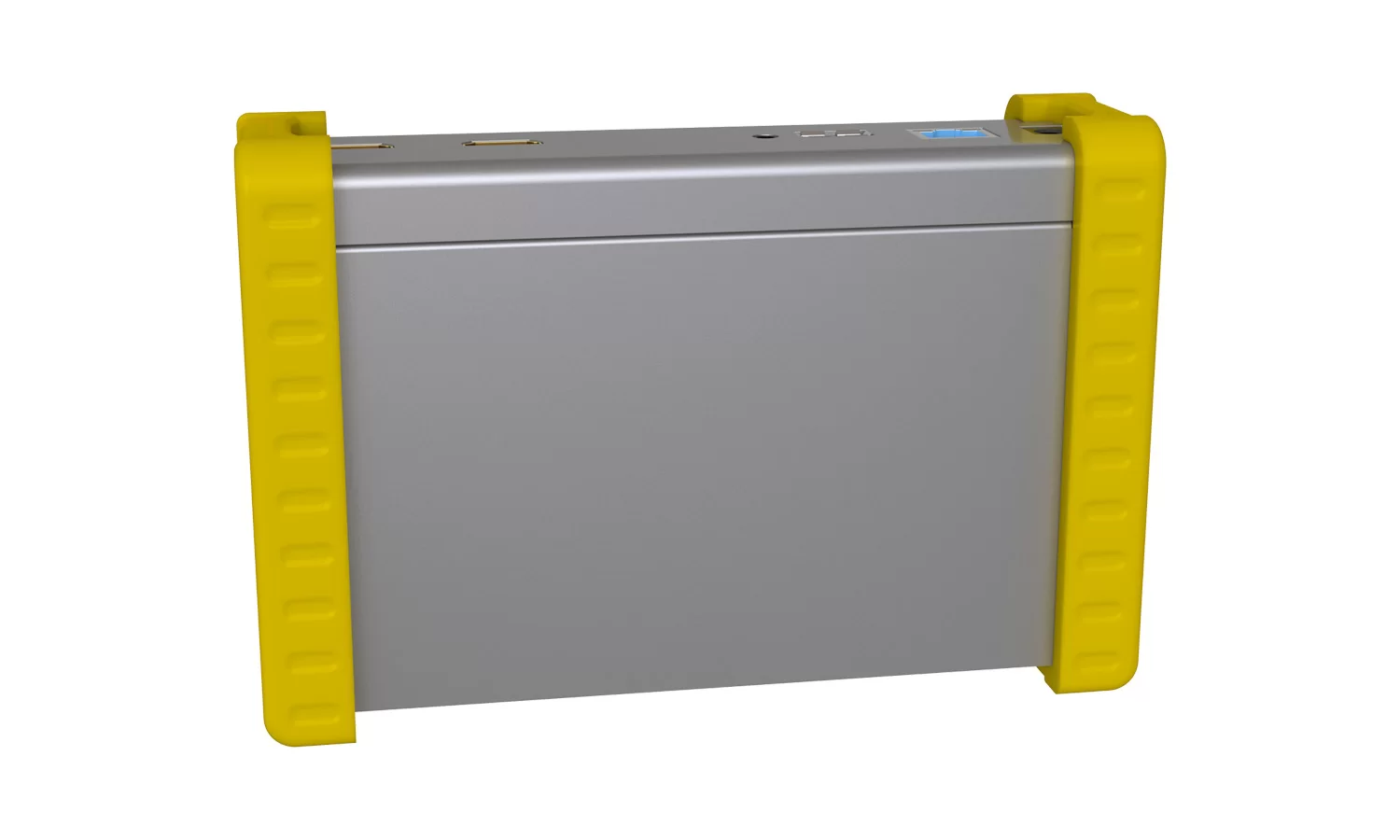

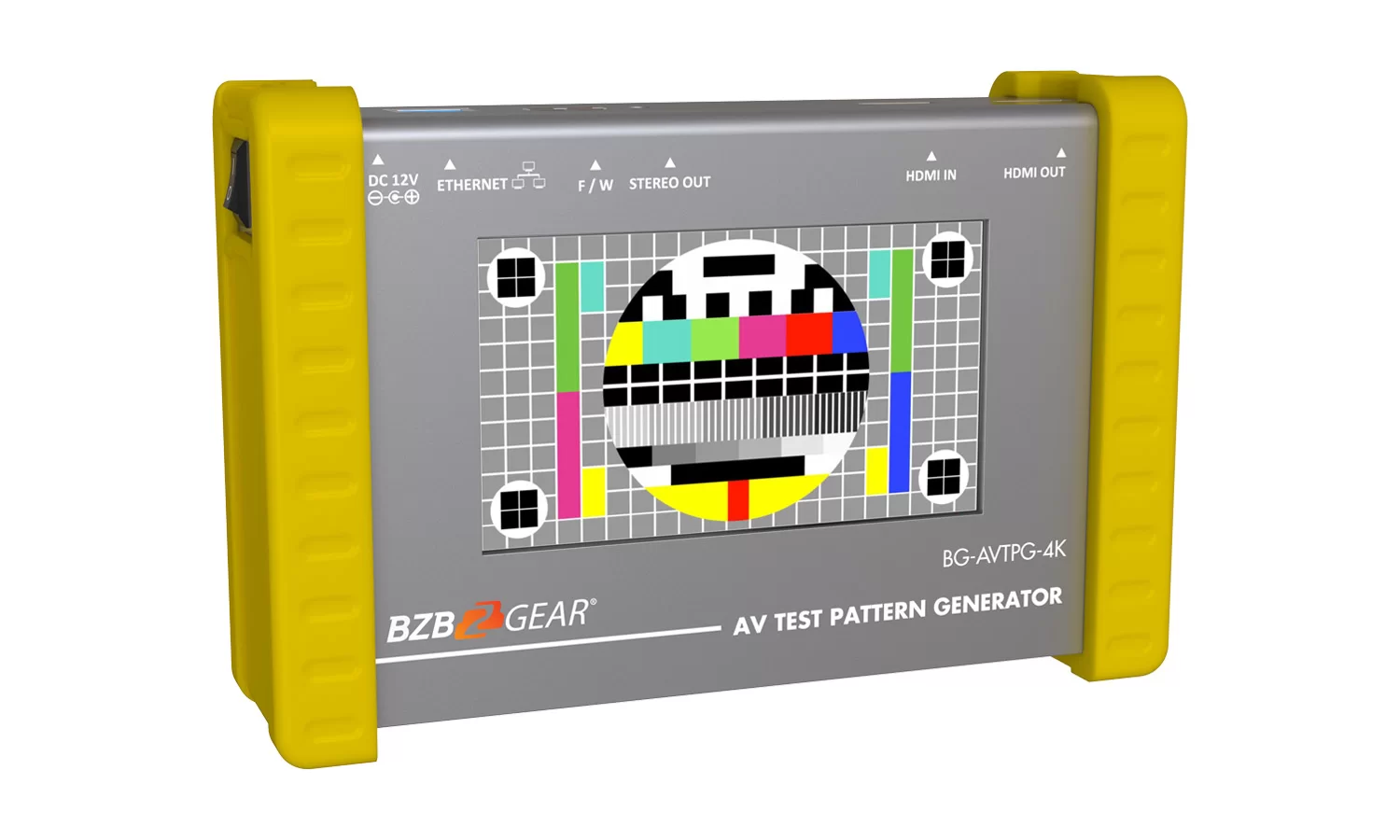

It generates a wide set of test patterns, analyzes an incoming signal, and passes 8-channel LPCM up to 192 kHz. Control is by USB mouse, the touch panel or Ethernet. The chassis is metal with shock-resistant rubberized edges, and the unit is TAA compliant.
