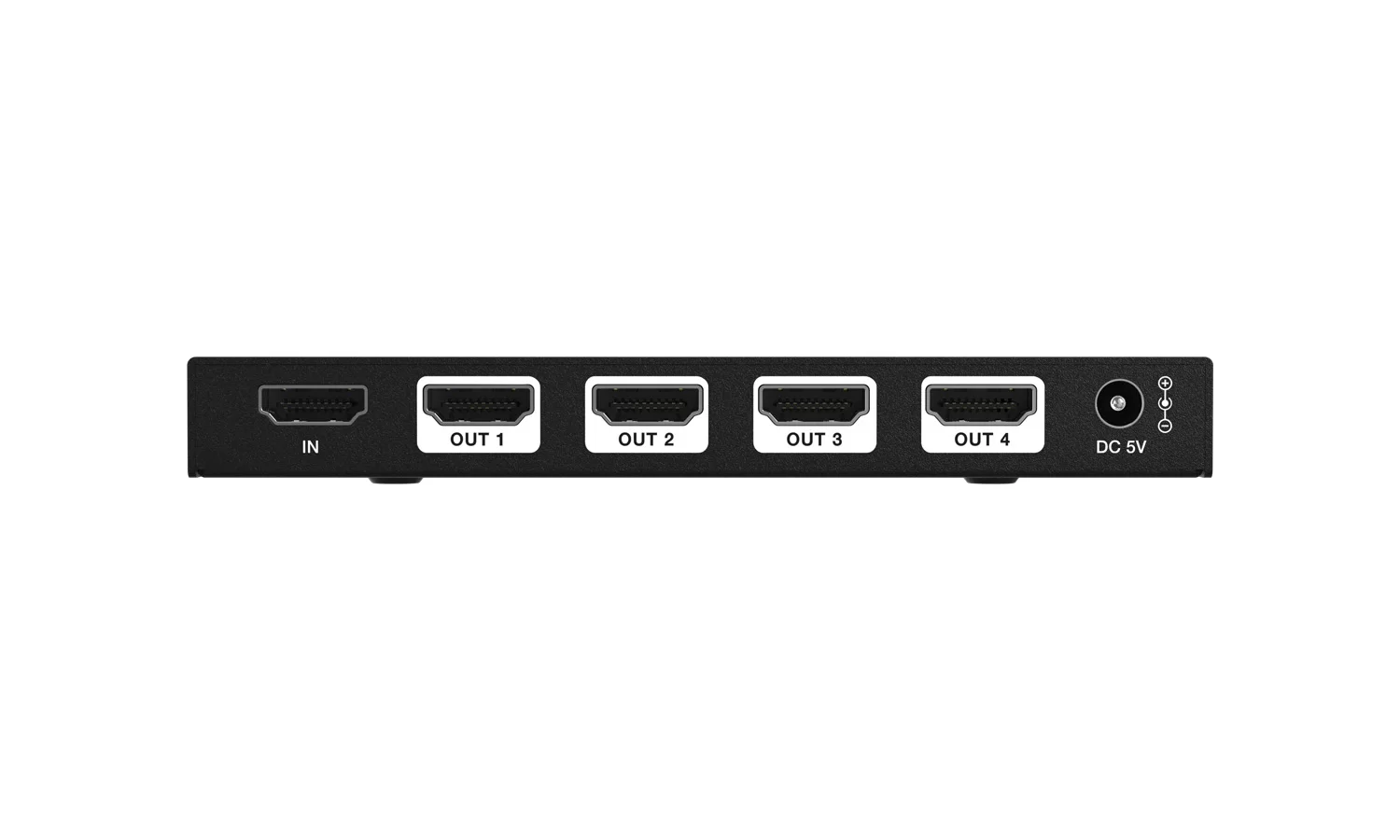

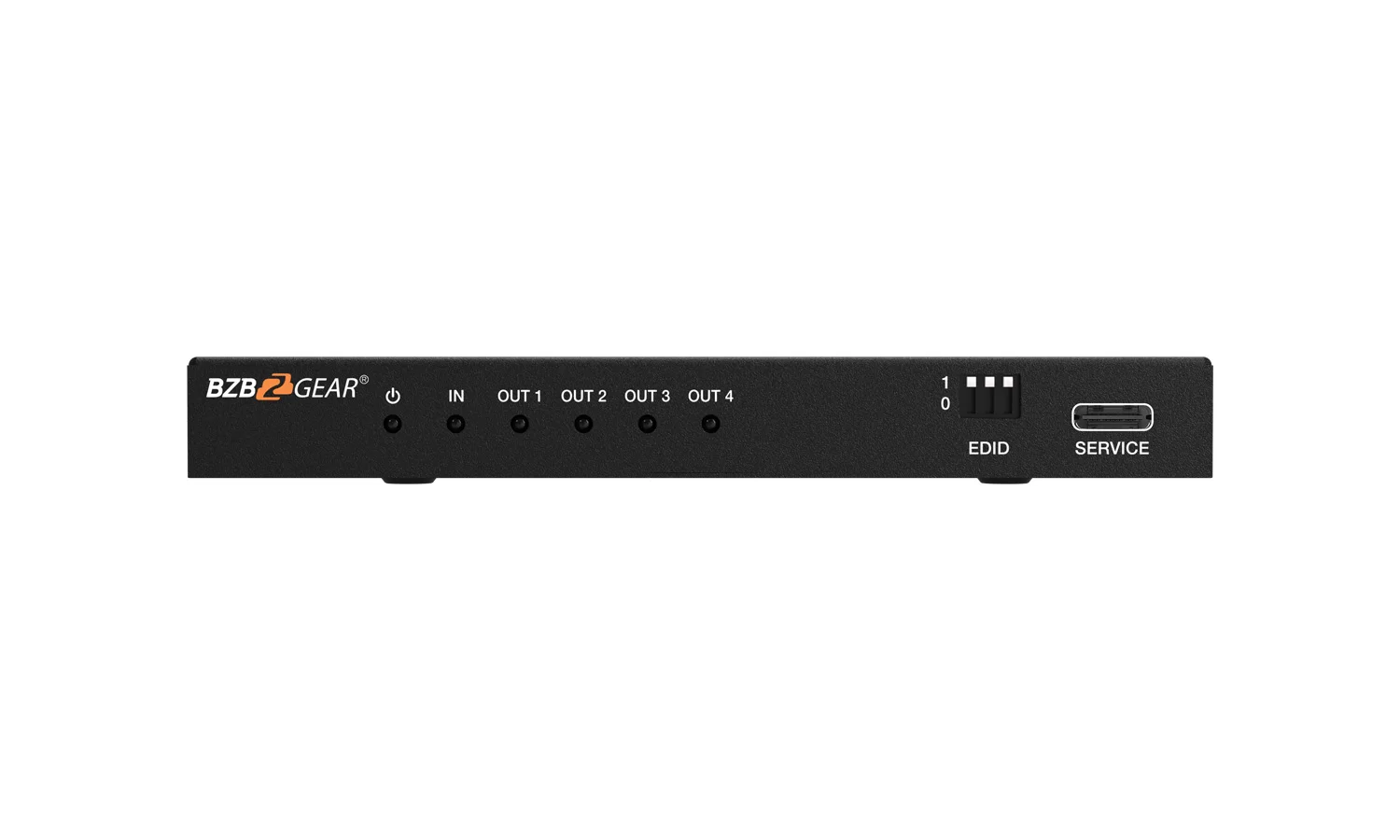

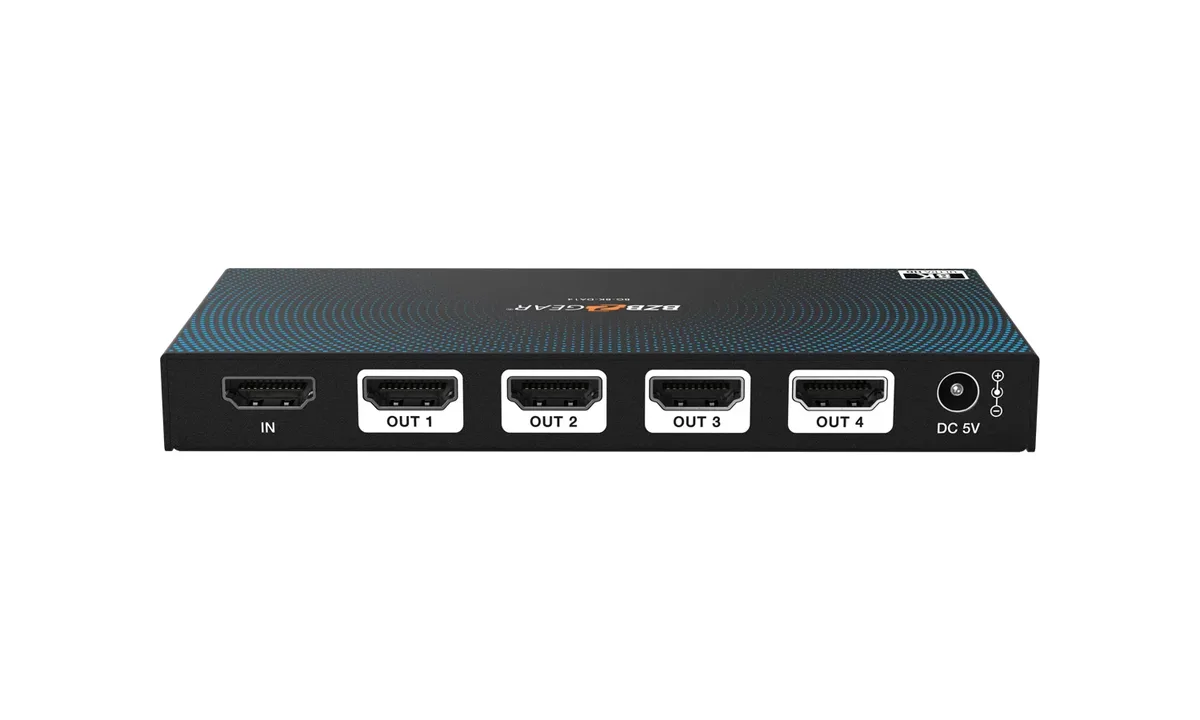

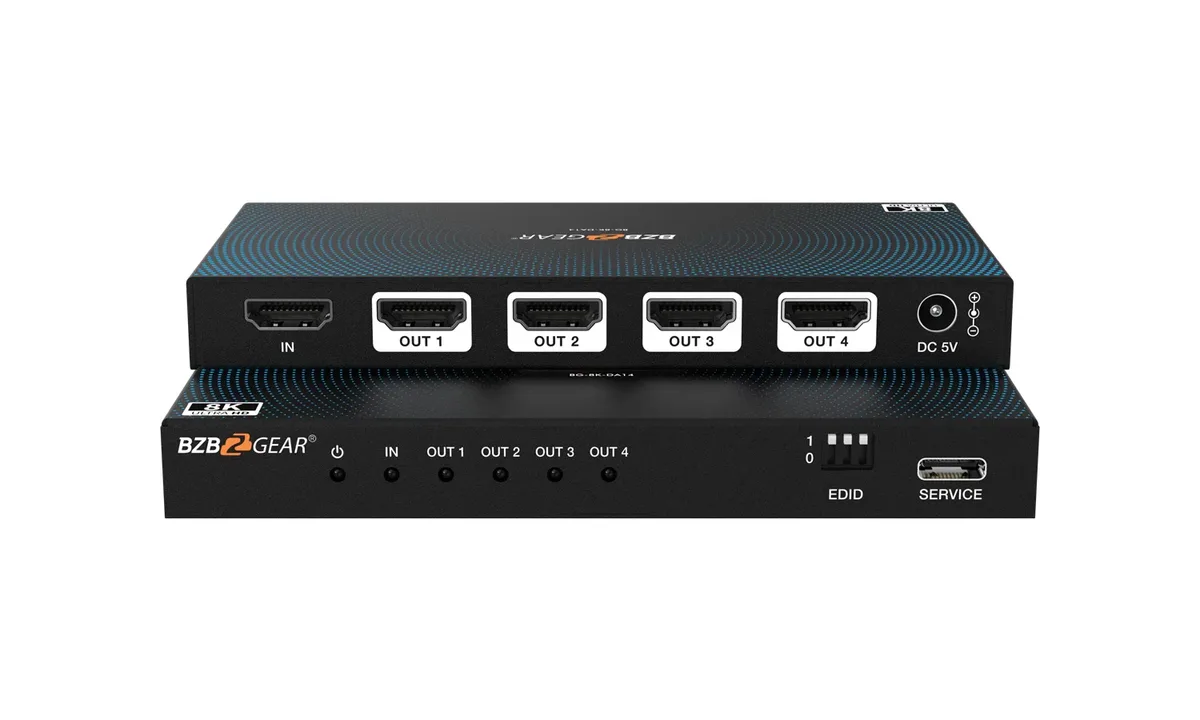

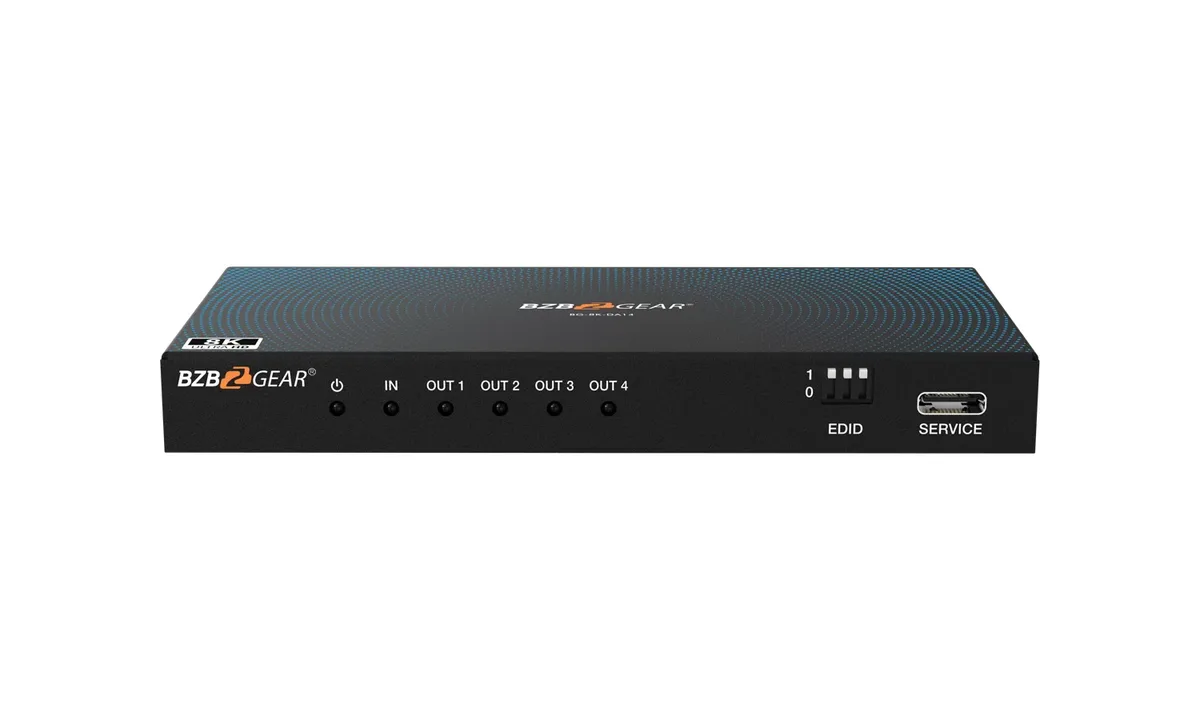

BZBGear BG-8K-DA14 1x4 8K HDMI 2.1 Splitter

The BG-8K-DA14 distributes a single HDMI signal to four outputs at up to 8K60 4:2:0 12-bit, 4K120 4:4:4 12-bit or 1080p240, on 48 Gbps of bandwidth with HDCP 2.3.

Because downscaling happens per output, a wall of mixed 4K and 8K displays all show a picture instead of settling on the lowest common denominator. VRR, ALLM, QMS, QFT and SBTM pass through for consoles, along with HDR10, HDR10+, Dolby Vision and HLG. Firmware updates go in over USB-C.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 1080p240Hz
Input	1 x HDMI IN [Type A, 19-pin female]
Output	4 x HDMI OUT [Type A, 19-pin female]
Audio Formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Depth	8/10/12bit
