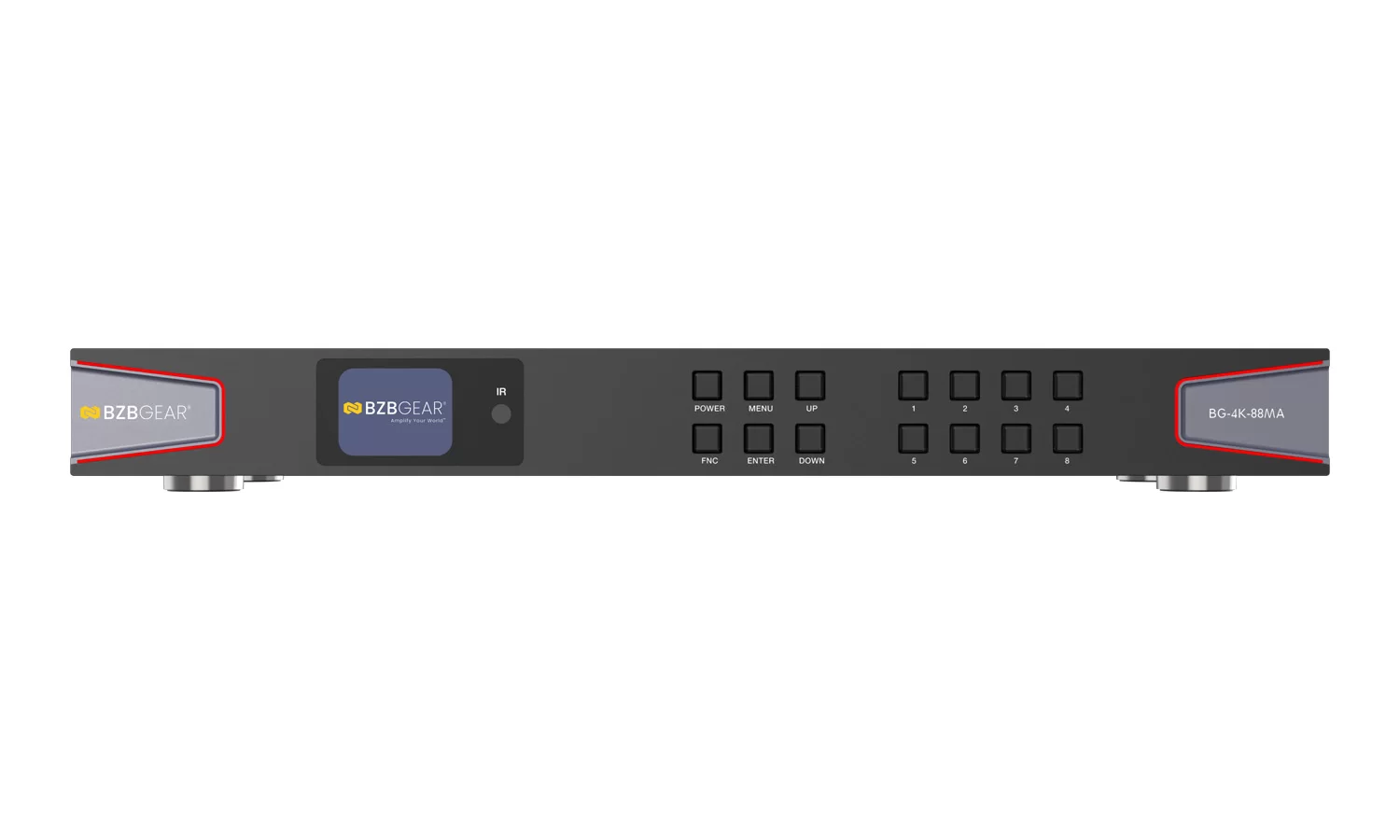

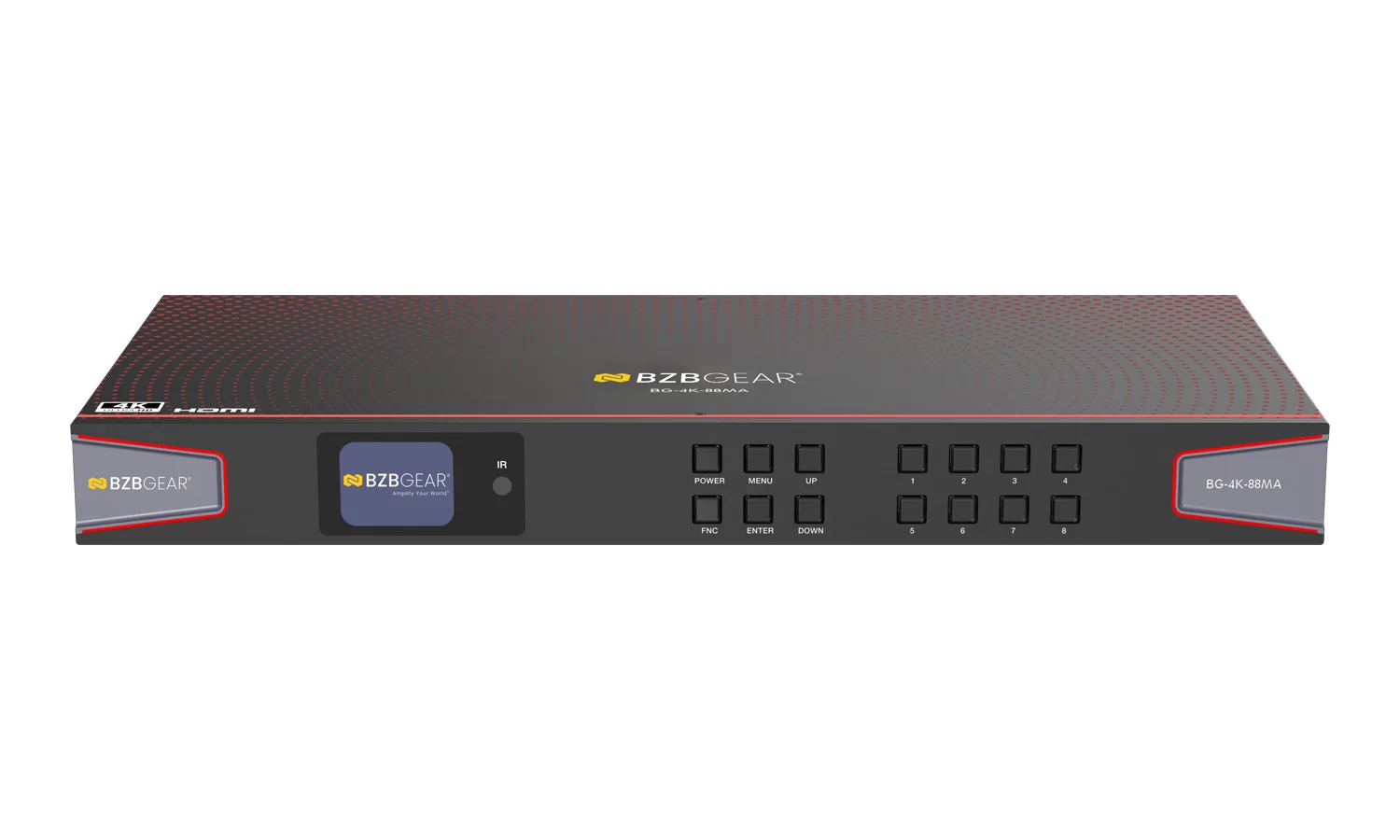

BZBGear BG-4K-88MA 8x8 HDMI Matrix Switcher

The 8K-88MA scales the same idea to eight sources and eight displays, which is the size a sports bar, a lecture theatre or a boardroom suite usually lands on. Every output routes independently at up to 4K60 4:4:4 with HDR, HDR10, HDR10+, Dolby Vision LLM and HLG.

Each output has its own optical and balanced analog audio breakout, so a zone amplifier can take the sound for that screen without a separate de-embedder. Control is front panel, TCP/IP, RS-232 or IR. Full load draw is 52 watts.

HDMI compliance	HDMI 2.0b
HDCP compliance	HDCP 2.2
Video bandwidth	18Gbps
HDR formats	HDR, HDR10, HDR10+, Dolby Vision LLM, HLG
Audio formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: Optical outputs: Up to LPCM/Dolby/DTS 5.1CH Analog Audio Outputs: LPCM 2CH (sample rate 32~192kHz)
Input ports	8x INPUT [HDMI Type A, 19-pin female]

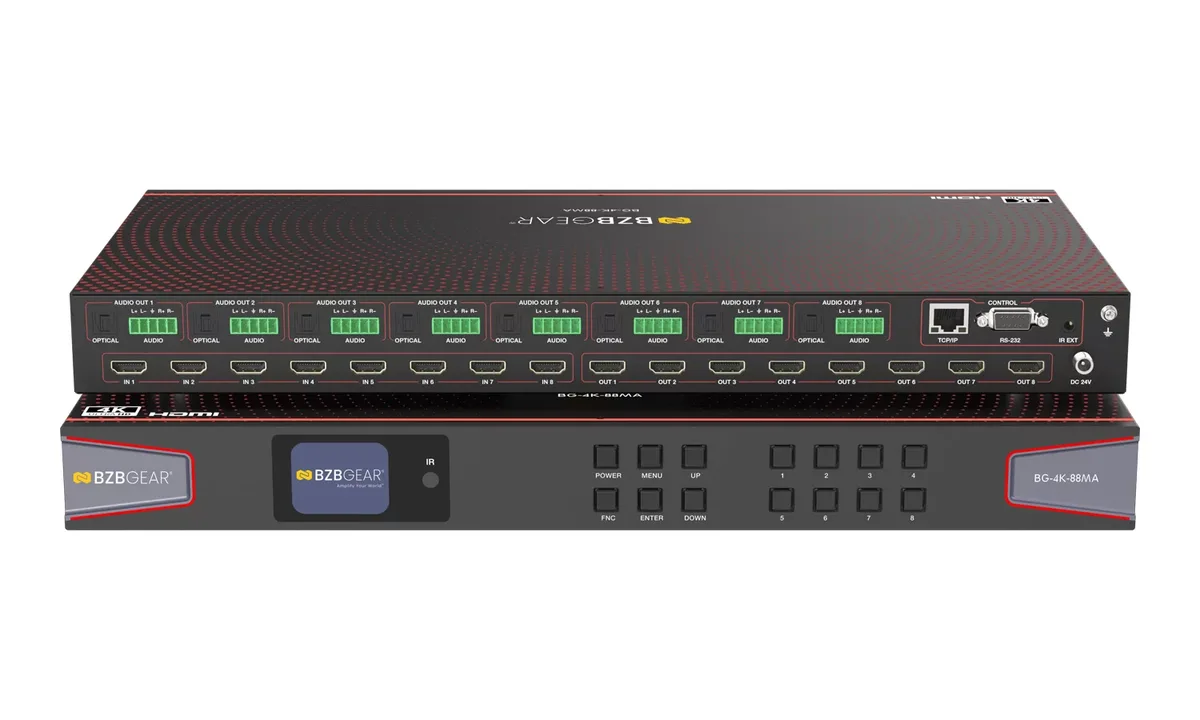

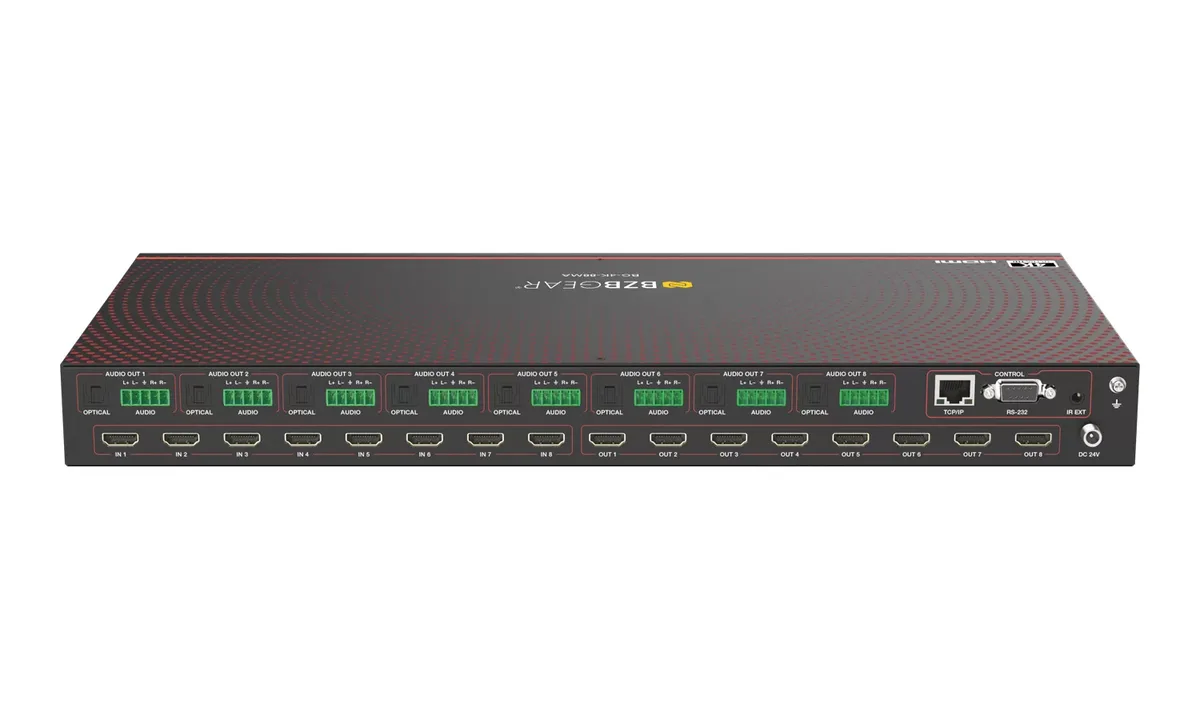

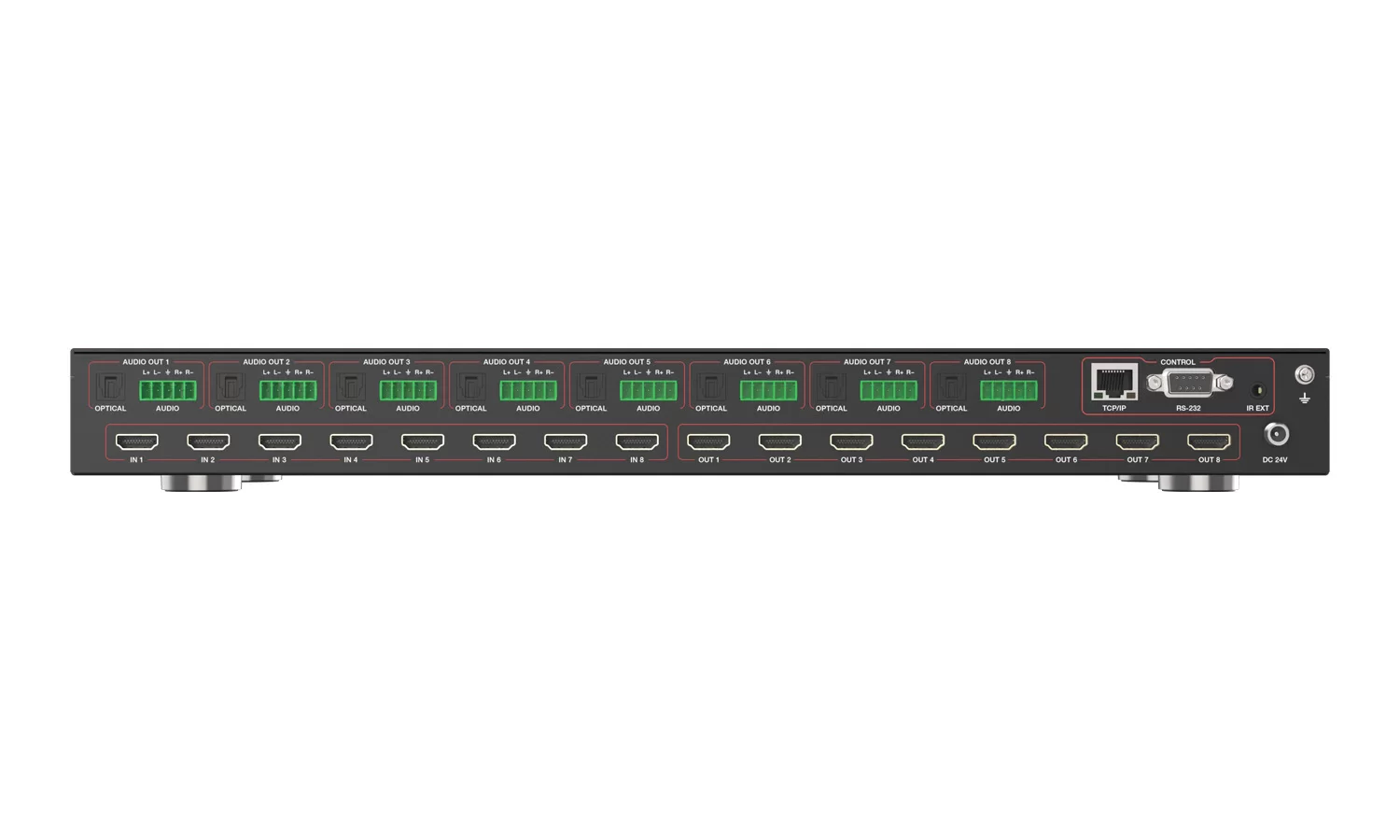

Output ports	8x OUTPUT [HDMI Type A, 19-pin female] 8x OPTICAL AUDIO OUT 8x L/R AUDIO OUT [5-pin phoenix connector]
Control ports	1x TCP/IP [RJ45] 1x RS-232 [D-Sub9] 1x IR EXT [3.5mm audio jack]
Power consumption	Full Load: 52.3W; Stand-by: 2.6W
Dimensions (W x D x H)	17in x 8.1in x 1.8in [440mm x 206mm x 44.5mm]
Weight	5.25 lbs [2.38kg]
