Introducing the exciting new Smart Videohub, the world's first Ultra HD mixed format routers with built in video monitoring and spin knob router control. Smart Videohub includes the latest 6G-SDI or 12G-SDI technology depending on the model, so you can simultaneously connect and route any combination of SD, HD and Ultra HD video, all the way up to high frame rate 2160p60, all on the same router at the same time! You also get revolutionary new visual routing that lets you see your router connections as video on the built in LCD as you scroll the knob to select your routing. Now you can route your video simply by looking at the video!
Smart Videohub is perfect for broadcast, post or live production! Smart Videohub's super compact size means it's perfect for use in large broadcast systems or portable mini racks for live production where cameras, switchers, recording and monitors are all simply connected to Smart Videohub. Now you can avoid messy rewiring because you can connect everything to the router and then quickly change connections from job to job without reconnecting a single cable!
Smart Videohub's beautiful machined aluminum design features new innovative video monitoring control. Now you can visually route video because the built in monitor lets you see live video, crosspoint connection labels and TV formats displayed simultaneously. You can make selections with the spin knob or switch video with the dedicated button panel. Choose from three incredible models! The Smart Videohub 12x12, 20x20 and 40x40 all feature the amazing new control panel, built in power supply, network control and advanced 6G-SDI connections in a compact design. You can even configure all IP settings on the front of the unit without a computer!
Scan through video at lightning speed! Smart Videohub's super fast spin knob control lets you dial though your router cross points while displaying live video combined with custom on screen labels. Scroll order is arranged alphabetically so it's easy to find the crosspoint you are looking for! The spin knob control combined with visual routing is the fastest way to route! Imagine scrolling through your connections while viewing them as live video on the LCD! On screen labels support unicode so they work in non Roman character sets such as Chinese, Japanese, Russian, German, French, Spanish and more. That means if you have labels in Japanese it will appear on the front panel in Japanese exactly the same as it appears on the software control panel on your computer.
Now you can monitor all the live video connected to your Videohub. The built in LCD lets you see your video in virtually every TV format! That means you don't need a separate external monitor because it's built into the front panel of the router itself! You can look at any source or destination and confirm the correct video inputs are being sent to the correct video outputs. Built in monitoring is perfect when space is tight, such as mini racks and broadcast trucks.
When you need larger routers for serious sized facilities, the Smart Videohub range has the options you need. You can select from models with a small 12 x 12 size, all the way up to 20 x 20 and a massive 40 x 40 sources and destinations, all with 6G-SDI technology. For external remote control, Ethernet is included so you can also route from a choice of hardware based control panel for your Mac or Windows computer. For integration into broadcast systems, RS422 control is included and the router supports tri-sync and black burst reference.
All Smart Videohub models feature 6G-SDI connections for working with standard frame rate Ultra HD video, while retaining full compatibility with all of your SD and HD-SDI equipment. You get the perfect quality of SDI video connections with the flexibility to work in any television format you like, as well as 4:2:2 or 4:4:4 color sampling. Even if you're not running in Ultra HD now, you can still work in SD or HD today and be ready for Ultra HD when you need it.
The advanced technology Smart Videohub 12G model gives you all of the same great features and benefits of 6G-SDI, however its 12G-SDI connections run at twice the speed so you can connect equipment that works with high frame rate Ultra HD 2160p60 video over a single cable! High frame rate Ultra HD is becoming the video standard of the future because it allows broadcasters to use the same 60 fps workflow for fast action live production used in HD, but get the higher quality of Ultra HD. The amazing sharpness and fluid motion of 60 frames per second Ultra HD represents the cutting edge of broadcasting and the 12G-SDI model easily handles it and all other SD, HD and Ultra HD formats, all on the same router at the same time. Be ready for the future with 12G-SDI.
Introducing the incredible new Smart Videohub 12G 40x40, the world's most advanced technology router for all SD, HD and Ultra HD video formats, all the way up to 2160p60! Ultra HD is being adopted quickly so you never know when you are going to need to connect 12G-SDI devises into your systems. Smart Videohub 12G ensures it will always be ready to route signals from the latest switchers, cameras, decks, monitors and more. Because Smart Videohub12G 40x40 features multi-rate 12G-SDI on BNC SDI connectors, it works with all of your existing SD and HD gear and is fully compatible with the latest high frame rate Ultra HD gear. That means you can drop it in to replace your existing router today without having to rewire your entire facility! Smart Videohub 12G gives you the confidence to route any SD, HD or Ultra HD signal from any device today and in the future!
When you need to cleanly switch between video sources to monitors or directly to air, you need timed or genlocked signals. If you cannot guarantee perfectly timed source signals but you still need to clean switch then Smart Videohub CleanSwitch 12x12 is the special model of Videohub that features resynchronization on all inputs so you get perfect clean feeds every time! Smart Videohub CleanSwitch 12x12 has all of the same great features of Smart Videohub 12x12 plus includes full resynchronization on every input so the router automatically re times all inputs to ensure clean, glitch free switching between router cross points. Sources of different resolutions and the same frame rate can even be output directly to air for smooth, cuts only production. Just like all Smart Videohub models, you can control Smart Videohub CleanSwitch directly from the front panel or remotely over ethernet using the Videohub Control Panel software on a Mac or PC.
Smart Video includes multi format technology so you can simultaneously connect SD, HD and Ultra HD equipment all on the same router at the same time. SDI products from Blackmagic Design will automatically detect the SDI video format when it changes and instantly switch standards. This means you can seamlessly work in NTSC and PAL SD, 720 and 1080 HD and even 2160 Ultra HD at any frame rate, all at the same time on the single router! Multiple Video Format Sources Multiple Video Format Destinations Multiple Video Format Sources Ultra HD Signal In 1080p Signal In 720p Signal In NTSC Signal In Ultra HD Signal Out 1080p Signal Out 720p Signal Out NTSC Signal Out
Get amazing images that are so detailed it's like being there! With Ultra HD you get 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size. The new Smart Videohub easily handles the enormous data rates of full resolution Ultra HD video as well as SD and HD video. Ultra HD is the broadcast standard of the future and production of 4K content is accelerating! Smart Videohub's advanced 6G-SDI multi format connections are compatible with your existing SD-SDI and HD-SDI equipment as well as the latest Ultra HD gear.
If you want to control your Smart Videohub anywhere then the included free Videohub software control for Mac and Windows is the perfect solution. Videohub control software has a great looking interface with amazing icon buttons. When used with new touchscreen PCs, you get a fantastic large screen XY control panel! You can even download the new software control panel for Apple iPad® that lets you use it as a fantastic, low cost touch screen router panel, it's free on the App Store!
For dedicated remote router panels, you can choose between Videohub Smart Control and Videohub Master Control. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels!
Customize your control options for any installation! Videohub lets you create your own custom router control with the free software developer kit. As a developer, you can download the Videohub SDK for sample code and control protocol information. You'll get all the information you need to create your own hardware or software remote control. You can also use the RS-422 protocol to control Videohub as a slave device for router crosspoint switching, or even use telnet instructions from your computer.
SDI Video Output
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Black burst and Tri-Sync for SD, HD and 4K.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
USB or Ethernet.
Front Panel Router Control
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
SD Format Support
625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656 and ITU-R BT.601.
SDI Video rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4 10 bit.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Built-in LCD for video and menu settings.
Router control included free for Windows™ and Mac OS X™.
Internal Software Upgrade
Via included updater application.
Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8.
Power Fail Protection
Router connections preserved and restored instantly at power on.
IEC power cable required. 90 - 240V AC input.
1 rack unit size. Less than 6 inches deep.
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing

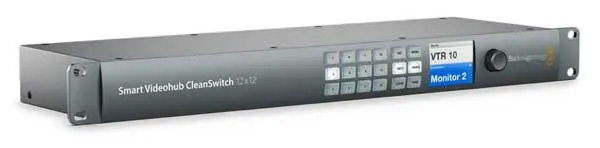

Smart Videohub CleanSwitch 12x12
Software SD card
Warranty 12 Month Limited Manufacturer's Warranty.
