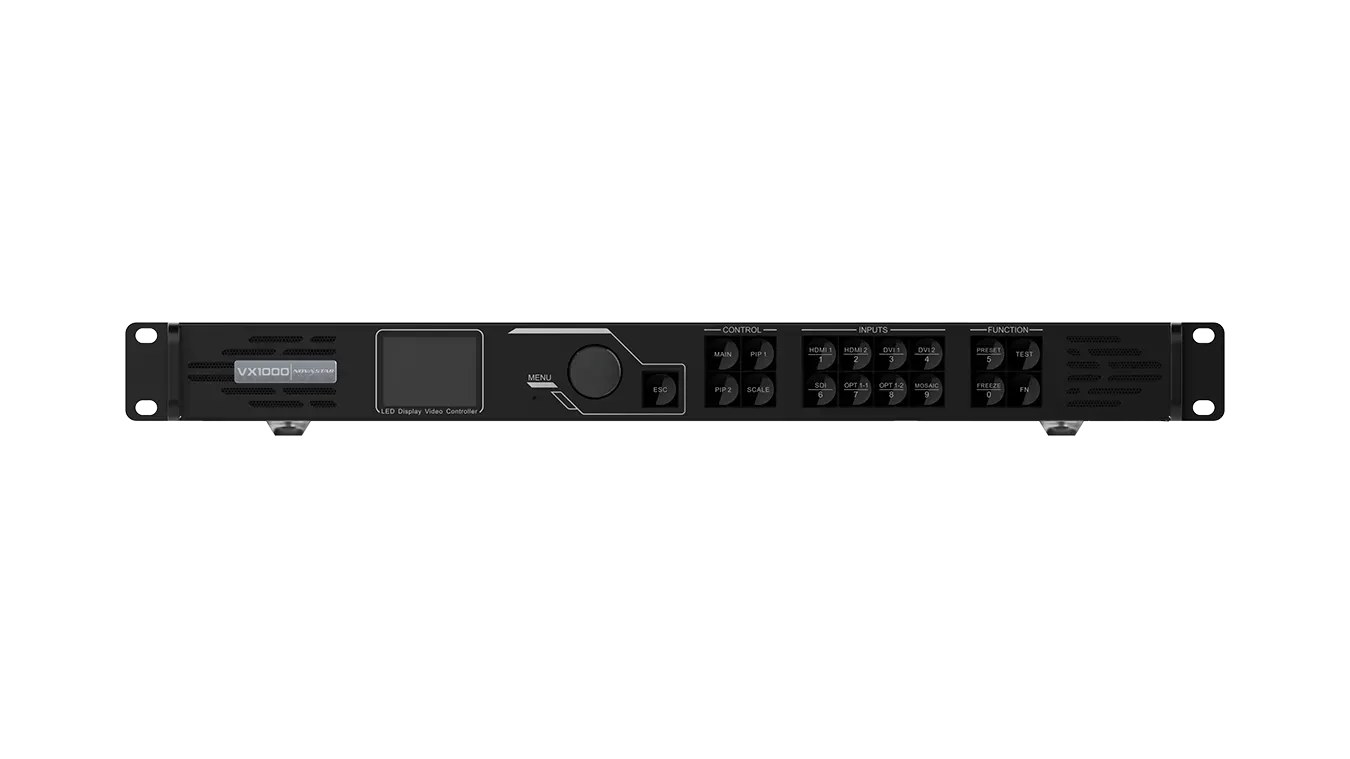

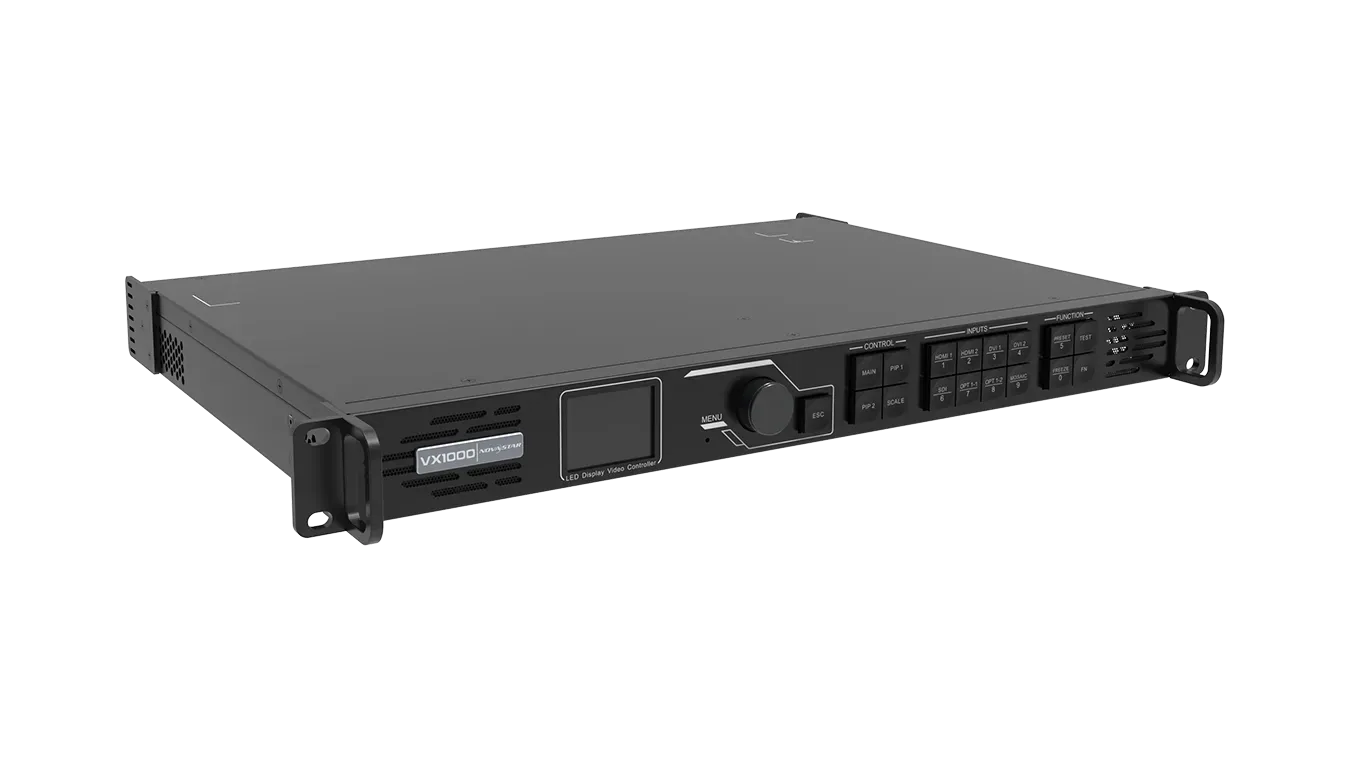

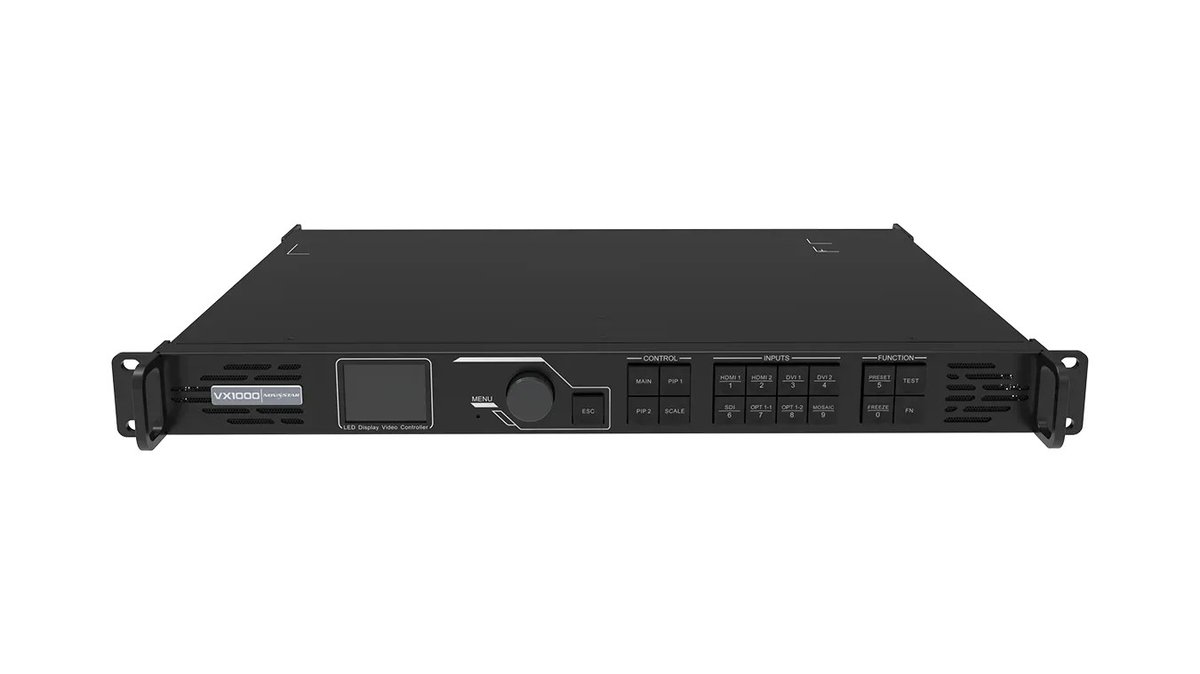

Blizzard Lighting NovaStar VX1000 LED Video Controller

The NovaStar VX1000 combines video processing and video control in a single box, with 10 Ethernet ports and support for video controller, fiber converter, and bypass working modes. One unit drives up to 6.5 million pixels, with a maximum output width and height up to 10,240 by 8,192 pixels, sized for ultra-wide and ultra-high LED screen builds.

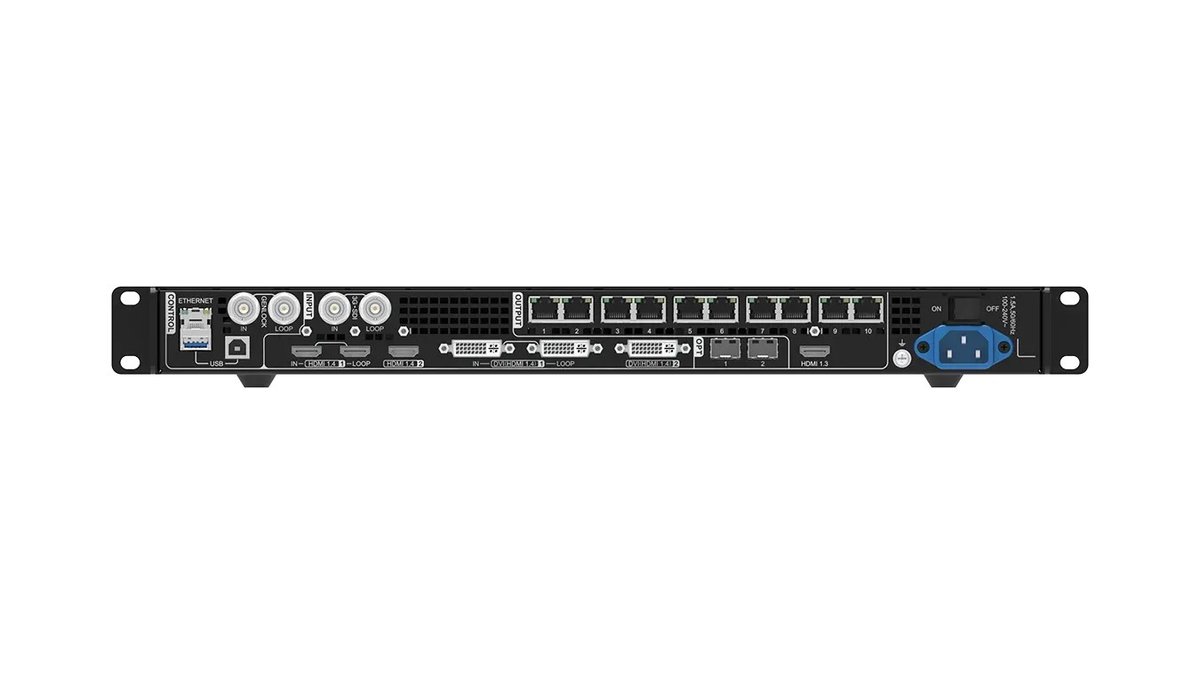

It receives a variety of video signals and processes high-resolution 4K/60Hz images, with stepless output scaling, low latency, 3D support, and pixel-level brightness and chroma calibration. Connections include 2x HDMI 1.4 with loop-in, 2x DVI (HDMI 1.4) with loop-in, 1x 3G-SDI with loop-in, 10x Gigabit Ethernet outputs, 2x 10G optical ports, an HDMI monitor output, an RJ45 PC Ethernet port, USB Type A and Type B ports, and genlock in/loop.

  • Assembled Dimensions2 in x 19 in x 13.3 in, 8.9 lbs, 3 year warranty
  • Dimensions2" x 19" x 13.3"
  • Loading Capacity6.5 million pixels
  • Max OutputUp to 10,240 x 8,192 pixels
  • Function2-in-1 video controller and processor
Function2-in-1 video controller and processor
Loading Capacity6.5 million pixels
Max OutputUp to 10,240 x 8,192 pixels
Layers3 x 4K x 1K @ 60 Hz
Connectors2x 1.4 + loop-in, 2x DVI (HDMI 1.4) + loop-in, 1x 3G- + loop-in
Networking10x Gigabit Ethernet outputs, 2x 10G optical ports, 1x RJ45 (PC)
Also1x HDMI 1.3 monitor output, USB Type A and Type B, in + loop
Assembled Dimensions2 in x 19 in x 13.3 in, 8.9 lbs, 3 year warranty
Dimensions2" x 19" x 13.3"
