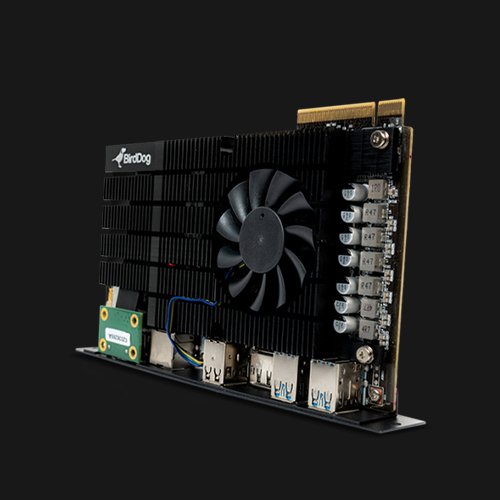

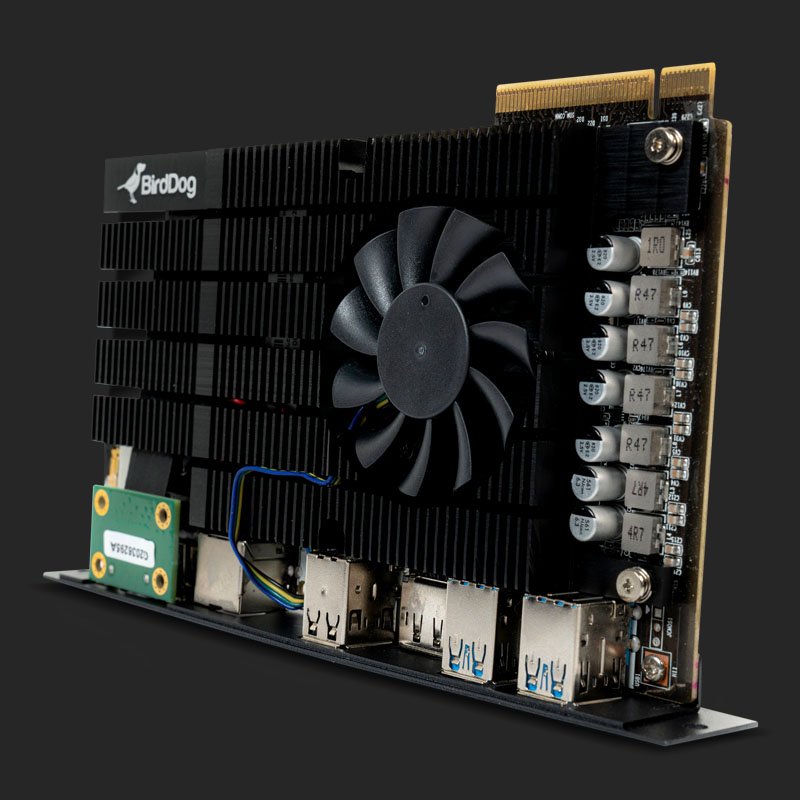

BirdDog SDM M1 NDI Display Module
The SDM M1 drops NDI distribution directly into the screen. Built on the Intel SDM-L form factor, the module slides into any SDM-compatible flat panel display and turns it into a full NDI sender and receiver, so a signage or presentation wall gets its content over the network instead of through a wall box or a patch panel. BirdDog OS runs the module, with Crestron control and a RESTful API for automated rooms.
The M1 handles 4K60 down through 720p, decoding both full-bandwidth NDI and the long-GOP NDI HX2 codec, and it carries 2-channel 24-bit embedded audio at 48 kHz plus a 3.5mm mic/headset jack for local monitoring. Network connectivity is a single Gigabit Ethernet port. This listing covers the HDMI-input and DisplayPort-input variants; pick the connector your source needs above.
| Type | NDI sender/receiver module, Intel SDM-L form factor |
|---|---|
| Video Formats | 4K 2160p 25/29.97/30/50/59.94/60, 1080p, 1080i, 720p |
| Video Codec | NDI (high bandwidth) and NDI HX2 (h.264/HEVC long-GOP) |
| Audio | 2-channel 24-bit embedded, 48 kHz, plus 3.5mm mic/headset in/out |
| Network | Gigabit Ethernet RJ45 |
| Control | BirdDog OS, Crestron control, RESTful API |
| Dimensions | 195 x 112 x 25 mm |
| Part Numbers | BDSDM1-HDMI / BDSDM1-DP |
