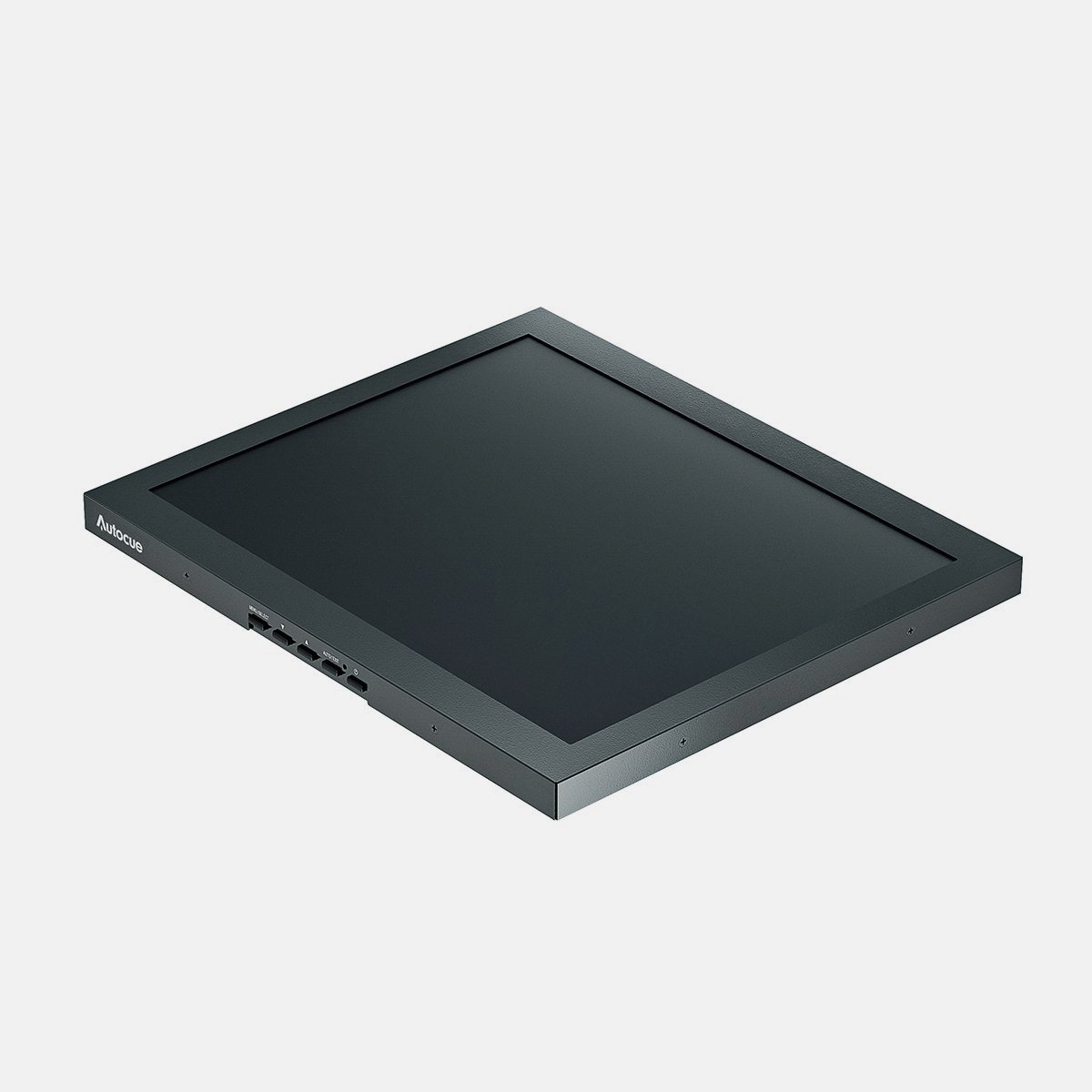

Autocue P7008-0953 17-inch Pioneer Prompt Monitor
The 17-inch Pioneer monitor runs at 350 nits, which is legible in most controlled environments and is the sensible choice when the prompter never leaves a lit studio. It is the same metal-housed panel as its high-brightness sibling with the same connector set, so the decision between them is purely how much ambient light the screen has to fight.

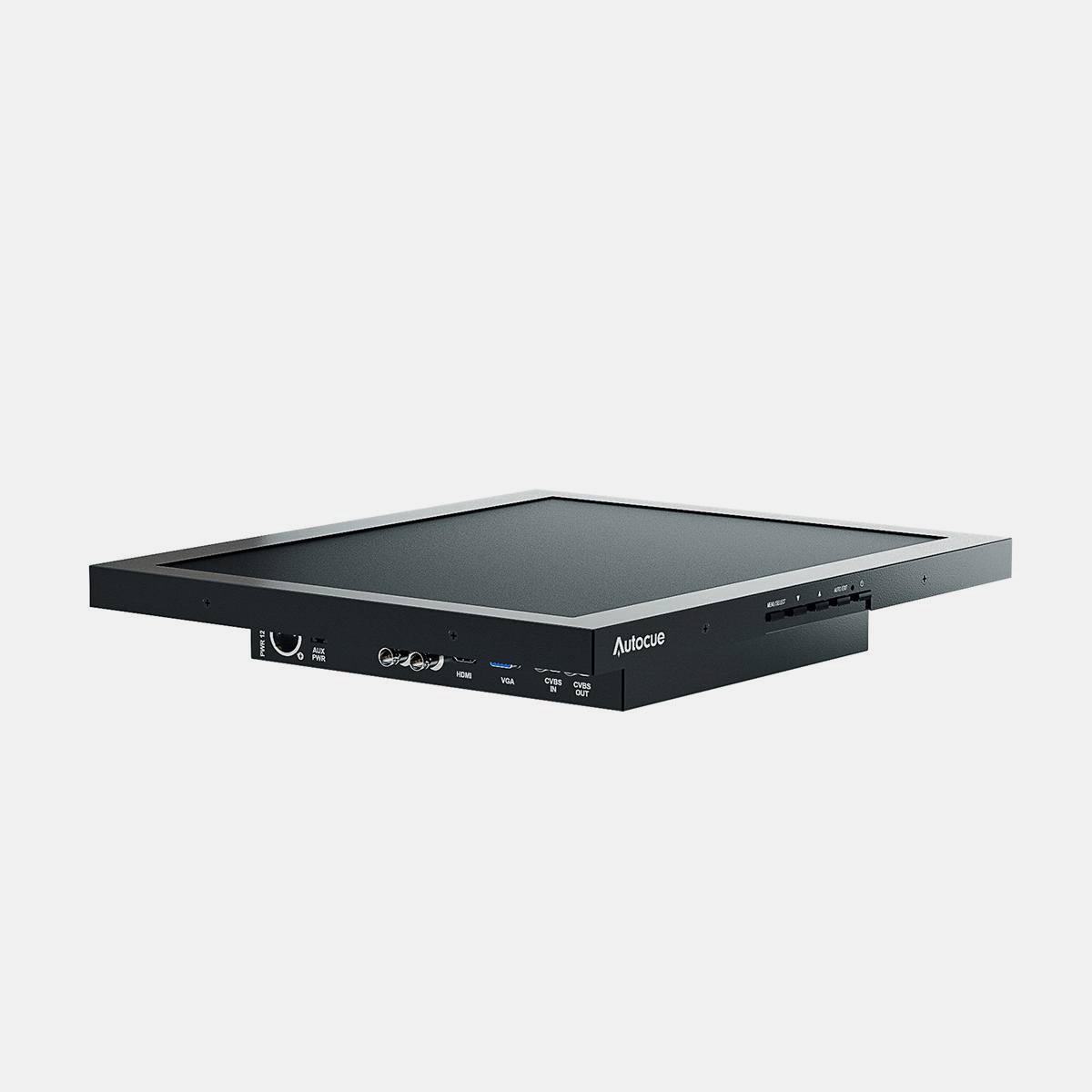

Inputs are 3G/HD/SD-SDI with looped output, CVBS with looped output, HDMI and VGA at 1280 x 1024, and image flip is available horizontally and vertically. Power draw is 19W maximum from a 12V supply, noticeably less than the high-bright version. This is a monitor-only package with the PSU and a 10m HDMI cable; add an Autocue mounting kit for a complete teleprompter, or the P7011-1006 Legacy Mounting Adaptor to fit an older Autocue prompter.
| Monitor Size | 17" |
|---|---|
| Brightness | 350Nits |
| Resolution | 1280x1024 |
| Contrast | 1000:1 |
| Aspect Ratio | 4:3 |
| Inputs | 3G/HD/SD-SDI, CVBS, HDMI, VGA |
| Image Flip | Horizontal & vertical |
| Power Consumption | 19W max |
| Monitor Dimensions | 38.2 cm x 32.9 cm x 56 mm / 15.04 in x 12.95 in x 2.2 in |
| Power Supply | 110-240V AC 50/60Hz input, 12V DC, 5A max. output |
