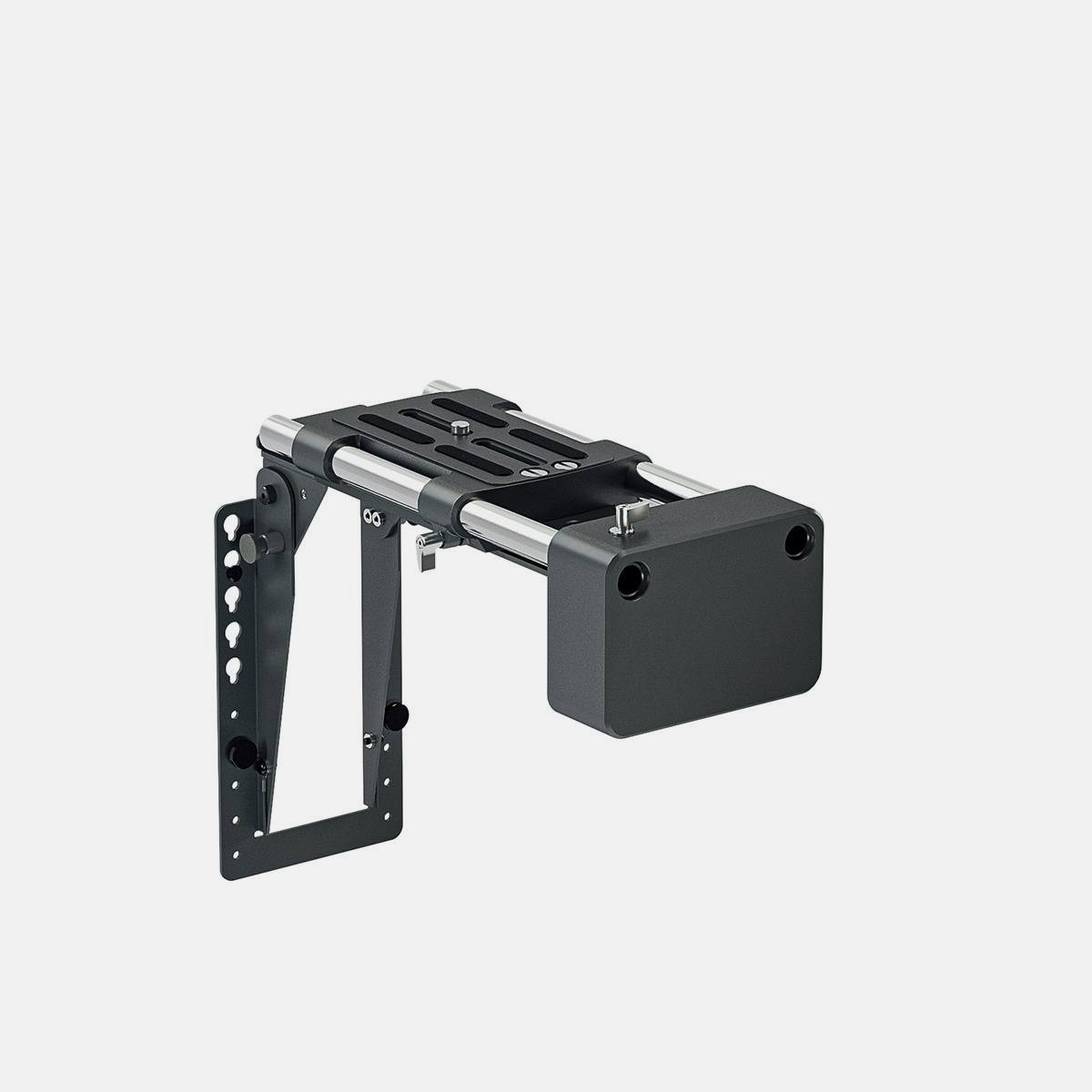

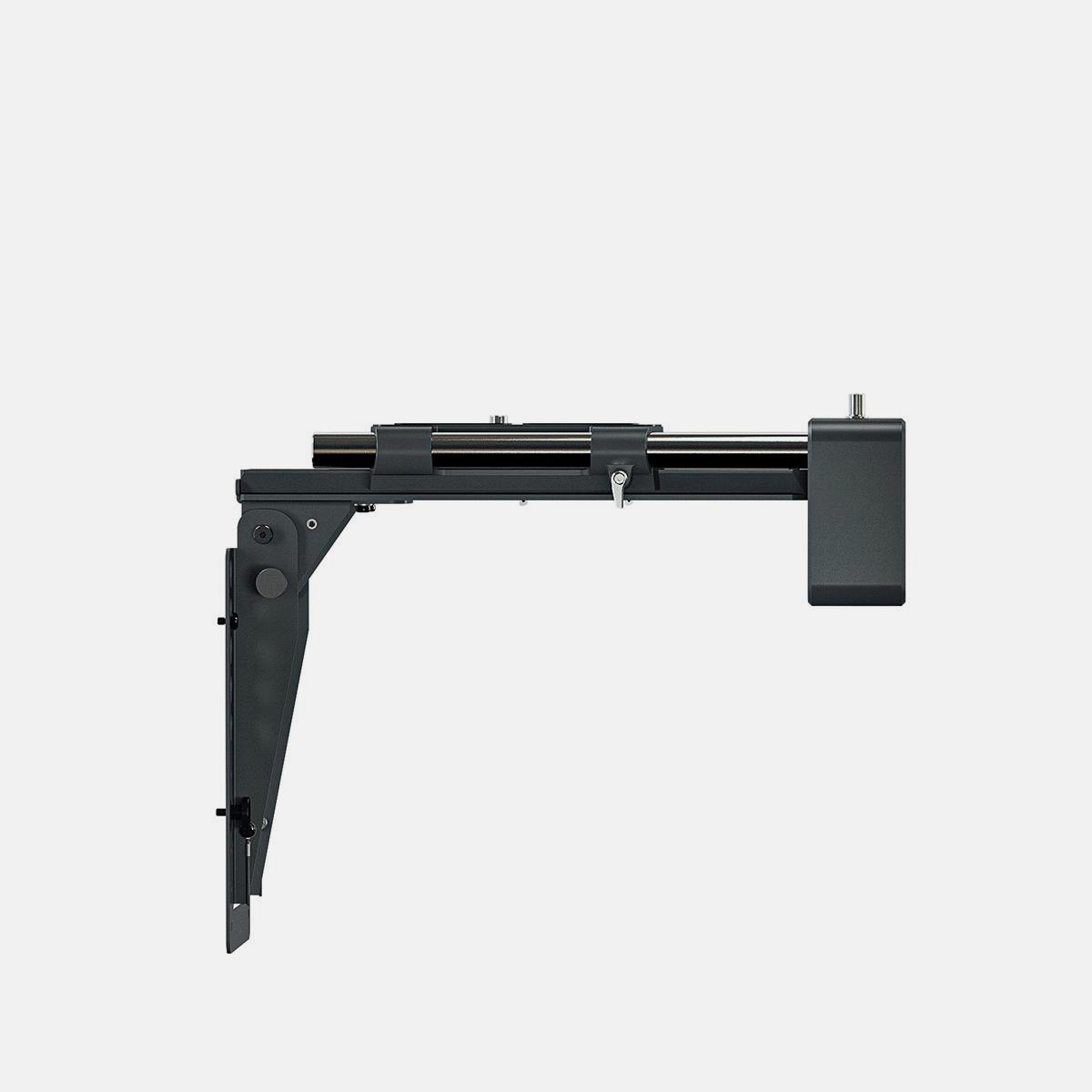

Autocue P7011-0903 Pioneer Direct View Mounting Kit
Not every job wants a through-the-lens prompter. This kit positions a monitor directly beneath the camera and lens, so the presenter reads it with a small drop in eyeline instead of looking through glass. It suits interview setups, corporate shoots and any rig where a hood would be in the way or the presenter is not addressing the lens straight on.
It takes any Autocue monitor up to 24 inches at 16:9 and 5 kg on VESA100, with five fixing positions at 20mm pitch and two tilt positions plus stowed, so the screen can be set for the presenter's height and folded out of the way for a lens change. Rail fixings are 3/8"-16 with optional 1/4"-20 inserts. Supplied with the mounting rail, camera carriage, monitor bracket, 19mm rod set and a 5 kg counterweight. The same kit builds a talent reference monitor position.
| Max Monitor Size | 24" 16:9 widescreen |
|---|---|
| Max Monitor Weight | 5 kg / 11.02 lb |
| Monitor Fixing | VESA100 |
| Monitor Fixing Positions | 5 (20mm pitch) |
| Tilt Positions | 2 (plus stowed) |
| Rail Fixings | 3/8"-16, with optional 1/4"-20 inserts |
| Counterweight | 5 kg / 11.02 lb |
| Mounting Dimensions | 12 cm x 25.3 cm x 35.4 cm / 4.72 in x 9.96 in x 13.94 in |
