Audix AP62OM5 Dual-Channel True Diversity Handheld Wireless System

The Audix AP62OM5 is a Performance Series analog UHF wireless system built around the Audix OM5 handheld dynamic. The AP62 is two true-diversity channels in a single rack space. Each channel has its own pair of tuners across the full 64 MHz band with 207 pre-coordinated frequencies, and up to 12 systems can run together. A rack kit with BNC cables for front-mounting the antennas is included.

The OM5 has been one of the most respected handheld dynamics on the market since the mid-1990s, on stage, in studios and for broadcast. It is known for clarity, feedback resistance, and the ability to handle SPL in excess of 144 dB without distortion.

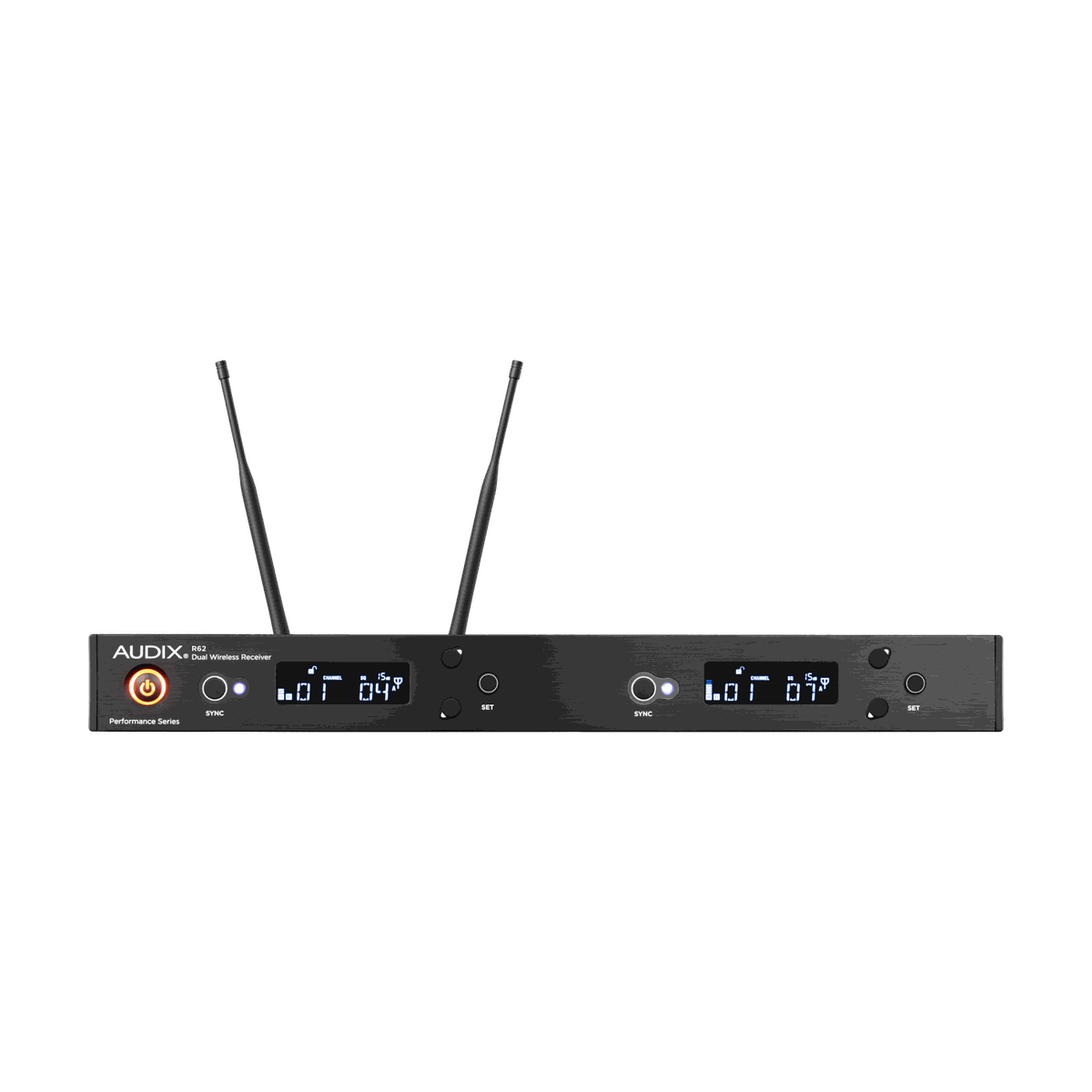

Receiver	R62 dual-channel, dual tuner true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 12
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

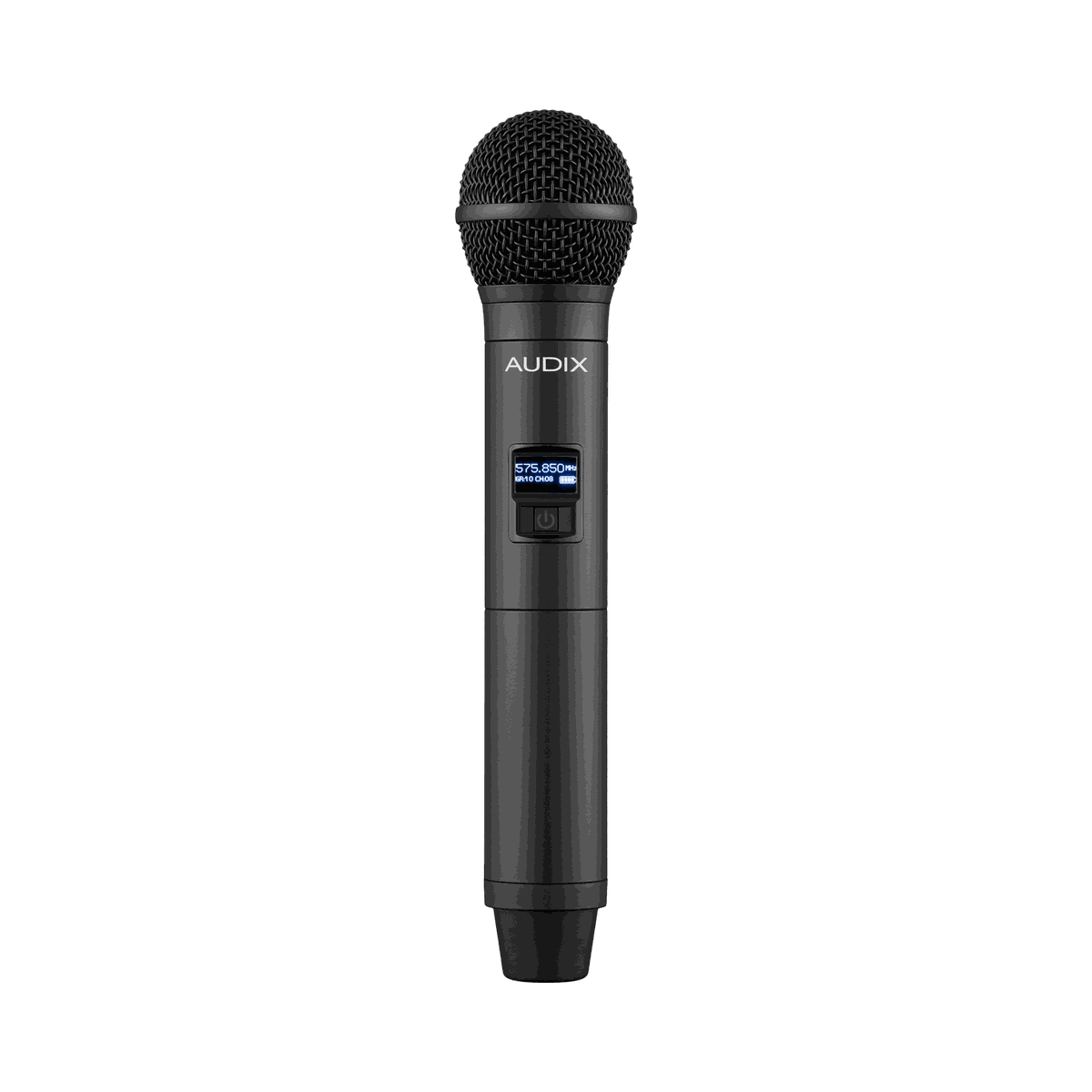

Transmitter	H60 handheld, 53 mm diameter x 265 mm, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
