Audix AP42C2BP Dual-Channel Combo Wireless System

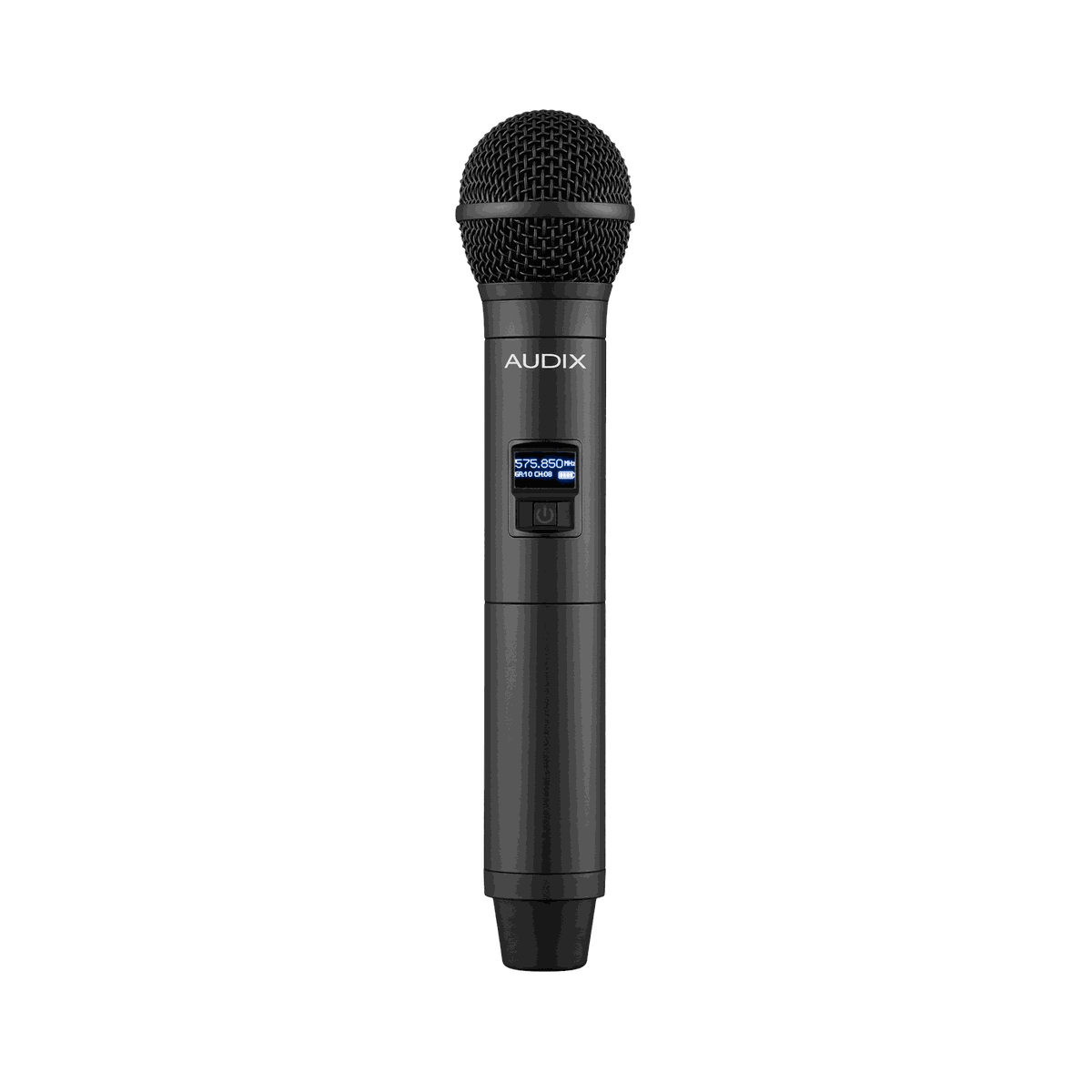

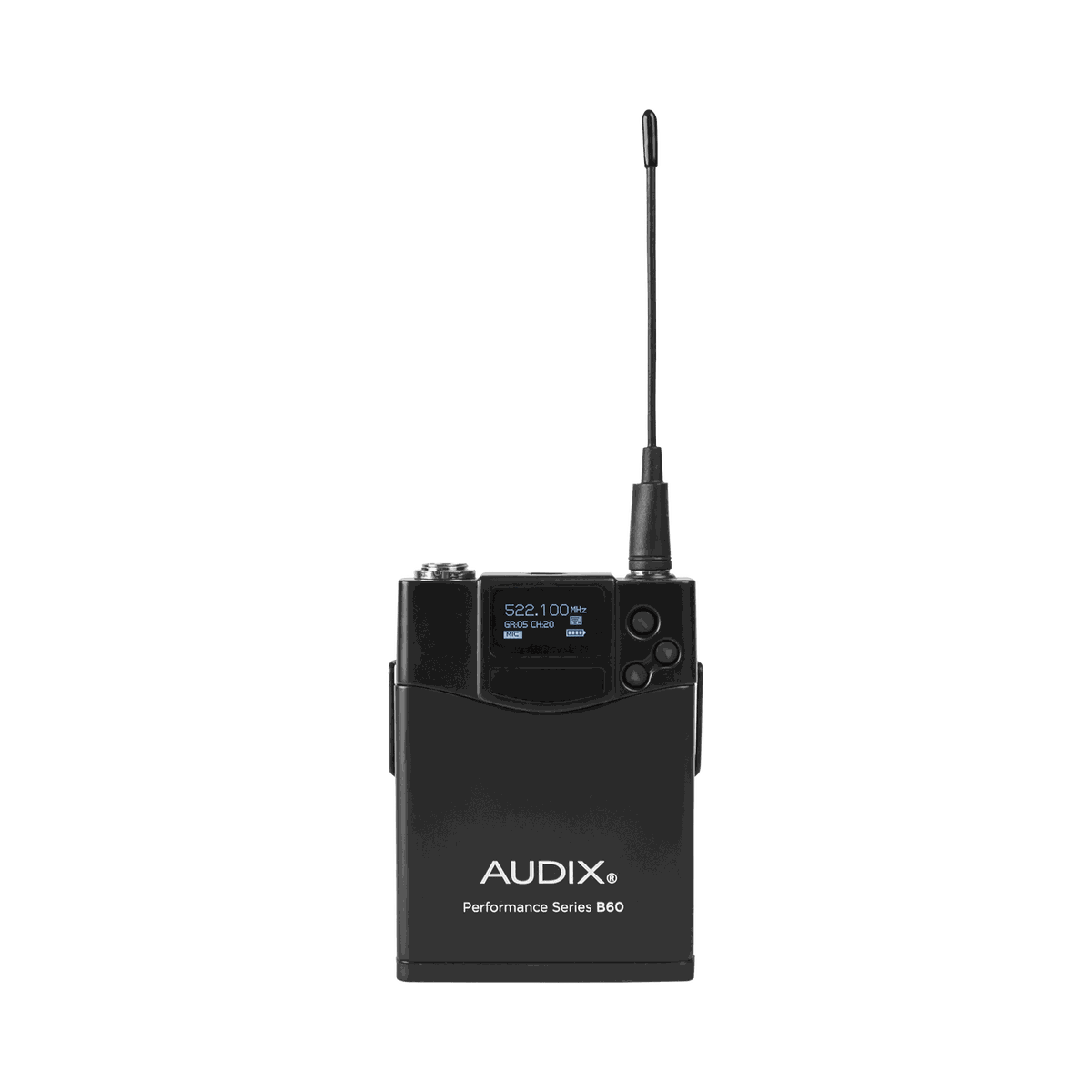

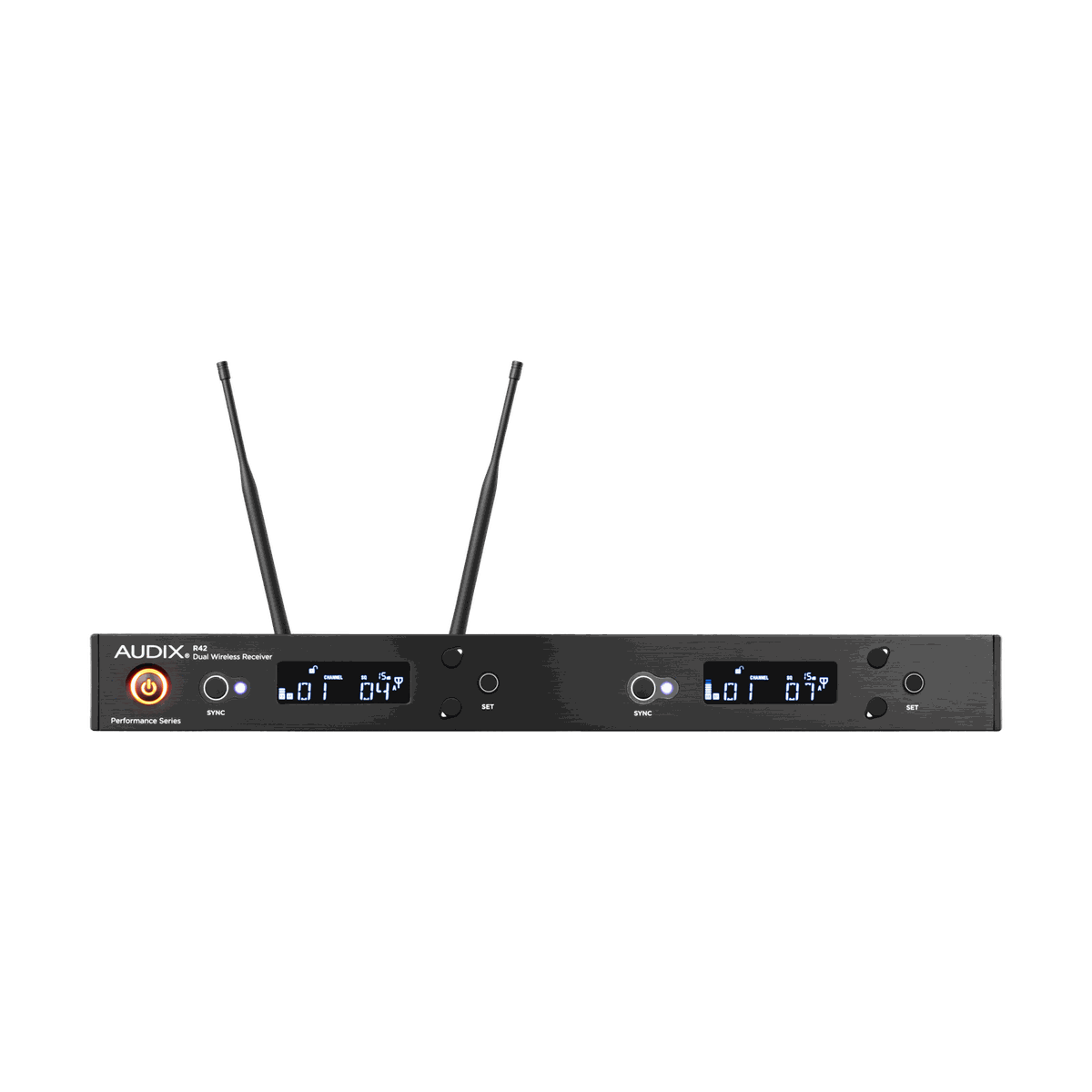

The Audix AP42C2BP is a Performance Series analog UHF wireless system built around an OM2 handheld transmitter and a B60 bodypack, on two channels. The AP42 puts two independent channels in one rack space. The R42 is a dual-channel antenna-diversity receiver covering a 32 MHz window with 106 pre-coordinated frequencies, and up to 8 systems can operate together. Auto scan and infrared sync set each channel up in seconds.

Both transmitters run at once on the dual-channel receiver, and the bodypack channel is left open for whichever lavalier, headworn, or instrument microphone the job calls for.

ReceiverR42 dual-channel, single tuner antenna diversity
Frequency RangeA: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
Switchable Frequencies106 pre-coordinated frequencies
Simultaneous SystemsUp to 8
Audio Frequency Response45 Hz - 18 kHz
Signal-to-Noise Ratio105 dB at 30 kHz deviation (A-weighted)
Output ConnectorsXLR balanced and 1/4 in unbalanced
TransmittersH60 handheld and B60 bodypack, 10 mW / 30 mW RF
Transmitter Battery2 x AA each, approximately 14 hours
